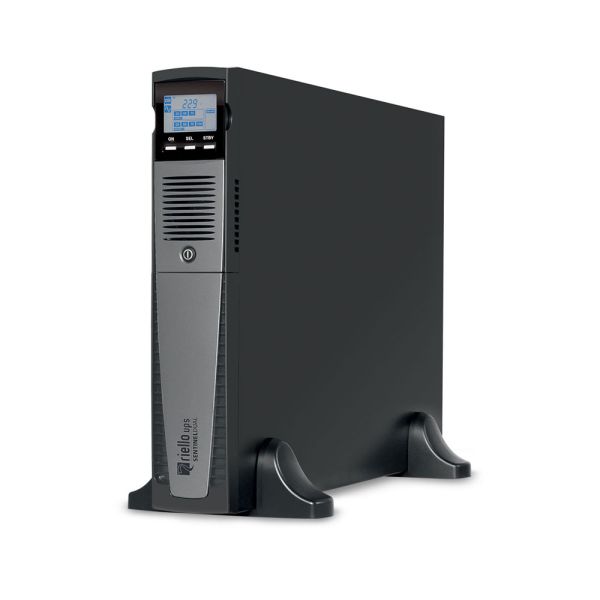

Riello Sentinel Dual (SDH 1500) 1500VA 230V Online UPS, 2U Rack/Tower

Free Express Delivery Over £99*  (1 - 2 Days)
Availability: In stock
SKU:
SDH1500
MPN:
SDH 1500
£585.95 £488.29
The Sentinel Dual UPS by Riello features a versatile 2U rack/tower format and online double-conversion power protection for critical servers, data storage systems, sensitive medical systems, industrial machinery, and emergency lighting systems. It is also possible to swap out the batteries without having to turn off the UPS or interrupt the load (Hot Swap), which ensures continuity of critical loads.
Free Express Delivery Over £99*  (1 - 2 Days)
Seen this product cheaper elsewhere? Let us know
Enter the details of the other product you found

The Sentinel Dual UPS by Riello features a versatile 2U rack/tower format and online double-conversion power protection for critical servers, data storage systems, sensitive medical systems, industrial machinery, and emergency lighting systems. It is also possible to swap out the batteries without having to turn off the UPS or interrupt the load (Hot Swap), which ensures continuity of critical loads.

The Sentinel Dual delivers reliable power to edge applications with its high power density, simple plug and play installation, and intuitive LCD display panel and user interface. Modern real-time controls automatically alter fan speed based on load. This keeps the UPS's noise level below 40 dBA, allowing you to operate uninterruptedly.

An emergency function assures the operation of emergency systems such as emergency lighting, fire detection and extinguishing systems, and alarms. When the main power fails, the inverter starts powering the loads gradually (Soft Start) to avoid overload. For medium-voltage coils, Sentinel Dual can be installed in transformer rooms. It can be used to power these coils.

Battery Replacement - 3 x FIAMM 12FGH36

For a longer runtime, try the SDH 2200.

Features & Benefits:

  • Output power capacity: 1350 Watts / 1500VA
  • 3-minute backup time at full load
  • 2U Rack Height
  • Double conversion topology
  • Monitors and controls voltage and frequency
  • With a 0.9 power factor, it protects more devices
  • Handles non-linear loads, perfect for Blade servers
  • Compact design, perfect for Edge applications
  • Simple plug and play installation
  • Versatile rackmount or freestanding tower format
  • ECO and Smart Active modes reduce power consumption
  • Emergency function
  • Low noise level
  • Fully configurable using software
  • 1 optional communication card slot
  • 1 USB port and 1 serial port
  • Five-year warranty
  • Output Connections - 8 IEC C13 (10A) sockets
  • Input Connections - 1 IEC C14 (10A)

Please Note: Rack Rail Kit is sold separately

Input

Rated power1500 VA
Voltage220 / 230 / 240 V
Voltage tolerance230 V ±20%
Frequency50 / 60 Hz ±5
Frequency tolerance50 Hz ±5% / 60 Hz ±5%
Power factor>0.98
Current distorsion=7%

By Pass

Voltage tolerance200 / 253 V
Frequency toleranceFrequency selected (from ±0.5 Hz to ±5 Hz configurable)

Output And Inverter Output

Rated power1500 VA
Active power1350 W
Crest factor (Ipeak/Irms)3 : 1
WaveformSinusoidal
FrequencySelectable: 50 Hz or 60 Hz or self-learning
Voltage distortion with non-linear load≤3.5%
Voltage distortion with linear load<2%

Overload Times

Load = 150%0.5 sec
Load = 125%4 sec.

Batteries

TypeVRLA AGM maintenance-free lead based
Typical recharge time2-4 h

Environmental

ColorBlack
CommunicationUSB / DB9 with RS232 and contacts / Slot for communications interface
Accessories providedPower cable, serial cable, USB cable, safety manual, quick start guide
Surge capability300 J
Line-Interactive/Smart Active efficiency98%
Noise (at 1 m)<40 [bBA] (ECO Mode)
Operating temperature0 °C - +40 °C
Relative humidity5-95% non-condensing
StandardsEuropean directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111

Data

Weight18 kg
Dimensions (h w d)(T- 450x875x425) (R- 2Ux19inx425) mm
