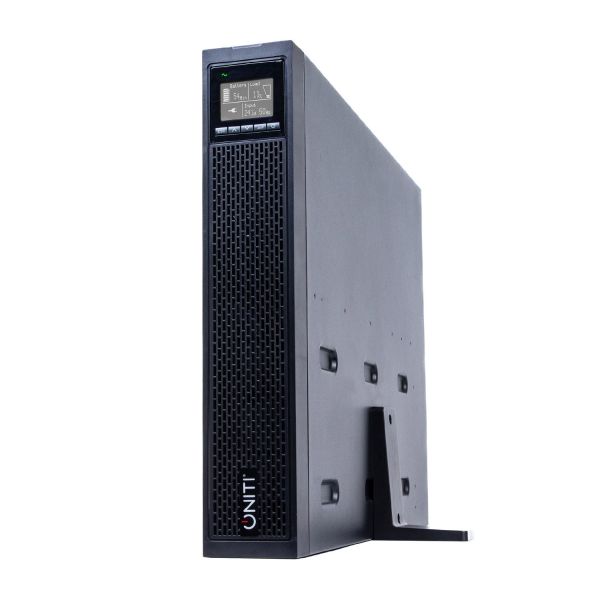

The Uniti Power Symphony UPS series protects small to medium-sized data centres, IT rooms, and mission-critical infrastructure with energy-efficient power. Protected applications include small to medium-sized office equipment, PCs, servers, networking devices, IPS, CCTV, door entry systems, telecoms, and POS. This dependable UPS series includes a high power density, true online double-conversion technology, future-proof connectivity, and seamless cloud integration. Symphony is an excellent choice for IT and facilities managers who are concerned about rising energy costs and are looking for next-generation power protection solutions.
Symphony has a unity power factor (kVA = kW) and delivers more power than other comparable UPS solutions while saving the most in terms of power and cooling costs. Symphony can monitor and measure energy consumption down to the outlet group level using the user-friendly LCD panel or Uniti Power software. Symphony works with the top virtualization environments and cloud orchestration platforms because it has an optional network card and the Uniti Power software suite.
Features & Benefits:
Please note; SPYRAIL1-3 rack-mounting kit sold separately.
*6-year parts warranty (2-year batteries) as standard. The warranty must be registered on the Uniti Power website.
| Load | Internal Batteries | EBM3618RT2U | EBM3618RT2U x2 | EBM3618RT2U x3 | EBM3618RT2U x4 |
|---|---|---|---|---|---|
| 100% Load - 1500W | 2 mins | 15 mins | 30 mins | 45 mins | 60 mins |
| 75% Load - 1125W | 5 mins | 20 mins | 40 mins | 60 mins | 80 mins |
| 50% Load - 750W | 9 mins | 35 mins | 60 mins | 90 mins | 120 mins |
| 25% Load - 375W | 20 mins | 75 mins | 120 mins | 180 mins |
240 mins |
Autonomy in minutes is based on unity power factor
| MODEL NUMBER | SPY1500RMi2U |
| POWER RATING | 1500VA/ 1500W |
| POWER FACTOR | 1 |
| TECHNOLOGY | Online Double Conversion |
| MAIN INPUT VOLTAGE | 220V/ 230V/ 240V |
| MAIN OUTPUT VOLTAGE | 220V/ 230V/ 240V |
| RUN TIME @ FULL LOAD | 3 minutes |
| RUN TIME @ 75% LOAD | 5 minutes |
| RUN TIME @ 50% LOAD | 9 minutes |
| RUN TIME @ 25% LOAD | 20 minutes |
| INPUT CONNECTION | IEC C14 |
| OUTPUT CONNECTIONS | 1 main outlet group (with 4 x IEC C13) and 1 programmable outlet group (with 4 x IEC C13) |
| DIMENSIONS WxDxH (mm) | 438 x 445 x 86.5 (2U) |
| WEIGHT PER UNIT | 15.5 kg |
| NUMBER OF UNITS PER PALLET | 16 |
| EAN NUMBER | 6.39114E+11 |
| WARRANTY | 3 Year Parts/ 2 Year Batteries as Standard (6 Year Parts if monitored by Uniti Power) |
| EXTENDED BATTERY OPTION | EBM3618RT2U |
| REPLACEMENT BATTERY KIT | URBK1 |
| LEAD TIME | Usually in stock |
| BATTERY TYPE | Lead-acid battery |
| DC VOLTAGE | 36VDC |
| HOT SWAPPABLE BATTERIES? | Yes |
| NOISE (DBA) | 55 |
| INPUT FREQUENCY | 50/ 60Hz |
| INPUT FREQUENCY TOLERANCE | 40-70Hz |
| INPUT PHASE | Single |
| WAVEFORM | Pure Sine Wave |
| OUTPUT FREQUENCY | 50/ 60Hz |
| OUTPUT PHASE | Single |
| OPERATING TEMPERATURE RANGE | UPS: 0°C - 40°C, Batteries: 20 - 25°C |
| STORAGE TEMPERATURE RANGE | 0 - 30°C |
| HUMIDITY | 0-95% Relative Humidity (Non Condensing) |
| OPERATING ALTITUDE TOLERANCE | Up to 3000m |
| CONNECTION | USB & RS232 connectivity |
| OPTIONAL COMMS | SNMP, Modbus |
| FUNCTIONS | EPO, RJ11 & 45 Filters, USB, Expandable Battery Modules, Rack/Tower Flexibility, Rotatable LCD Display |
| ENVIRONMENTAL SAFETY STANDARD | Quality / Environmental: ISO 9001:2008 – ISO14001 Manufacturing: EN62040-1 EN62040-2 Safety: EN62040-1 Commercial: CE |
