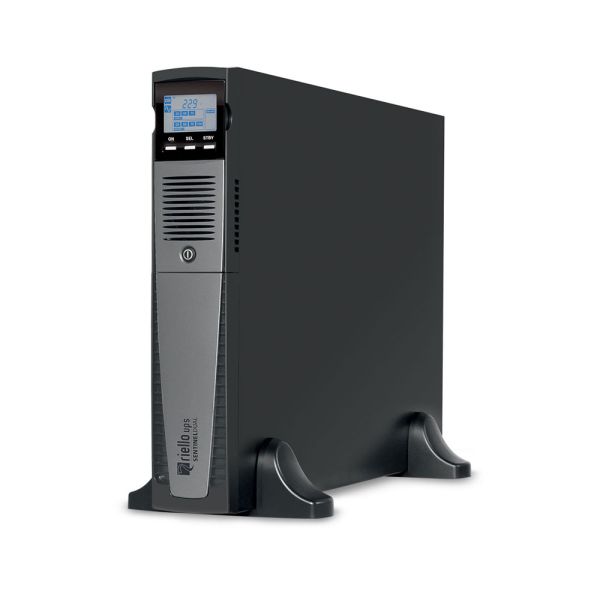

Riello SDH 2200 Sentinel Dual 2200VA/1980W 230V Online UPS, 2U Rack/Tower

1-2 Day Delivery

1-2 Day Delivery

SKU:
SDH2200
MPN:
SDH 2200
£775.72 £646.43
The Sentinel Dual UPS by Riello features a versatile 2U rack/tower format and online double-conversion power protection for critical servers, data storage systems, sensitive medical systems, industrial machinery, and emergency lighting systems. It is also possible to swap out the batteries without having to turn off the UPS or interrupt the load (Hot Swap), which ensures continuity of critical loads.
Free Express Delivery Over £99*  (1 - 2 Days)

The Sentinel Dual UPS by Riello features a versatile 2U rack/tower format and online double-conversion power protection for critical servers, data storage systems, sensitive medical systems, industrial machinery, and emergency lighting systems. It is also possible to swap out the batteries without having to turn off the UPS or interrupt the load (Hot Swap), which ensures continuity of critical loads.

The Sentinel Dual delivers reliable power to edge applications with its high power density, simple plug and play installation, and intuitive LCD display panel and user interface. Modern real-time controls automatically alter fan speed based on load. This keeps the UPS's noise level below 40 dBA, allowing you to operate uninterruptedly.

An emergency function assures the operation of emergency systems such as emergency lighting, fire detection and extinguishing systems, and alarms. When the main power fails, the inverter starts powering the loads gradually (Soft Start) to avoid overload. For medium-voltage coils, Sentinel Dual can be installed in transformer rooms. It can be used to power these coils.

Battery Replacement Kit - RBKRUPS1



Extended Runtime Options

Extend the runtime of the SDH 2200
SDH 2200 8 minutes
SDH 2200 with 1 x BB SDH 72V A3 16 minutes
SDH 2200 with 1 x BB SDH 72V M1 27 minutes
For a longer runtime, try the SDH 2200ER.



Features & Benefits:

  • 5 YEAR EXTENDED WARRANTY*
  • Output power capacity: 1980 Watts / 2200VA
  • 2U Rack Height
  • 8-minute backup time at full load
  • Runtime expandability with battery modules
  • Double conversion topology
  • Monitors and controls voltage and frequency
  • With a 0.9 power factor, it protects more devices
  • Handles non-linear loads, perfect for Blade servers
  • Compact design, perfect for Edge applications
  • Simple plug and play installation
  • Versatile rackmount or freestanding tower format
  • ECO and Smart Active modes reduce power consumption
  • Emergency function
  • Low noise level
  • Fully configurable using software
  • 1 optional communication card slot
  • 1 USB port and 1 serial port
  • Output Connections - 8 IEC 320 C13, 1 IEC 320 C19
  • Input Connections - 1 IEC 320 C20

Please Note: Rack Rail Kit is sold separately

*The warranty period commences on the invoice date and covers any mechanical faults or failures.

Input
Rated power 2200 VA
Voltage 220 / 230 / 240 V
Voltage tolerance 230 V ±20%
Frequency 50 / 60 Hz ±5
Frequency tolerance 50 Hz ±5% / 60 Hz ±5%
Power factor >0.98
Current distorsion =7%

By Pass
Voltage tolerance 200 / 253 V
Frequency tolerance Frequency selected (from ±0.5 Hz to ±5 Hz configurable)

Output And Inverter Output
Rated power 2200 VA
Active power 1980 W
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinusoidal
Frequency Selectable: 50 Hz or 60 Hz or self-learning
Voltage distortion with non-linear load ≤3.5%
Voltage distortion with linear load <2%

Overload Times
Load = 150% 0.5 sec
Load = 125% 4 sec.

Batteries
Type VRLA AGM maintenance-free lead based
Typical recharge time 2-4 h

Environmental
Color Black
Communication USB / DB9 with RS232 and contacts / Slot for communications interface
Accessories provided Power cable, serial cable, USB cable, safety manual, quick start guide
Surge capability 300 J
Line-Interactive/Smart Active efficiency 98%
Noise (at 1 m) <40 [bBA] (ECO Mode)
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111

Data
Weight 30.5 kg
Dimensions (h w d) (T- 450x87x625) (R- 2Ux19inx625) mm

Sentinel Dual Data Sheet

Sentinel Dual User Manual
