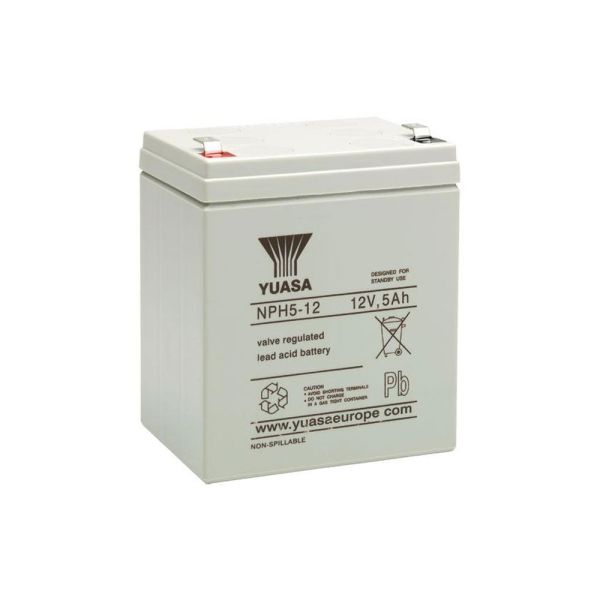

Yuasa NPH5-12 (12V 5Ah) High Rate VRLA Battery

Available to Order

SKU:
NPH5-12
MPN:
NPH5-12
Request Quote & Leadtime
Yuasa NPH batteries, with their exceptional deep discharge recovery properties and extended life on float standby, are high performance batteries specifically designed for applications requiring high rate discharge, supplying up to 50% more power for shorter periods of time than conventional NP models.
Standard Delivery  (1 - 7 Days)

Yuasa NPH batteries, with their exceptional deep discharge recovery properties and extended life on float standby, are high performance batteries specifically designed for applications requiring high rate discharge, supplying up to 50% more power for shorter periods of time than conventional NP models.

The sealed structure and innovative electrolyte suspension system of this battery allow operation in any orientation without performance loss or electrolyte leakage (excluding continuous use inverted). The battery is virtually maintenance-free due to its fully sealed structure and internal gas recombination.

Features & Benefits:

  • EUROBAT Classification: 3 to 5 years 'Standard Commercial'
  • High rate discharge performance VRLA battery
  • Lead Calcium Grids for superior life
  • Absorbed Glass Mat construction with no free acid
  • Gas recombination
  • Good recovery from deep discharge
  • Operation in any orientation (excluding continuous inverted use)
  • Capacity Ah (20-HR) - 5
  • Length (mm) - 90
  • Width (mm) - 70
  • Height (mm) - 105.5
  • Total Height (mm) - 105.5
  • Terminal - FASTON - Quickfit / release 6.35
  • Weight - 2kg
  • Nominal Voltage - 12
  • Capacity Ah - 5

General Specifications
20-hr rate Capacity to 10.5V at 20°C (Ah)5
10-hr rate Capacity to 10.8V at 20°C (Ah)4.63
Voltage12
Case MaterialABS (UL94:HB)
Float charge voltage at 20°C (V)/Block13.65 (+/-1%)
Float charge voltage at 20°C (V)/Cell2.275 (+/-1%)
Float Chg voltage tmp correction factor from std 20°C (mV)-3
Cyclic (or Boost) charge Voltage at 20°C (V)/Block14.5 (+/-3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell2.42 (+/-3%)
Cyclic Chg voltage tmp correction factor from std 20°C (mV)-4
Maximum Discharge Current 1 sec150
Maximum Discharge Current 1 min50
Impedance measured at 1 kHz (m?)25
