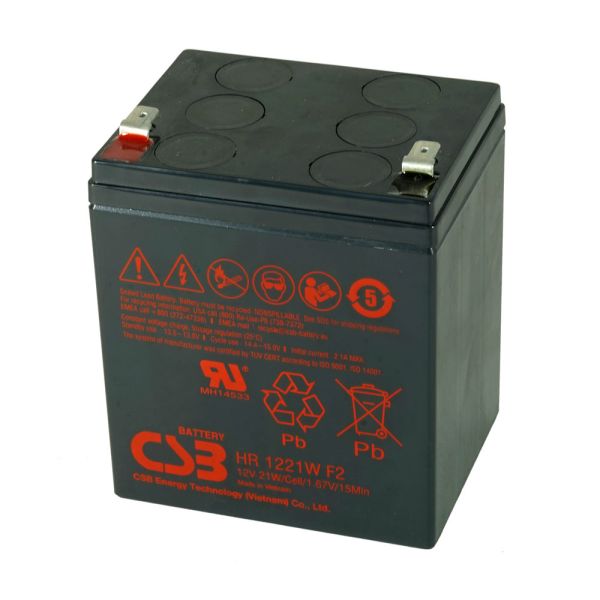

CSB HR1221W (12V 5Ah) High-Rate Discharge VRLA AGM Battery

1-3 Day Delivery

1-3 Day Delivery

SKU:
HR1221W
MPN:
HR 1221W
£20.58 £17.15
  • Capacity Ah: 5
  • Nominal Voltage: 12
  • Dimensions (LxWxH): 90x70x106.1mm
  • Typical Weight: 1.9kg
  • Long life, low self-discharge rate & high reliability
  • Safe, low resistance for easy recharge & greater energy output
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Batteries are strictly tested by a patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport
Standard Delivery  (1 - 7 Days)

The HR Series is designed specifically for high-efficiency discharge applications. It has a lower volume, is lightweight, and has a high discharge efficiency, with a design life of up to 5 years in standby service. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 21W
  • Weight: 1.9Kg
  • Length: 90mm
  • Width: 70mm
  • Height: 106mm
  • Terminal: F2 Faston terminals
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces batteries including the following:

  • BB Battery HR5.5-12 HR5.8-12 BP5-12
  • RITAR RT1250F2 RT1245
  • Rocket MK ES4-12

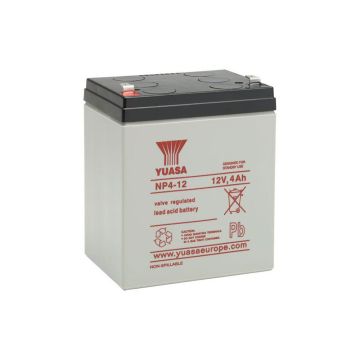

  • Yuasa NPX-25 NPX-25FR NPH5-12
  • Enersys / Yuasa NP4-12 NPH5-12 HP4-12 NPX25 NPX25FR
  • FIAMM FGH20502
  • Powersonic PS-1242 PS1242 PS-1250
  • Universal Power UB1250
  • Panasonic LCR12V4BP LCR12V5P LC-R125PU1
  • GS Portalac PE12V4.5F1 PX12050SHR
  • Union MX-12050
  • Huanyu HYS1250
  • DK1260
  • GP1245F2
  • LSLA5-12
  • MX12050
  • NP5-12
  • PG12V6
  • PS1250
  • PS1424
  • REW28-12
  • UB1250
  • WP1221P
  • WP4.5-12
  • WP5-12
  • RBC20J

Specification

Cells Per Unit6
Voltage Per Unit12 V
Capacity21W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F)
WeightApprox. 1.8kg. (3.97 lbs.)
Maximum Discharge current60/90A (5sec.)
Internal ResistanceApprox. 23.0mΩ
Operating Temperature RangeDischarge: -15~50(5°F~122°F)
Charge: -15~40(5°F~104°F)
Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range25°C ± 3°C (77°F ± 5°F)
Float charging voltage13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit2.1A
Equalization and Cycle Service14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self DischargeIt should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
TerminalF1/F2-Faston Tab187/250
Container MaterialABS (UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
