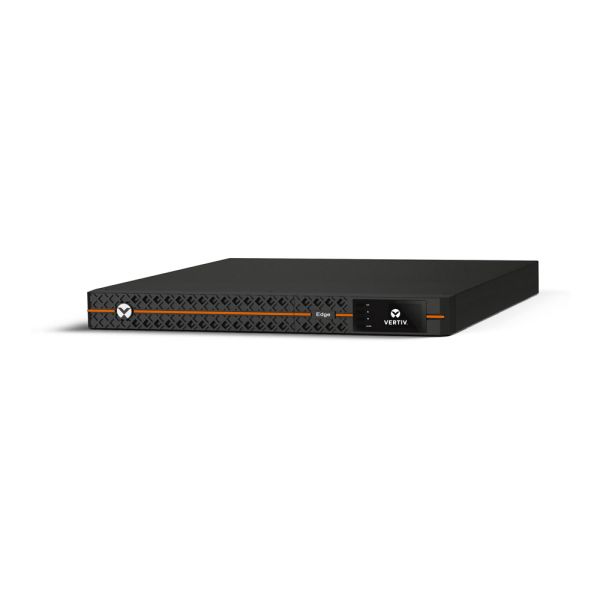

Vertiv Edge 1500VA 230V Line Interactive UPS, Rackmount 1U w/Kit

Free Express Delivery Over £99*  (1 - 2 Days)
Availability: Out of stock
SKU:
EDGE-1500IRM1U
MPN:
EDGE-1500IRM1U
£1,340.84 £1,117.37
Vertiv Edge provides best-in-class battery backup and power protection for Edge applications, telecoms, and dispersed IT equipment. The Edge is a highly reliable, efficient, controllable, and adaptable line interactive sinewave UPS in a compact 1U rack mount design for Edge applications with limited rack space.
Free Express Delivery Over £99*  (1 - 2 Days)
Seen this product cheaper elsewhere? Let us know
Enter the details of the other product you found

Vertiv Edge provides best-in-class battery backup and power protection for Edge applications, telecoms, and dispersed IT equipment. The Edge is a highly reliable, efficient, controllable, and adaptable line interactive sinewave UPS in a compact 1U rack mount design for Edge applications with limited rack space.

The Vertiv Edge is the ideal choice for protecting server and networking equipment in distributed and edge IT applications, thanks to its 0.9 power factor, controlled outlets, and extended runtime choices. It delivers optimal runtime at the right size and power density in a cost-effective UPS system.

The Edge solution has an Automatic Voltage Regulator (AVR) architecture that allows for more stable control of the output voltage and up to 98 percent high efficiency in normal operation mode. This saves energy and money.

Features & Benefits:

  • Output power capacity: 1350 Watts / 1500VA
  • Recharge Time (internal batteries, typical) - 3 hr @ 90%
  • Automatic Voltage Regulation (AVR)
  • Produces pure sinewave output
  • Reduces energy and cooling costs
  • Compact 1U rack mount design for applications with limited rack space
  • Comes with rack mounting hardware included
  • Vertiv Intellislot Port for optional management cards
  • With a 0.9 power factor, it protects more devices
  • Status and measurement colour LCD display
  • Emergency Power Off (EPO) connector
  • USB port
  • Three-year standard warranty
  • Output Connections - 3 + 3 IEC60320 C13
  • Input Connections - IEC60320 C14

Specifications
Capacity VA1500
Capacity W1350
Weight & Dimensions
Net Weight: kg23
Shipping Weight: kg30
Dimensions: W x D x H, mm438 x 600 x 43
Input AC Parameters
Voltage Range Without Battery Operation (230V default)166 - 278
Frequency Range (Hz)45 - 65, autosensing
Input Power ConnectorIEC60320 C14
Surge Protetion (J)624
Output AC Parameters
Output Receptacles3 + 3 IEC60320 C13
Output Receptacles - ControllableYes - 1 group
Output Voltage200/208/220/230/240
Waveform (Battery Operation)Pure Sine Wave
Transfer Time4 - 6 ms Typical
Output Overload (AC Mode)106% - 125% @ 60 s, 126% - 150% @ 50 s, 151% - 200% @ 2 s
Efficiency (full load, line mode, typ)97%
Battery
TypeValve-regulated, non-spillable, lead-acid
Recharge Time (internal batteries, typical)3 hr @ 90%
Environmental
Operating Temperature (°C)0 to 40
Storage Temperature (°C)-25 to +55 without battery inside
Relative Humidity (Operation)20% to 90%
Operating Altitude (m)3000
Audible Noise (line mode)<40dB normal mode, <70% load, <45dB AVR mode, >70% load
Form FactorRack (1U)
Agency
ComplianceCE, CB Report, EAC, RCM, UKCA
SafetyIEC/EN62040-1
TransportationISTA 2A
EnvironmentalRoHS2 / REACH / WEEE
Warranty
Warranty3 years
