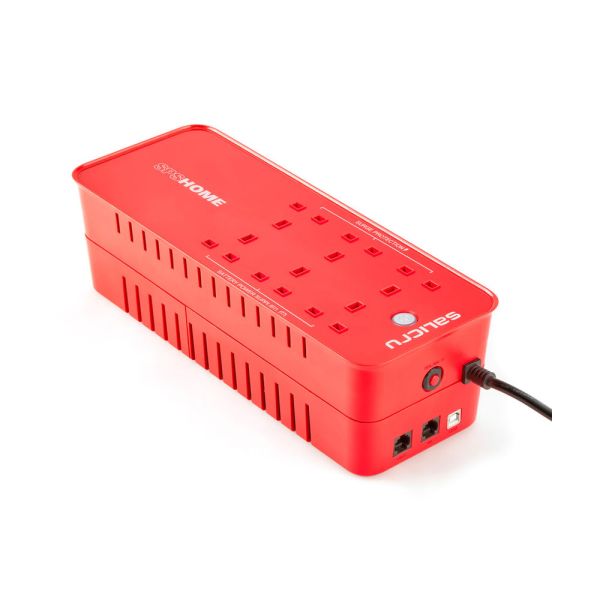

The Salicru SPS HOME series UPS features offline technology, a six-socket design, and can protect loads using Active Power Factor Adjustment (APFC).
The Salicru SPS HOME series UPS features offline technology, a six-socket design, and can protect loads using Active Power Factor Adjustment (APFC).
All six sockets have overvoltage protection, and three of them have autonomous backup in the event of a power outage. All of them are also suitable for quick connection of power supply transformers and are child-proofed. The UPS also has RJ45 ports to protect telephone, ADSL, and Ethernet connections from overvoltages and electrical noise.
The USB interface features the HID protocol, which allows parameter setup and PC closing/hibernation to facilitate UPS management and control. There are also software programmes available for Windows, Linux, and Mac that allow for the monitoring and efficient closure of files.
Features & Benefits:
Connections:
1. UPS backup + overvoltage protection sockets.
2. Overvoltage protection sockets.
3. On/Off button.
4. AC input.
5. USB-HID interface.
6. RJ45 telephone/ADSL/Ethernet protection.
7. Resettable protection circuit breaker.
8. Replaceable battery, battery swap.
| Technical Specifications | |
|---|---|
| Technology | Offline |
| Format | Socket Design |
| Input | |
| Rated voltage | 230 V |
| Voltage range | 180 ÷ 270 V |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Protection | Resettable breaker |
| Output | |
| Rated voltage | 230 V |
| Voltage accuracy (battery mode) | ±7% |
| Power (VA/W) | 650 / 360 |
| Waveform (battery mode) | Pseudo sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±1 Hz |
| Transfer time | 4 ms (typical) |
| Compatibility with APFC loads | Yes |
| No. of sockets protection + UPS | 3 x BS1363 socket |
| No. of sockets protection only | 3 x BS1363 socket |
| Socket type | UK |
| Battery | |
| Battery type | Pb-Ca sealed, AGM, maintenance-free |
| Recharge time | 8 hours to 90% |
| User-replaceable battery | Yes |
| Communication | |
| Ports | USB (HID protocol) |
| Monitoring software | For Windows, Linux and Mac |
| Indications | |
| Type | LED |
| Audible | Every 30 s for battery operation / Every 0.5 s for overload / Continuous for failure |
| Other Functions | |
| Self-charge | Yes, even with the device switched off |
| Cold start (start-up from batteries) | Yes |
| Automatic restart | Yes, after end of backup |
| ADSL/fax/modem transient protector | Yes, 2 x RJ45 for tel/fax, Internet ADSL + Ethernet network 10/100 Mb |
| General | |
| Operating temperature | 0ºC ÷ 40ºC |
| Relative humidity | Up to 95%, non-condensing |
| Maximum operating altitude | 2,400 masl |
| Acoustic noise at 1 metre | < 40 dB |
| Standards | |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2 |
| Operation | EN 62040-3 |
| Quality and environmental management | ISO 9001 & ISO 14001 |
| Physical | |
| Depth (mm) | 316 |
| Width (mm) | 121 |
| Height (mm) | 94 |
| Weight (kg) | 2.7 |
| Software | |
| Windows PowerMaster Windows - 128.34MB | Download |
| Mac OS PowerMaster Mac OS - 129.52MB | Download |
| Linux PowerMaster Linux_32 - 155.92MB | Download |
| Linux PowerMaster Linux_64 - 151.34MB | Download |
| VMwareESXi VMware ESX/ESXi 6.5 | Download |
| Documentation | |
| Windows Power Master user's manual | Download |
| Mac OS Power Master user's manual | Download |
| Linux Power Master user's manual | Download |
| VMwareESXi Power Master user's manual | Download |
Estimated delivery cost for Salicru 693CA000003 SPS HOME 650VA/360W 230V Offline UPS is £6.95.
