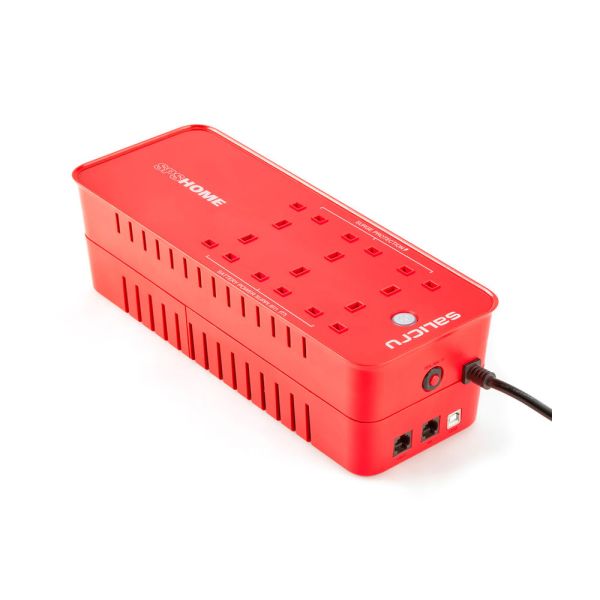

Salicru 693CA000004 SPS HOME 850VA/490W 230V Offline UPS

ETA confirmed after ordering or call: 0800 254 5655

ETA confirmed after ordering or call: 0800 254 5655

SKU:
693CA000004
MPN:
693CA000004
£151.80 £126.50

The Salicru SPS HOME series UPS has offline technology, a six-socket design, and can protect loads using Active Power Factor Adjustment (APFC).

Standard Delivery  (1 - 7 Days)

The Salicru SPS HOME series UPS features offline technology, a six-socket design, and can protect loads using Active Power Factor Adjustment (APFC).

All six sockets have overvoltage protection, and three of them have autonomous backup in the event of a power outage. All of them are also suitable for quick connection of power supply transformers and are child-proofed. The UPS also has RJ45 ports to protect telephone, ADSL, and Ethernet connections from overvoltages and electrical noise.

The USB interface features the HID protocol, which allows parameter setup and PC closing/hibernation to facilitate UPS management and control. There are also software programmes available for Windows, Linux, and Mac that allow for the monitoring and efficient closure of files.

Features & Benefits:

  • Output power capacity: 490 Watts / 850VA
  • Recharge time 8 hours
  • USB interface with HID protocol
  • Cold-start function for a startup from batteries
  • Automatic frequency detector
  • Batteries user replaceable
  • Management software
  • Two-year warranty
  • No. of sockets protection + UPS - 3 x BS1363 socket
  • No. of sockets protection only - 3 x BS1363 socket
  • Input Connections - UK

Connections:

1. UPS backup + overvoltage protection sockets.
2. Overvoltage protection sockets.
3. On/Off button.
4. AC input.
5. USB-HID interface.
6. RJ45 telephone/ADSL/Ethernet protection.
7. Resettable protection circuit breaker.
8. Replaceable battery, battery swap.

Technical Specifications
TechnologyOffline
FormatSocket Design
Input
Rated voltage230 V
Voltage range180 ÷ 270 V
Rated frequency50 / 60 Hz (auto-detection)
ProtectionResettable breaker
Output
Rated voltage230 V
Voltage accuracy (battery mode)±7%
Power (VA/W)850 / 490
Waveform (battery mode)Pseudo sine wave
Frequency50/60 Hz (same as input)
Frequency accuracy (battery mode)±1 Hz
Transfer time4 ms (typical)
Compatibility with APFC loadsYes
No. of sockets protection + UPS3 x BS1363 socket
No. of sockets protection only3 x BS1363 socket
Socket typeUK
Battery
Battery typePb-Ca sealed, AGM, maintenance-free
Recharge time8 hours to 90%
User-replaceable batteryYes
Communication
PortsUSB (HID protocol)
Monitoring softwareFor Windows, Linux and Mac
Indications
TypeLED
AudibleEvery 30 s for battery operation / Every 0.5 s for overload / Continuous for failure
Other Functions
Self-chargeYes, even with the device switched off
Cold start (start-up from batteries)Yes
Automatic restartYes, after end of backup
ADSL/fax/modem transient protectorYes, 2 x RJ45 for tel/fax, Internet ADSL + Ethernet network 10/100 Mb
General
Operating temperature0ºC ÷ 40ºC
Relative humidityUp to 95%, non-condensing
Maximum operating altitude2,400 masl
Acoustic noise at 1 metre< 40 dB
Standards
SafetyEN-IEC 62040-1
Electromagnetic compatibility (EMC)EN 62040-2
OperationEN 62040-3
Quality and environmental managementISO 9001 & ISO 14001
Physical
Depth (mm)316
Width (mm)121
Height (mm)94
Weight (kg)3
Software
Windows
PowerMaster Windows - 128.34MB
Download
Mac OS
PowerMaster Mac OS - 129.52MB
Download
Linux
PowerMaster Linux_32 - 155.92MB
Download
Linux
PowerMaster Linux_64 - 151.34MB
Download
VMwareESXi
VMware ESX/ESXi 6.5
Download
Documentation
Windows
Power Master user's manual
Download
Mac OS
Power Master user's manual
Download
Linux
Power Master user's manual
Download
VMwareESXi
Power Master user's manual
Download
