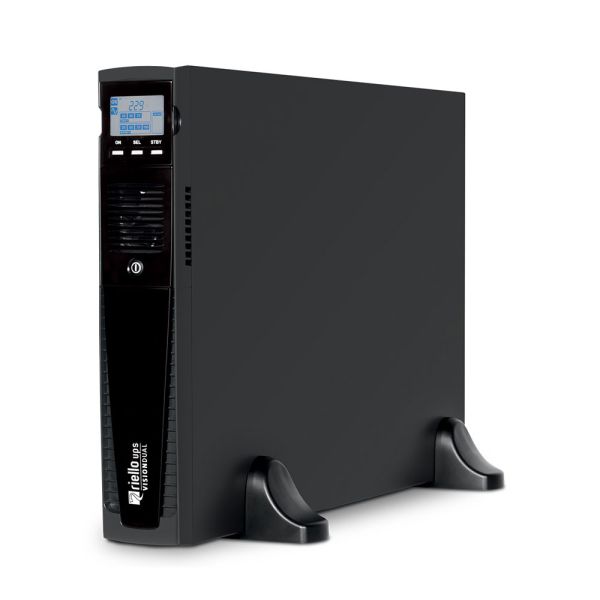

Riello VSD 2200 ER Vision Dual 2200VA/1760W 230V Line Interactive UPS, 2U Rack/Tower, Extended Runtime

ETA confirmed after ordering or call: 0800 254 5655

ETA confirmed after ordering or call: 0800 254 5655

SKU:
VSD2200ER
MPN:
VSD 2200ER
£612.32 £510.27

The Riello Vision Dual is a flexible UPS designed to protect your conventional or rack servers, network backup systems, and information technology network devices. Simply plug and play in either a freestanding tower or a 2U rackmount UPS configuration. It is the ideal answer for systems that require increased protection and flexibility in the power supply system.

Free Express Delivery Over £99*  (1 - 2 Days)

The Riello Vision Dual is a flexible UPS designed to protect your conventional or rack servers, network backup systems, and information technology network devices. Simply plug and play in either a freestanding tower or a 2U rackmount UPS configuration. It is the ideal answer for systems that require increased protection and flexibility in the power supply system. The line-interactive technology delivers a sinusoidal output and can cut energy use by 98%. It also safeguards against power outages.

The automatic voltage regulator (AVR) protects against surges, overvoltage, and undervoltage without the use of the battery. Reduced battery usage ensures that the battery set is fully operational in the case of a power outage and boosts autonomy. EMI filters then protect against voltage spikes and fluctuations. In the case of a power outage, the inverter provides a precisely sinusoidal supply to the load for best power continuity. The Vision line has an energy-saving button that switches off the lights when they are not in use for an extended period.

An EnergyShare connection allows for load-shedding and peripheral device shutdown to extend battery life for critical loads. Front-panel access to hot-swappable batteries enables safe UPS maintenance.

Extended Runtime Options

Extend the runtime of the VSD 2200 ER
VSD 2200 ER
 No Internal Battery - Extra Charger
VSD 2200 ER with 1 x BB SDH 72V B1 54 minutes
VSD 2200 ER with 2 x BB SDH 72V B1 129 minutes



Features & Benefits:

  • 5 YEAR EXTENDED WARRANTY*
  • Output power capacity: 1760 Watts / 2200VA
  • No internal batteries
  • 8A Battery charger for charging above 40Ah capacity
  • 2U Rack Height
  • Automatic Voltage Regulation (AVR)
  • Advanced EnergyShare sockets prioritise critical loads
  • 98% operational efficiency reduces energy waste
  • Versatile rack or tower installation
  • Status and measurement LCD display
  • Cold Start capability allows UPS to start without mains power
  • 9 outlets to connect your PC + peripherals
  • Fully integrates with management software
  • 1 USB port + 1 serial port
  • 1 optional communication card slot
  • Easy to replace battery helps to extend UPS service life
  • Highly reliable batteries (automatic and manually-activated battery test)
  • Built-in short circuit protection
  • Output Connections - 8 IEC 320 C13, 1 IEC 320 C19
  • Input Connections - 1 IEC 320 C20

Please Note: Rack Rail Kit is sold separately

*The warranty period commences on the invoice date and covers any mechanical faults or failures.

Input
Rated power 2200 VA
Voltage 220 / 230 / 240 V
Frequency 50 Hz or 60 Hz ±5
Frequency tolerance 50 Hz ±5% / 60 Hz ±5%
Power factor >0.98
Current distorsion ≤7%

Output And Inverter Output
Rated power 2200 VA
Active power 1760 W
Crest factor (Ipeak/Irms) 2.5 : 1
Wave form on battery Sinusoidal
Frequency on battery operation Selectable: 50 Hz or 60 Hz or self-learning
Voltage distortion with non-linear load <8%
Voltage distortion with linear load <3%

Overload Times
Load = 150% 1 sec.
Load = 125% 10 sec.

Batteries
Type VRLA AGM maintenance-free lead based
Typical recharge time 2-4 h

Environmental
Colour Black
Communication USB / DB9 with RS232 and contacts / Slot for communication interface
Accessories provided Power cable, serial cable, USB cable, safety manual, quick start guide, user manual on CD-ROM
Surge capability 300 J
Protections Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery
Line-Interactive/Smart Active efficiency 0.985
Noise (at 1 m) <40 [bBA] (ECO Mode)
Storing temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant

Data
Weight 15.5 kg
Dimensions (h w d) 625x87x450 / 2Ux19''x625 mm

Data Sheet

User Manual
