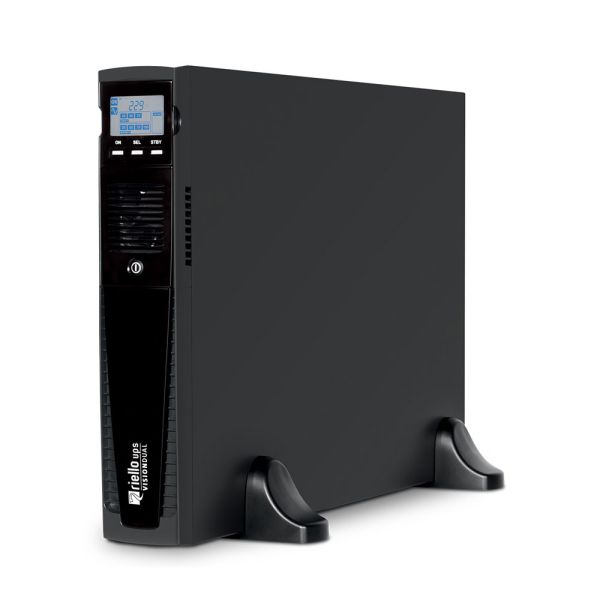

The Riello Vision Dual is a flexible UPS designed to protect your conventional or rack servers, network backup systems, and information technology network devices. Simply plug and play in either a freestanding tower or a 2U rackmount UPS configuration. It is the ideal answer for systems that require increased protection and flexibility in the power supply system. The line-interactive technology delivers a sinusoidal output and can cut energy use by 98%. It also safeguards against power outages.
The automatic voltage regulator (AVR) protects against surges, overvoltage, and undervoltage without the use of the battery. Reduced battery usage ensures that the battery set is fully operational in the case of a power outage and boosts autonomy. EMI filters then protect against voltage spikes and fluctuations. In the case of a power outage, the inverter provides a precisely sinusoidal supply to the load for best power continuity. The Vision line has an energy-saving button that switches off the lights when they are not in use for an extended period.
An EnergyShare connection allows for load-shedding and peripheral device shutdown to extend battery life for critical loads. Front-panel access to hot-swappable batteries enables safe UPS maintenance.
| Extend the runtime of the VSD 3000 ER | |
| VSD 3000 ER |
No Internal Battery - Extra Charger |
| VSD 3000 ER with 1 x BB SDH 72V B1 | 34 minutes |
| VSD 3000 ER with 2 x BB SDH 72V B1 | 88 minutes |
Features & Benefits:
Please Note: Rack Rail Kit is sold separately
*The warranty period commences on the invoice date and covers any mechanical faults or failures.
Input |
|
|---|---|
| Rated power | 3000 VA |
| Voltage | 220 / 230 / 240 V |
| Frequency | 50 Hz or 60 Hz ±5 |
| Frequency tolerance | 50 Hz ±5% / 60 Hz ±5% |
| Power factor | >0.98 |
| Current distorsion | ≤7% |
Output And Inverter Output |
|
| Rated power | 3000 VA |
| Active power | 2400 W |
| Crest factor (Ipeak/Irms) | 2.5 : 1 |
| Wave form on battery | Sinusoidal |
| Frequency on battery operation | Selectable: 50 Hz or 60 Hz or self-learning |
| Voltage distortion with non-linear load | <8% |
| Voltage distortion with linear load | <3% |
Overload Times |
|
| Load = 150% | 1 sec. |
| Load = 125% | 10 sec. |
Batteries |
|
| Type | VRLA AGM maintenance-free lead based |
| Typical recharge time | 2-4 h |
Environmental |
|
| Color | Black |
| Communication | USB / DB9 with RS232 and contacts / Slot for communication interface |
| Accessories provided | Power cable, serial cable, USB cable, safety manual, quick start guide, user manual on CD-ROM |
| Surge capability | 300 J |
| Protections | Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery |
| Line-Interactive/Smart Active efficiency | 0.985 |
| Noise (at 1 m) | <40 [bBA] (ECO Mode) |
| Storing temperature | 0 °C - +40 °C |
| Relative humidity | 5-95% non-condensing |
| Standards | European directives: L V 2014/35/EU low voltage Directive EMC 2014/30/EU electromagnetic compatibility -- Directive Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant |
Data |
|
| Weight | 16.5 kg |
| Dimensions (h w d) | 625x87x450 / 2Ux19''x625 mm |
