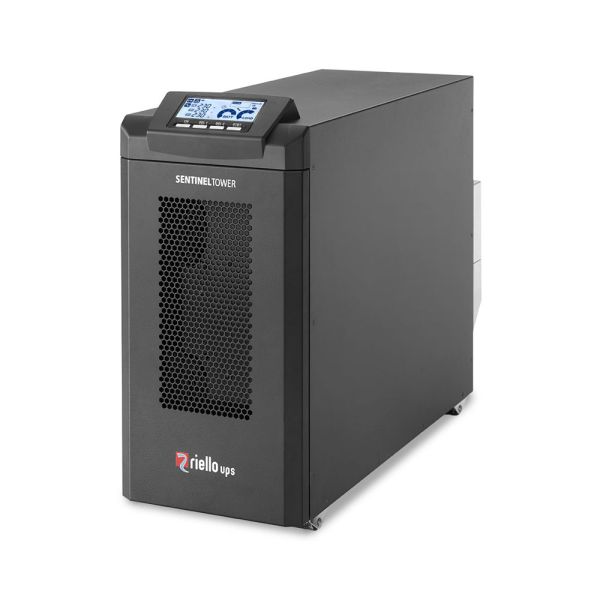

The Sentinel Tower is the best solution for ensuring maximum power reliability for mission-critical systems such as safety devices, telecommunications equipment, and information technology systems.
The Sentinel Tower is the best solution for ensuring maximum power reliability for mission-critical systems such as safety devices, telecommunications equipment, and information technology systems. The STW is made with cutting-edge parts and technology to make sure that powered loads are as safe as possible while affecting other systems as little as possible and saving as much energy as possible.
The STW 5000 has single-phase input and output and employs online double-conversion technology, in which the load is continuously powered by the inverter, which produces a filtered and frequency-stabilized sinusoidal voltage. Input and output filters provide additional safeguards against power outages and lightning strikes.
In terms of technology and performance, the STW is one of the leading UPS series on the market today, with a three-level inverter that achieves 95% efficiency and a unity output power factor of 1, which increases system and device efficiency while reducing power system losses. The STW has an Economy Mode and a Smart Active Mode that can be activated and deactivated. It also has a new LCD display for custom diagnostics, RS232 and USB ports with Powershield3 software, an ESD input, and a slot for connecting other boards.
Features & Benefits:
Output power capacity: 5000 Watts / 5kVA
8-minute backup time at full load
Unity Power factor 1 kW = kVA
Compact tower format
Parallel up to 3 UPS for redundancy
95% online efficiency decreases energy waste
Optional battery extension packs extend runtime
Ideal for Blade servers with its ability to handle non-linear loads
Easily choose between Online, Eco, & Smart Active modes
Intuitive LCD display panel
USB / DB9 with RS232 & contacts / Slot for communications interface / REPO & Input contact
180 / 264 V (selectable in ECO Mode or SMART ACTIVE Mode)
Frequency tolerance
Selected frequency ±5% (selectable by user)
OUTPUT and INVERTER OUTPUT
Rated power
5000 VA
Active power
5000 W
Crest factor (Ipeak/Irms)
3 : 1
Waveform
Sinusoidal
Frequency
50 / 60 Hz selectable
Voltage distortion with non-linear load
<3%
Voltage distortion with linear load
<1%
BATTERIES
Type
VRLA AGM maintenance-free lead based
Typical recharge time
4-6 h
ENVIRONMENTAL
Color
Black RAL 9005
Communication
USB / RS232 / slot for communications interface / REPO + Input contact
Accessories provided
USB cable
Surge capability
1 VDR x 300 J
Protections
Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery
Noise (at 1 m)
<48 [bBA] (ECO Mode)
Operating temperature
0 °C - +40 °C
Relative humidity
5-95% non-condensing
Output sockets
Terminal block + 2 IEC 320 C13
Standards
European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111
