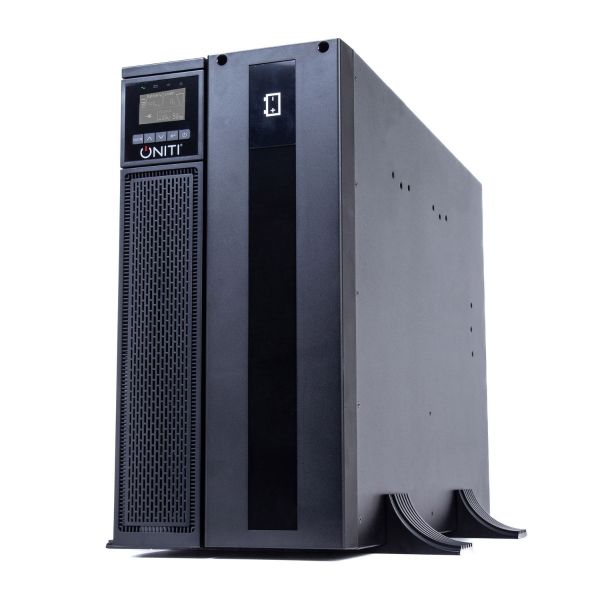

Uniti Power SPY6KIRTB Symphony 6kVA/6kW Online UPS, RT 5U

1-2 Day Delivery

1-2 Day Delivery

SKU:
SPY6KiRTB
MPN:
SPY6KiRTB
£2,535.00 £2,112.50
The Uniti Power Symphony UPS series protects small to medium-sized data centres, IT rooms, and mission-critical infrastructure with energy-efficient power.
Free Express Delivery Over £99*  (1 - 2 Days)
Free Maintenance Plan

24/7 Technical Support Number

Discounted Labour

Discounted Parts

Next Business Day Engineer Response

Click here for more information

The Uniti Power Symphony UPS series protects small to medium-sized data centres, IT rooms, and mission-critical infrastructure with energy-efficient power. Protected applications include small to medium-sized office equipment, PCs, servers, networking devices, IPS, CCTV, door entry systems, telecoms, and POS. This dependable UPS series includes a high power density, true online double-conversion technology, future-proof connectivity, and seamless cloud integration. Symphony is an excellent choice for IT and facilities managers who are concerned about rising energy costs and are looking for next-generation power protection solutions.

Symphony has a unity power factor (kVA = kW) and delivers more power than other comparable UPS solutions while saving the most in terms of power and cooling costs. Symphony can monitor and measure energy consumption down to the outlet group level using the user-friendly LCD panel or Uniti Power software. Symphony works with the top virtualization environments and cloud orchestration platforms because it has an optional network card and the Uniti Power software suite.

Features & Benefits:

  • 6-YEAR WARRANTY*
  • 12 minutes runtime at 75% load
  • Online double-conversion with pure sinewave output
  • Up to 97% efficiency in ECO mode
  • Wide input voltage range (110-276V AC)
  • Internal bypass maintains service during an internal fault
  • Unity power factor delivers more power than other UPSs
  • Versatile 5U rack/tower format
  • The smart graphical LCD panel shows all operational data
  • Load segment control prioritises non-essential equipment shutdowns during outages
  • Advanced Optimize Battery Management technology
  • Up to six external hot-swappable, auto-detecting battery modules can boost power availability
  • Connect to the cloud using the MQTT protocol
  • (1) USB port, (1) serial RS232 port, (1) Ethernet port, (1) mini-terminal block for remote power off (RPO) + input/output relay & (1) WLAN port (HDMI for IoT function)
  • Intelligent slot for remote management devices such as an SNMP network management card
  • Input: Hardwire terminal block
  • Output: Hardwire terminal block

Please note; SPYRK6-10 rack-mounting kits sold separately. ***Two kits are requiried for this UPS.***

*6-year parts warranty (2-year batteries) as standard. The warranty must be registered on the Uniti Power website.

SPY6KiRTB Runtime

Load Internal Batteries EBM2409RT3U EBM2409RT3U x2 EBM2409RT3U x3
100% Load - 6000W 7 mins 18 mins 30 mins 45 mins
75% Load - 4500W 12 mins 28 mins 45 mins 60 mins
50% Load - 3000W 20 mins 45 mins 75 mins 100 mins
25% Load - 1500W 45 mins 100 mins 180 mins

240 mins

Autonomy in minutes is based on unity power factor

Technical Specification

MODEL NUMBER SPY6KiRTB
POWER RATING 6000VA/ 6000W
POWER FACTOR 1
TECHNOLOGY Online Double Conversion
MAIN INPUT VOLTAGE 220V/ 230V/ 240V
MAIN OUTPUT VOLTAGE 220V/ 230V/ 240V
RUN TIME @ FULL LOAD 7 minutes
RUN TIME @ 75% LOAD 12 minutes
RUN TIME @ 50% LOAD 20 minutes
RUN TIME @ 25% LOAD 45 minutes
INPUT CONNECTION L/N/PE hardware terminal connection
OUTPUT CONNECTIONS L/N/PE hardware terminal connection
DIMENSIONS WxDxH (mm) 438 x 559 x 215 (5U)
WEIGHT PER UNIT 74 kg
NUMBER OF UNITS PER PALLET 3
EAN NUMBER 6.39114E+11
WARRANTY 3 Year Parts/ 2 Year Batteries as Standard (6 Year Parts if monitored by Uniti Power)
EXTENDED BATTERY OPTION EBM2409RT3U
REPLACEMENT BATTERY KIT URBK3
LEAD TIME Usually in stock
BATTERY TYPE Lead-acid battery
DC VOLTAGE 240VDC
HOT SWAPPABLE BATTERIES? No
NOISE (DBA) 55
INPUT FREQUENCY 50/ 60Hz
INPUT FREQUENCY TOLERANCE 40-70Hz
INPUT PHASE Single
WAVEFORM Pure Sine Wave
OUTPUT FREQUENCY 50/ 60Hz
OUTPUT PHASE Single
OPERATING TEMPERATURE RANGE UPS: 0°C - 40°C, Batteries: 20 - 25°C
STORAGE TEMPERATURE RANGE 0 - 30°C
HUMIDITY 0-95% Relative Humidity (Non Condensing)
OPERATING ALTITUDE TOLERANCE Up to 3000m
CONNECTION USB & RS232 connectivity
OPTIONAL COMMS SNMP, Relay, Modbus, Parallel Kit
FUNCTIONS EPO, RJ11 & 45 Filters, USB, Expandable Battery Modules, Rotatable LCD Display, Dual Input
ENVIRONMENTAL SAFETY STANDARD Quality / Environmental: ISO 9001:2008 – ISO14001 Manufacturing: EN62040-1 EN62040-2 Safety: EN62040-1 Commercial: CE
