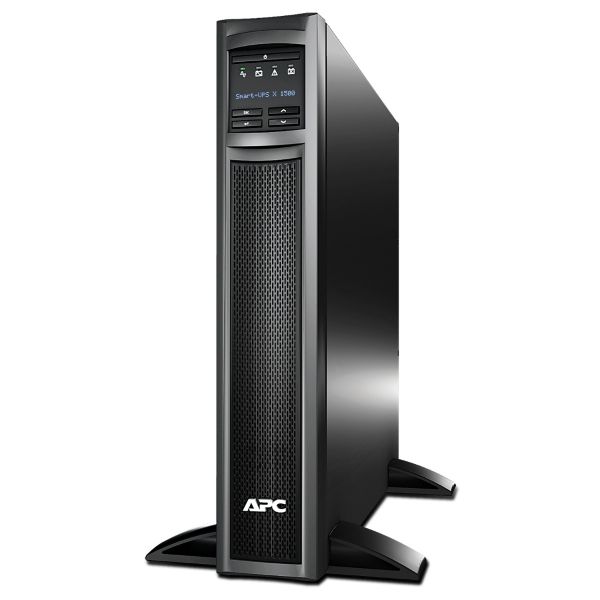

APC SMX1500RMI2UNC Smart-UPS X 1500VA/1200W 230V Line Interactive UPS, RT 2U, Network Card

Over 10 in stock for 1-2 Day Delivery

Over 10 in stock for 1-2 Day Delivery

SKU:
SMX1500RMI2UNC
MPN:
SMX1500RMI2UNC
£1,840.49 £1,533.74

Perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages.

Free Express Delivery Over £99*  (1 - 2 Days)

The APC Smart-UPS X convertible extended run models are perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.

Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a three-year repair or replace warranty (excluding battery) and two years for the battery.

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Removable support feet, Smart-UPS signalling RS-232 cable, USB cable

Features & Benefits:

  • Output power capacity: 1200 Watts / 1500VA
  • 5m 45s run time for 1200 watts load
  • 2U rack height
  • Network card for remote management
  • Auto-recognition of external batteries
  • Energy meter providing power usage for energy conscious users
  • High-efficiency Green Mode
  • Boost and trim automatic voltage regulation
  • Three-year repair or replace warranty
  • Output Connections - (2) IEC Jumpers (Battery Backup), (8) IEC 320 C13 (Battery Backup)
  • Input Connections - IEC 320 C14
  • Cord Length - 1.8m
  • Rack/Tower

Output

Max Configurable Power (Watts)1200Watts / 1500VA
Output Voltage DistortionLess than 5 %
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
TopologyLine interactive
Waveform typeSine wave

Input

Input frequency50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations151 - 302 Adjustable, 160 - 286V
Number of Power Cords1

Batteries & Runtime

Battery typeLead-acid battery
Typical recharge time3hour(s)
Replacement BatteryAPCRBC115
Expected Battery Life (years)3 - 5
RBC Quantity1
Battery Charge Power (Watts)103 Watts
RuntimeView Runtime Graph
EfficiencyView Efficiency Graph

Communications & Management

Interface Port(s)SmartSlot, USB
Control panelMultifunction LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)Yes

Surge Protection and Filtering

Surge energy rating645Joules
FilteringFull time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height89mm, 8.9cm
Maximum Width432mm, 43.2cm
Maximum Depth490mm, 49.0cm
Net Weight24.82kg
Shipping weight30.0kg
Shipping Height246mm, 24.6cm
Shipping Width589mm, 58.9cm
Shipping Depth620mm, 62.0cm
ColourBlack

Environmental

Operating Temperature0 - 45 °C
Operating Relative Humidity0 - 95 %
Operating Elevation0 - 3048meters
Storage Temperature-15 - 45 °C
Storage Relative Humidity0 - 95 %
Storage Elevation0 - 15240meters
Audible noise at 1 meter from surface of unit40.0dBA
Online thermal dissipation133.0BTU/hr

Conformance

ApprovalsC-Tick, CE, EAC, EN 50091-1, EN 50091-2, VDE
Standard warranty3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHSCompliant
