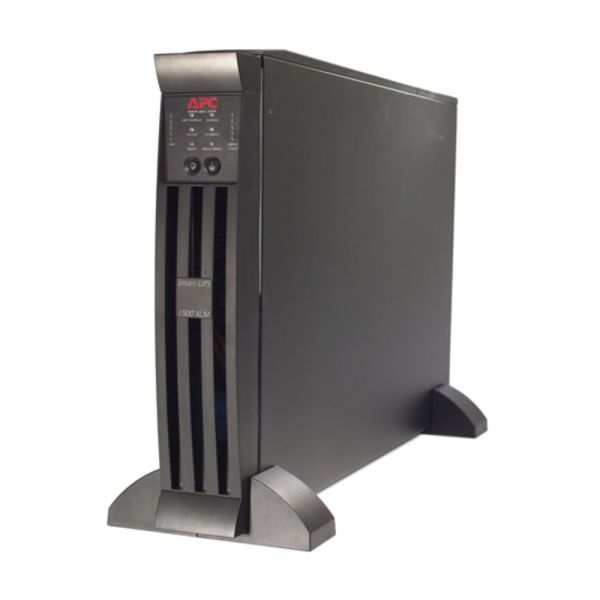

APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA/1425W 230V Line Interactive UPS, RT 2U

Call for availability 0800 2545655

Call for availability 0800 2545655

SKU:
SUM1500RMXLI2U
MPN:
SUM1500RMXLI2U
£1,922.63 £1,602.19

Perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages.

Free Express Delivery Over £99*  (1 - 2 Days)

The APC Smart-UPS by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.

Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LED status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a two-year repair or replace warranty.

Includes: CD with software, Installation guide, Rack Mounting brackets, Rack mounting support rails, Smart-UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP management card

Features & Benefits:

  • Output power capacity: 1425 Watts / 1500VA
  • 11m 53s run time for 1425 watts load
  • 2U Rack Height
  • Modular design enables IT projects that were previously infeasible or cost-prohibitive.
  • Preinstalled network management card providing remote management
  • Rack/Tower convertible
  • Automatic internal bypass
  • Boost and trim automatic voltage regulation
  • Two-year repair or replace warranty
  • Output Connections - (9) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup)
  • Input Connections - IEC 320 C14
  • Rack/Tower

Output

Max Configurable Power (Watts)1425 Watts / 1500VA
Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load95.0 %
Output Voltage DistortionLess than 5 % at full load
Output Frequency (sync to mains)47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal Sync to mains
TopologyLine interactive
Waveform typeSine wave
Maximum Output Current15
BypassInternal bypass (automatic and manual)

Input

Input frequency50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations151 - 302 Adjustable, 160 - 286V
Number of Power Cords1
Efficiency at Full Load95.0 %

Batteries & Runtime

Battery typeVRLA
Included Battery Modules1
Typical recharge time3hour(s)
Replacement BatteryRBC43
Expected Battery Life (years)3 - 5
RBC Quantity1
Battery Charge Power (Watts)199 Watts
Extendable Run Time1
RuntimeView Runtime Graph

Communications & Management

Interface Port(s)DB-9 RS-232, RJ-45 10/100 Base-T, USB
Control panelLED status display with load and battery bar-graphs and on line : on battery : replace battery : overload and bypass indicators
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)Optional

Surge Protection and Filtering

Surge energy rating490Joules
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height86mm, 8.6cm
Maximum Width432mm, 43.2cm
Maximum Depth678mm, 67.8cm
Net Weight46.82kg
Shipping weight56.82kg
Shipping Height250mm, 25.0cm
Shipping Width596mm, 59.6cm
Shipping Depth980mm, 98.0cm
ColourBlack
Units per Pallet8.0

Environmental

Operating Temperature0 - 40 °C
Operating Relative Humidity0 - 95 %
Operating Elevation0 - 3048meters
Storage Temperature-20 - 45 °C
Storage Relative Humidity0 - 95 %
Storage Elevation0 - 9144meters
Audible noise at 1 meter from surface of unit55.0dBA
Online thermal dissipation300.0BTU/hr

Conformance

ApprovalsC-Tick, CE, EN 50091-2, EN 55022 class A, EN 61000-3-2, GOST
Standard warranty2 years repair or replace

Sustainable Offer Status

RoHSCompliant

Smart-UPS SUM XL 1500/3000 VA 120/230 Vac RM2U
User manual Smart-UPS SUM XL 1500/3000 VA 120/230 Vac Rack-Mount 2U

Smart-UPS Warranty Registration Card - International
Warranty Registration Card
