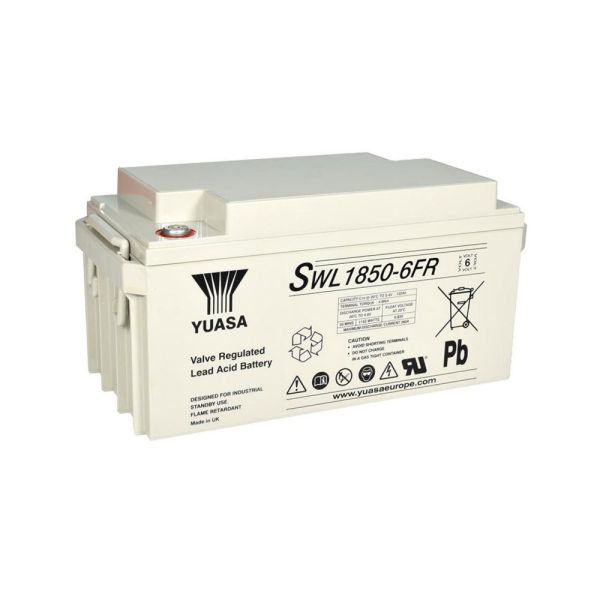

Yuasa SWL1850-6FR (6V 148Ah) High Rate VRLA Battery

Available to Order

SKU:
SWL1850-6FR
MPN:
SWL1850-6FR
Request Quote & Leadtime
The SWL series is an improved NPL design with a higher energy-to-density ratio and up to 40% more discharge capacity. All other qualities and operating characteristics are the same, allowing users of both products to benefit from a shared mechanical and electrical architecture. This product line is suited for UPS and other high-rate discharge applications.
Standard Delivery  (1 - 7 Days)

The SWL series is an improved NPL design with a higher energy-to-density ratio and up to 40% more discharge capacity. All other qualities and operating characteristics are the same, allowing users of both products to benefit from a shared mechanical and electrical architecture. This product line is suited for UPS and other high-rate discharge applications.

Features & Benefits:

  • EUROBAT Classification: 10 to 12 years 'Long Life'
  • High rate discharge performance VRLA battery
  • Compliant with IEC60896-21+22
  • Absorbed Glass Mat construction with no free acid
  • Gas recombination
  • Good recovery from deep discharge
  • Operation in any orientation (excluding continuous inverted use)
  • Excellent high-rate discharge efficiency, typically 40% more than equivalent standard products
  • Low discharge rate for long shelf life
  • Capacity Ah (20-HR) - 148
  • Length (mm) - 350
  • Width (mm) - 166
  • Height (mm) - 174
  • Total Height (mm) - 174
  • Terminal - M6 female threaded terminals
  • Terminal Torque (Nm) - 4.8
  • Weight - 23.8kg
  • Nominal Voltage - 6
  • Capacity Ah - 148

General Specifications
20-hr rate Capacity to 10.5V at 20°C (Ah)148
10-hr rate Capacity to 10.8V at 20°C (Ah)132
Voltage6
Case MaterialABS (UL94:V0)
Float charge voltage at 20°C (V)/Block6.825 (+/-1%)
Float charge voltage at 20°C (V)/Cell2.275 (+/-1%)
Float Chg voltage tmp correction factor from std 20°C (mV)-3
Cyclic (or Boost) charge Voltage at 20°C (V)/Block7.25 (+/-3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell2.42 (+/-3%)
Cyclic Chg voltage tmp correction factor from std 20°C (mV)-4
Maximum Discharge Current 1 sec500
Maximum Discharge Current 1 min260
Impedance measured at 1 kHz (m?)1.8
