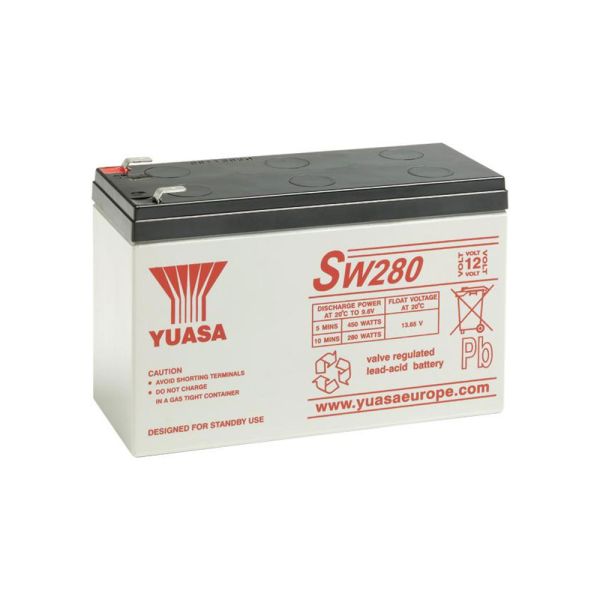

The Yuasa SW200 range is an updated NPL design with a higher energy-to-density ratio and up to 40% more discharge capacity. All other qualities and operating characteristics are the same, allowing users of both products to benefit from a shared mechanical and electrical architecture.
Features & Benefits:
| General Specifications | |
|---|---|
| 10m rate Constant Power (Typ) to 9.6V at 20°C (W/Block) | 280 |
| 10m rate Constant Power (Typ) to 1.6V/cell at 20°C (W/Cell) | 46.7 |
| Voltage | 12 |
| Case Material | ABS (UL94:HB) |
| Float charge voltage at 20°C (V)/Block | 13.65 (+/-1%) |
| Float charge voltage at 20°C (V)/Cell | 2.275 (+/-1%) |
| Float Chg voltage tmp correction factor from std 20°C (mV) | -3 |
| Cyclic (or Boost) charge Voltage at 20°C (V)/Block | 14.5 (+/-3%) |
| Cyclic (or Boost) charge Voltage at 20°C (V)/Cell | 2.42 (+/-3%) |
| Cyclic Chg voltage tmp correction factor from std 20°C (mV) | -4 |
| Maximum Discharge Current 1 sec | 150 |
| Maximum Discharge Current 1 min | 50 |
| Impedance measured at 1 kHz (m?) | 14 |
