main product photo

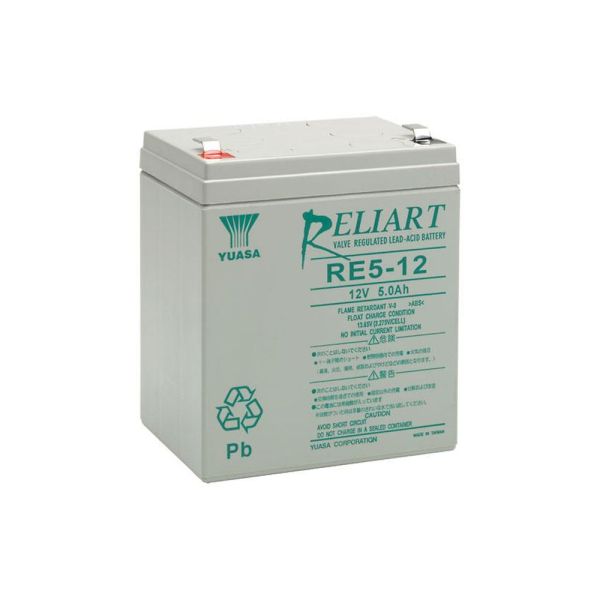

Yuasa RE5-12 (12V 5Ah) General Purpose VRLA Battery

Available to Order

SKU:
RE5-12
MPN:
RE5-12FR
Request Quote & Leadtime
Yuasa RE batteries are suited for standby and light cyclic applications such as fire and security systems, emergency lighting, solar and wind, UPS, and toys.
Standard Delivery  (1 - 7 Days)

Yuasa RE batteries are suited for standby and light cyclic applications such as fire and security systems, emergency lighting, solar and wind, UPS, and toys.

Features & Benefits:

  • EUROBAT Classification: 6 to 9 years 'General Purpose'
  • General purpose VRLA battery
  • Compliant with IEC60896-21+22
  • Absorbed Glass Mat construction with no free acid
  • Gas recombination
  • Superb recovery from deep discharge
  • Operation in any orientation (excluding continuous inverted use)
  • Multipurpose - Float or light cyclic use
  • Low discharge for long shelf life
  • Capacity Ah (20-HR) - 5
  • Length (mm) - 90
  • Width (mm) - 70
  • Height (mm) - 105.5
  • Total Height (mm) - 105.5
  • Terminal - FASTON - Quickfit / release 6.35
  • Weight - 1.96kg
  • Nominal Voltage - 12
  • Capacity Ah - 5

General Specifications
20-hr rate Capacity to 10.5V at 20°C (Ah)5
10-hr rate Capacity to 10.8V at 20°C (Ah)4.6
Voltage12
Case MaterialABS (UL94:HB)
Float charge voltage at 20°C (V)/Block13.65 (+/-1%)
Float charge voltage at 20°C (V)/Cell2.275 (+/-1%)
Float Chg voltage tmp correction factor from std 20°C (mV)-3
Cyclic (or Boost) charge Voltage at 20°C (V)/Block14.5 (+/-3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell2.42 (+/-3%)
Cyclic Chg voltage tmp correction factor from std 20°C (mV)-4
Maximum Discharge Current 1 sec120
Maximum Discharge Current 1 min40
Impedance measured at 1 kHz (m?)42

Data Sheet
