The NPL battery family is an improved NP design with a longer service life (7 - 10yrs). All other qualities and operating characteristics are the same, allowing users of both products to benefit from a shared mechanical and electrical architecture. This range is suited to applications such as security and fire, emergency lighting, telecoms and UPS.
The sealed structure and innovative electrolyte suspension system of this battery allow operation in any orientation without performance loss or electrolyte leakage (excluding continuous use inverted). The battery is virtually maintenance-free due to its fully sealed structure and internal gas recombination.
Features & Benefits:
| General Specifications | |
|---|---|
| 20-hr rate Capacity to 10.5V at 20°C (Ah) | 24 |
| 10-hr rate Capacity to 10.8V at 20°C (Ah) | 22.2 |
| Voltage | 12 |
| Case Material | ABS (UL94:V0) |
| Float charge voltage at 20°C (V)/Block | 13.65 (+/-1%) |
| Float charge voltage at 20°C (V)/Cell | 2.275 (+/-1%) |
| Float Chg voltage tmp correction factor from std 20°C (mV) | -3 |
| Cyclic (or Boost) charge Voltage at 20°C (V)/Block | 14.5 (+/-3%) |
| Cyclic (or Boost) charge Voltage at 20°C (V)/Cell | 2.42 (+/-3%) |
| Cyclic Chg voltage tmp correction factor from std 20°C (mV) | -4 |
| Maximum Discharge Current 1 sec | 500 |
| Maximum Discharge Current 1 min | 150 |
| Impedance measured at 1 kHz (m?) | 9.5 |

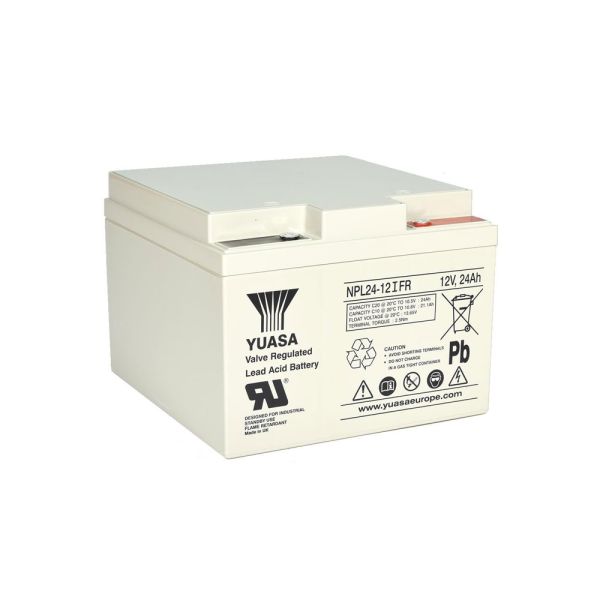

Estimated delivery cost for Yuasa NPL24-12FR (12V 24Ah) General Purpose VRLA Battery is £11.95.
