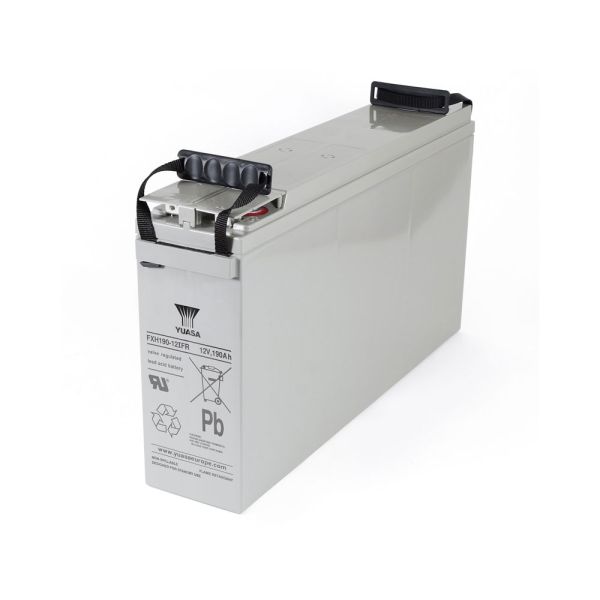

Yuasa FXH190-12 (12V 212Ah) Front Terminal VRLA Battery

Contact us for lead-time

Contact us for lead-time

SKU:
FXH190-12
MPN:
FXH190-12FR
Request Quote

The FXH battery family is designed for standby power applications such as telecommunications and UPS. The front terminal design enables quick installation and simple maintenance. This front-terminal battery family is an ideal solution for all essential standby applications because of its outstanding performance and long design life.

Standard Delivery  (1 - 7 Days)

The FXH battery family is designed for standby power applications such as telecommunications and UPS. The front terminal design enables quick installation and simple maintenance. This front-terminal battery family is an ideal solution for all essential standby applications because of its outstanding performance and long design life.

Features & Benefits:

  • EUROBAT Classification: Over 12 years 'Very Long Life'
  • Front terminal VRLA battery
  • Compliant with IEC60896-21+22
  • ABS case material to UL94:V0
  • Absorbed Glass Mat construction with no free acid
  • Gas recombination
  • Good recovery from deep discharge
  • Operation in any orientation (excluding continuous inverted use)
  • Capacity Ah (20-HR) - 212
  • Length (mm) - 604
  • Width (mm) - 123
  • Height (mm) - 320
  • Total Height (mm) - 320
  • Terminal - M6 Female threaded terminal
  • Terminal Torque (Nm) - 9.0-11.9
  • Weight - 67kg
  • Nominal Voltage - 12
  • Capacity Ah - 210

General Specifications
20hr to 1.8vpc 210
10hr to 1.8vpc 200
Voltage 12
Capacity loss per month at 20°C (approx) 3%
Case Material ABS (UL94:V0)
Float charge voltage at 20°C (V) 13.65 (+/-1%) / 2.275 (+/-1%)
Float Charge voltage temperature correction factor for variations from the standard 20°C (mV/cell/°C) -3
Cyclic (or Boost) charge at 20°C (V) 14.52 (+/-1%) / 2.42 (+/-1%)
Cyclic Charge voltage temperature correction factor for variations from the standard 20°C (mV/cell/°C) -4
Float charge current limit (A) 21
Cyclic (or Boost) charge current limit (A) 21
Impendance (m.ohms) 2.5
Max discharge 5 sec (A) 1000
Max discharge 1 min (A) 484
