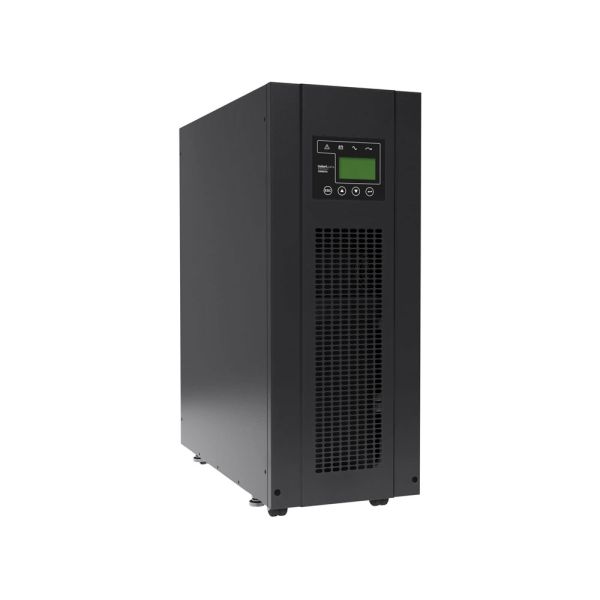

Vertiv's Liebert GXT3 is designed to provide higher power capacity in applications with limited floor space. This fully online double-conversion UPS system is a 10000 VA power-rated model with an integrated maintenance bypass and optional extended battery backup duration.
Vertiv's Liebert GXT3 is designed to provide higher power capacity in applications with limited floor space. This fully online double-conversion UPS system is a 10000 VA power-rated model with an integrated maintenance bypass and optional extended battery backup duration.
This UPS has no internal isolation transformer and may be configured as a 1/1 or 3/1, giving you more options. GXT3 is good for mission-critical applications like LAN and WAN servers, network equipment, IP telephony deployments, office telecommunications systems, ISDN and frame relay applications, test and diagnostic equipment, microprocessor-controlled equipment, and financial applications.
The Liebert GXT3 has a number of ways to connect for flexible monitoring and control. These include the Vertiv IntelliSlot web card, which lets you monitor and control the UPS through SNMP and the web, the Vertiv Nform monitoring system, and other third-party monitoring systems.
Features & Benefits:
| Specifications | |
|---|---|
| Capacity kVA | 10 |
| Capacity W | 9000 |
| Weight & Dimensions | |
| Net Weight: kg | 105 |
| Dimensions: W x D x H, mm | 300 x 675 x 800 |
| Input AC Parameters | |
| Voltage Range Without Battery Operation | 176-280VAC (for 1/1), 304-485VAC (for 3/1) |
| Frequency Range (Hz) | 50 - 60 autoselection |
| Input Socket | Terminal block |
| Output Sockets | Terminal block |
| Voltage | 220/230/240VAC |
| Waveform | Sinewave |
| Battery Parameters | |
| Type | HR 1234W F12 |
| Quantity x Voltage | 20 x 12V |
| Recharge Time | 3 hours to 90% capacity after full discharge with 100% load (Internal Batteries Only) |
| Environmental | |
| Operating Temperature | 0 to 30 °C with 0.9 pf, 30 to 40 °C with 0.8 pf |
| Storage Temperature | - 15 to 50 °C |
| Relative Humidity | 0%RH to 95%RH, non-condensing |
| Operating Altitude | Up to 1000m |
| Audible Noise | < 55 dBA, at 1 meter from the rear, < 50 dBA, at 1 meter from the front or sides |
| Standards and Certifications | CE |
| RFI/EMI | IEC/EN/AS 62040-2 2nd Ed (Cat 2 - Table 6) |
| Surge Immunity | EN61000-4-5, Level 3, Criteria A |
| Transportation | ISTA Procedure 1A |
| Warranty | |
| Warranty | 2 years |
