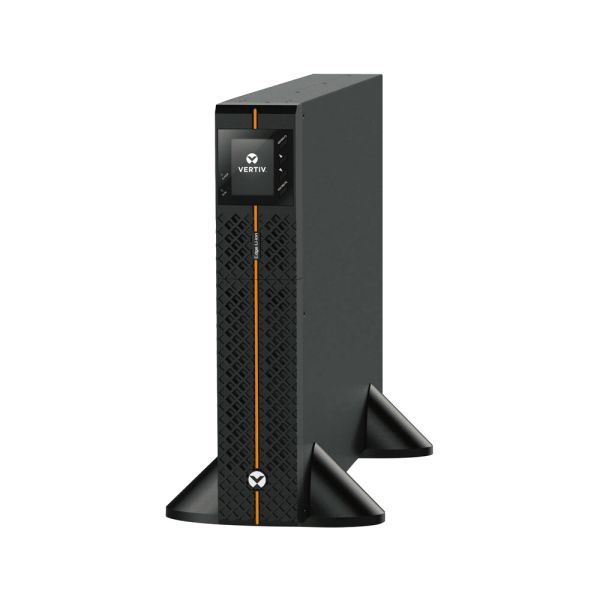

The Vertiv Edge Lithium-Ion line-interactive UPS gives your most important IT equipment, like servers and network gear, a high level of power protection and battery backup. This makes sure that your business-critical applications are safe in the event of an unexpected power outage or power surge. Lithium-Ion technology provides up to three times the life expectancy of lead-acid batteries while cutting total cost of ownership in half.
The Edge Lithium-Ion protects against a wide range of power changes, and when power loss is detected, it automatically switches to the backup battery. With an output power factor of 0.9 and a transfer time of less than 6 milliseconds, you can be sure that your most important assets are safe.
The design makes it perfect for server rooms, network closets, and other edge or distributed IT applications in small and medium businesses with limited floor space. It is a low-maintenance, "set it and forget it" solution that works well in remote areas with few technical resources on-site.
Features & Benefits:
| Specifications | |
|---|---|
| Capacity VA | 2200 |
| Capacity W | 1980 |
| Weight & Dimensions | |
| Net Weight: kg | 17.5 |
| Shipping Weight: kg | 25.2 |
| Dimensions: W x D x H, mm | 438 x 510 x 86 |
| Input AC Parameters | |
| Voltage Range Without Battery Operation (230V default) | 166 - 278 |
| Frequency Range (Hz) | 45 - 65, autosensing |
| Input Power Connector | IEC60320 C20 |
| Surge Protetion (J) | 624 |
| Output AC Parameters | |
| Output Receptacles | 3 + 3 IEC60320 C13 + 1 IEC60320 C19 |
| Output Receptacles - Controllable | Yes - 1 group (3 x IEC60320 C13) |
| Output Voltage | 200/208/220/230 (default) /240 |
| Waveform (Battery Operation) | Pure Sine Wave |
| Transfer Time | 4 - 6 ms Typical |
| Output Overload (AC Mode) | 111% - 120% @ 10 s > 121% - Shutdown |
| Efficiency (full load, line mode, typ) | 98.5% |
| Battery | |
| Type | Li-ion (LiFePo4) |
| Quantity & Voltage & Capacity | 2 x 72V x 2.5Ahr |
| Recharge Time (90% / 100%, from full discharge) | 1.7 hrs / 1.9 hrs |
| Full-Load Runtime | 9.3min |
| Half-Load Runtime | 20.2min |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -10°C to +45°C |
| Relative Humidity (Operation) | 8% to 90%, non-condensing |
| Operating Altitude (without derating) | 3000m |
| Audible Noise (line mode) | <45dBA AVR mode, >70% load, < 55dBA Battery mode |
| Form Factor | Rack/Tower (2U) |
| Agency | |
| Compliance | CE, CB Report, EAC, RCM, UKCA |
| Safety | EN62040-1:2008+A1:2013, CB - IEC62619 li-ion battery |
| Transportation | ISTA 2A UPS UN38.3 (Lithium-Ion) |
| Environmental | RoHS2 / REACH / WEEE |
| Communications & Management | |
| Slot for optional cards | Yes |
| Communication port | USB |
| Emergency Power Off (EPO) | Yes |
| Warranty | |
| Warranty | 5 years on UPS and Battery |
| Runtimes | |||
|---|---|---|---|
| Load % | VA | Watts | Runtime (min) |
| 100% | 2200 | 1980 | 9.3 |
| 90% | 1980 | 1782 | 10.5 |
| 80% | 1760 | 1584 | 12 |
| 70% | 1540 | 1386 | 13.9 |
| 60% | 1320 | 1188 | 16.6 |
| 50% | 1100 | 990 | 20.2 |
| 40% | 880 | 792 | 25.5 |
| 30% | 660 | 594 | 34.3 |
| 20% | 440 | 396 | 47.1 |
| 10% | 220 | 198 | 90.7 |
