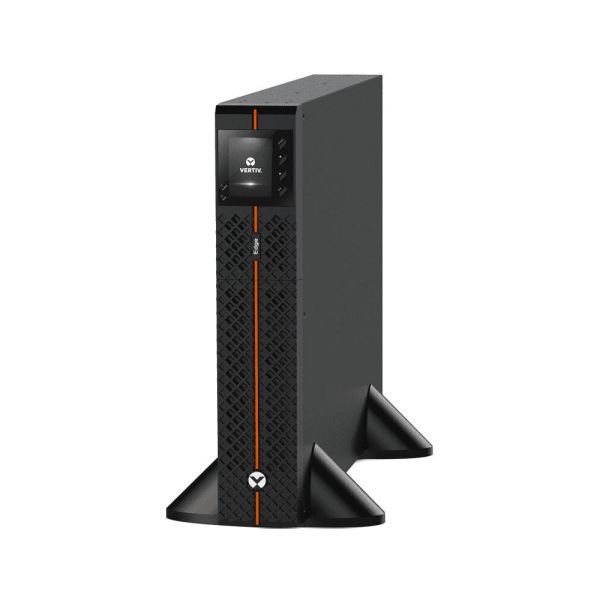

Vertiv EDGE-2200IRT2UXL Edge 2200VA/1980W 230V Line Interactive UPS, RT 2U

Over 10 in stock for 1-2 Day Delivery

Over 10 in stock for 1-2 Day Delivery

SKU:
EDGE-2200IRT2UXL
MPN:
EDGE-2200IRT2UXL
£1,074.17 £895.14
Vertiv Edge provides best-in-class battery backup and power protection for Edge applications, telecoms, and dispersed IT equipment. The Edge is a highly reliable, efficient, controllable, and adaptable line interactive sinewave UPS in a versatile 2U rack/tower design which provides flexible installation options.
Standard Delivery  (1 - 7 Days)

Vertiv Edge provides best-in-class battery backup and power protection for Edge applications, telecoms, and dispersed IT equipment. The Edge is a highly reliable, efficient, controllable, and adaptable line interactive sinewave UPS in a versatile 2U rack/tower design which provides flexible installation options.

The Vertiv Edge is the ideal choice for protecting server and networking equipment in distributed and edge IT applications, thanks to its 0.9 power factor, controlled outlets, and extended runtime choices. It delivers optimal runtime at the right size and power density in a cost-effective UPS system.

The Edge solution has an Automatic Voltage Regulator (AVR) architecture that allows for more stable control of the output voltage and up to 98 percent high efficiency in normal operation mode. This saves energy and money.

Features & Benefits:

  • Output power capacity: 1980 Watts / 2200VA
  • Recharge Time (internal batteries, typical) - 3 hr @ 90%
  • Automatic Voltage Regulation (AVR)
  • Produces pure sinewave output
  • Reduces energy and cooling costs
  • Versatile 2U rack or tower installation
  • Comes with rack mounting hardware included
  • Vertiv Intellislot Port for optional management cards
  • With a 0.9 power factor, it protects more devices
  • Status and measurement colour LCD display
  • Emergency Power Off (EPO) connector
  • USB port
  • Three-year standard warranty
  • Output Connections - 3 + 3 IEC60320 C13 + 1 IEC60320 C19
  • Input Connections - IEC60320 C20

Specifications
Capacity VA2200
Capacity W1980
Weight & Dimensions
Net Weight: kg27
Shipping Weight: kg33
Dimensions: W x D x H, mm438 x 630 x 86
Input AC Parameters
Voltage Range Without Battery Operation (230V default)166 - 278
Frequency Range (Hz)45 - 65, autosensing
Input Power ConnectorIEC60320 C20
Surge Protetion (J)624
Output AC Parameters
Output Receptacles3 + 3 IEC60320 C13 + 1 IEC60320 C19
Output Receptacles - ControllableYes - 1 group
Output Voltage200/208/220/230/240
Waveform (Battery Operation)Pure Sine Wave
Transfer Time4 - 6 ms Typical
Output Overload (AC Mode)106% - 125% @ 60 s, 126% - 150% @ 50 s, 151% - 200% @ 2 s
Efficiency (full load, line mode, typ)97%
Battery
TypeValve-regulated, non-spillable, lead-acid
Recharge Time (internal batteries, typical)3 hr @ 90%
Compatible External Battery CabinetGXT5-EBC72VRT2UE
Environmental
Operating Temperature (°C)0 to 40
Storage Temperature (°C)-25 to +55 without battery inside
Relative Humidity (Operation)20% to 90%
Operating Altitude (m)3000
Audible Noise (line mode)<40dB normal mode, <70% load, <45dB AVR mode, >70% load
Form FactorRack/Tower (2U)
Agency
ComplianceCE, CB Report, EAC, RCM, UKCA
SafetyIEC/EN62040-1
TransportationISTA 2A
EnvironmentalRoHS2 / REACH / WEEE
Warranty
Warranty3 years
