5 in stock for 1-2 Day Delivery

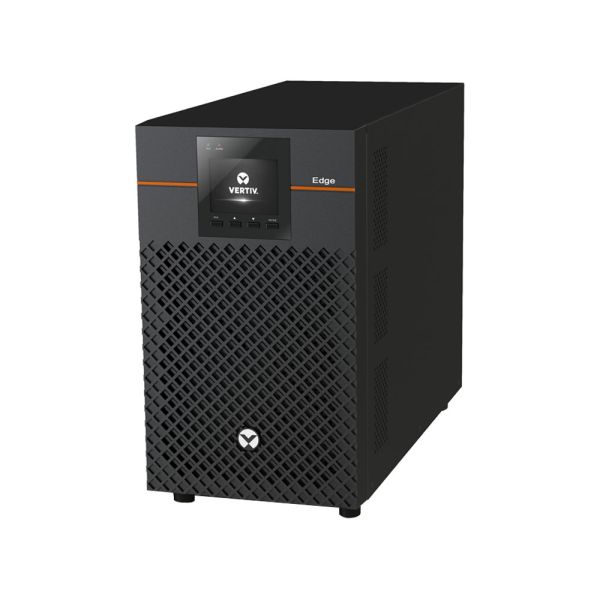

Vertiv Edge provides best-in-class battery backup and power protection for Edge applications, telecoms, and dispersed IT equipment. The Edge Tower is a highly reliable, efficient, controllable, and adaptable line interactive sinewave UPS in a compact tower design for tower servers and/or applications with no accessible rack.
The Vertiv Edge is the ideal choice for protecting server and networking equipment in distributed and edge IT applications, thanks to its 0.9 power factor, controlled outlets, and extended runtime choices. It delivers optimal runtime at the right size and power density in a cost-effective UPS system.
The Edge solution has an Automatic Voltage Regulator (AVR) architecture that allows for more stable control of the output voltage and up to 98 percent high efficiency in normal operation mode. This saves energy and money.
Features & Benefits:
| Specifications | |
|---|---|
| Capacity VA | 1000 |
| Capacity W | 900 |
| Weight & Dimensions | |
| Net Weight: kg | 14 |
| Shipping Weight: kg | 16 |
| Dimensions: W x D x H, mm | 145 x 370 x 220 |
| Input AC Parameters | |
| Voltage Range Without Battery Operation (230V default) | 166 - 278 |
| Frequency Range (Hz) | 45 - 65, autosensing |
| Input Power Connector | IEC60320 C14 |
| Surge Protetion (J) | 624 |
| Output AC Parameters | |
| Output Receptacles | 3 + 2 IEC60320 C13 |
| Output Receptacles - Controllable | Yes - 1 group |
| Output Voltage | 200/208/220/230/240 |
| Waveform (Battery Operation) | Pure Sine Wave |
| Transfer Time | 4 - 6 ms Typical |
| Output Overload (AC Mode) | 106% - 125% @ 60 s, 126% - 150% @ 50 s, 151% - 200% @ 2 s |
| Efficiency (full load, line mode, typ) | 96% |
| Battery | |
| Type | Valve-regulated, non-spillable, lead-acid |
| Recharge Time (internal batteries, typical) | 3 hr @ 90% |
| Environmental | |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -25 to +55 without battery inside |
| Relative Humidity (Operation) | 20% to 90% |
| Operating Altitude (m) | 3000 |
| Audible Noise (line mode) | <40dB normal mode, <70% load, <45dB AVR mode, >70% load |
| Form Factor | Tower |
| Agency | |
| Compliance | CE, CB Report, EAC, RCM, UKCA |
| Safety | IEC/EN62040-1 |
| Transportation | ISTA 2A |
| Environmental | RoHS2 / REACH / WEEE |
| Warranty | |
| Warranty | 3 years |
