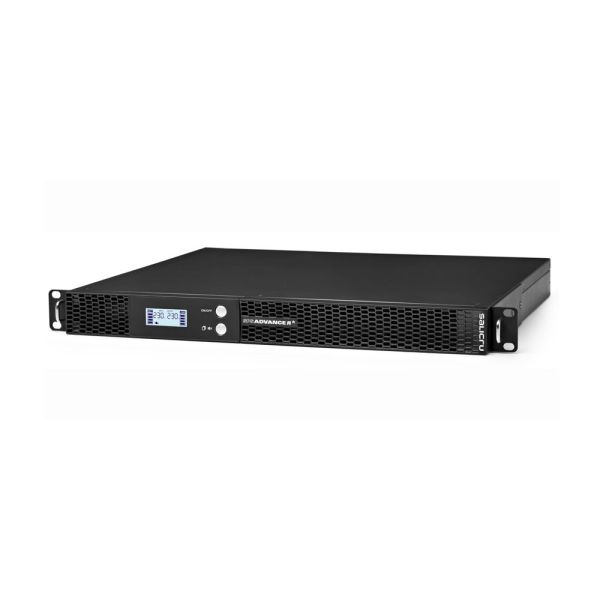

The SPS ADVANCE R UPS series by Salicru is specially intended for installation on racks with high occupancy density and, with a height of only one U, allows room to be freed up for other devices. Powering all types of essential loads, the series features line-interactive technology (AVR stabilisation with buck-boost regulation) and pure sine-wave output.
The ADVANCE R technology enables a high level of efficiency to be attained, resulting in significant savings in total rack usage. Its compatibility with modern APFC (active power factor correction) power supplies is also impressive. Also, its IEC sockets make it easier to connect all parts of the computer environment.
There are adapters (SNMP/Web adapters) that can be used with the smart slots that the devices have. These adapters can be used with the RS-232 interface and management and monitoring software for Windows, Linux, and Mac systems.
Features & Benefits:
Please Note: Rack Rail Kit sold separately
| Technical Specifications | |
|---|---|
| Technology | Line-interactive |
| Format | Rack 1U |
| Input | |
| Rated voltage | 230 V |
| Voltage range 100% load | 165 ÷ 290 V |
| Stabiliser | AVR (Buck & Boost) |
| Rated frequency | 52 / 60 Hz (auto-detection) |
| Frequency range | ±5 Hz |
| Auto~detection of frequency | Yes |
| Protection | Fuse |
| Output | |
| Rated voltage | 230 V |
| Voltage accuracy (battery mode) | ±10% |
| Power (VA/W) | 1500 / 900 |
| Total harmonic distortion (THDv) | <5% linear load / <10% non-linear load |
| Waveform (battery mode) | Pure sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±1 Hz |
| Compatibility with APFC loads | Yes (1) |
| Performance Stabiliser mode (AVR) | >92% |
| Performance Battery mode | >80% |
| Performance in mains mode | >95% |
| Admissible overloads in battery mode | 110% for 1 min / 130% immediate |
| Admissible overloads in-line mode | 110% for 1 min / 130% immediate |
| Socket type | IEC C13 |
| No. Of sockets | 4 |
| Battery | |
| Battery type | Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 4 hours to 90% |
| User replaceable battery | Yes |
| Battery test | Automatic on each start-up + manual |
| Communication | |
| Ports | RS-232 / DB9 |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |
| Indications | |
| Type | LCD + keypad |
| Values | Input and output voltage / % load / % battery / backup |
| Levels | Connected load / overload / battery / low battery |
| Operating modes | Normal / Stabilisation (AVR) / Battery / Fault |
| Alarm | Battery / low battery / overload / failure |
| Audible | Every 30 s for battery operation. Every 2 s for low battery / Polarity. Every 0,5 s for overcharge. Continuous for fault. |
| Failure | Display LCD |
| Other Functions | |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| General | |
| Operating temperature | 0° C ÷ 40° C |
| Relative humidity | Up to 95%, non-condensing |
| Maxium operating altitude | 2,400 masl |
| Acoustic noise at 1 metre | <40 dB |
| Standards | |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2(C2) |
| Operation | EN 62040-3 |
| Quality and environmental management | ISO 9001 & ISO 14001 |
| Dimensions | |
| Depth (mm) | 485 |
| Width (mm) | 433 |
| Height (mm) | 44 |
| Weight | |
| Weight (kg) | 15.83 |
(1) Power degradation of 20%
