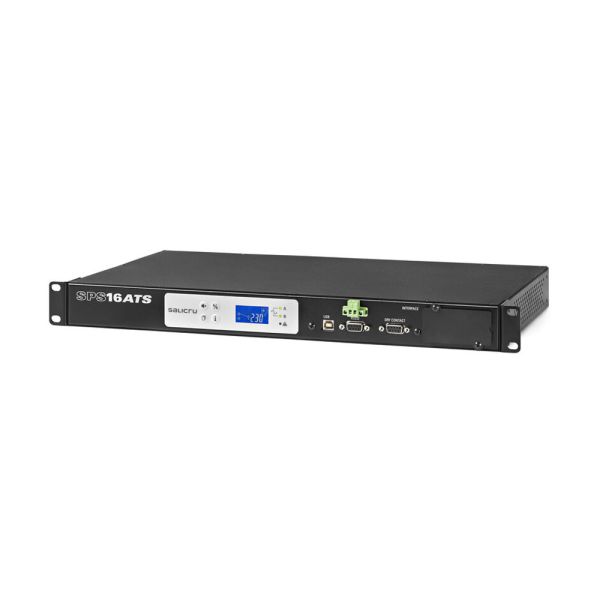

The SPS ATS series from Salicru is an automatic switch between two single-phase AC power lines. It takes an input voltage from two sine-wave current power lines and sends it to the load (s). The switching can be done automatically or manually. LCD and status LEDs always show what mode the device is in and what the main measurements are.
It has a lot of ways to communicate, including built-in USB, RS-232, and potential-free contact interfaces, as well as the option to be added to an SNMP platform. With the software for setting parameters, you can also set things like delays, overload levels, voltage and frequency ranges, line sensitivity, potential-free contacts, etc.
Features & Benefits:
| Input | |
|---|---|
| Rated voltage | 200 / 208 / 220 / 230 / 240 V |
| Voltage range | 150 ÷ 300 Vac |
| Rated frequency | 50 / 60 Hz |
| Output | |
| Rated voltage | 200 / 208 / 220 / 230 / 240 V |
| Rated current (A) | 16 A |
| Performance | >99% |
| Communication | |
| Interface | RS-232, USB and potential-free contacts |
| Indications | |
| Information | Source A, source B, failure, overload, alarm, audible alarm silencer |
| Monitoring software | Yes, for Windows OS |
| Type | LCD + LEDs |
| Values | Voltage, current, frequency, % load, error code |
| Connections | |
| Input | 2 x IEC C20 |
| Output | 8x IEC C13 + 1x IEC C19 |
| Protection | |
| Output | Overload |
| General | |
| Operating temperature | 0°C ÷ +40°C |
| Relative humidity | Up to 95%, non-condensing |
| Maxium operating altitude | 2,400 masl |
| Standards | |
| Safety | IEC-60950-1 |
| Electromagnetic compatibility (EMC) | EN-55022; EN-55024 |
| Quality and environmental management | ISO 9001 & ISO 14001 |
| Dimensions | |
| Depth (mm) | 275 |
| Width (mm) | 438 |
| Height (mm) | 44 |
| Weight | |
| Weight (kg) | 4 |
Its recommended to keep a front distance of 35mm, parallel to the fixing plane of the ears on the rack cabinet. This distance is not included in the "Depth" total dimension.
