Salicru's SLC TWIN RT2 series UPSs can protect a wide range of environments, including virtualized or non-virtualized server systems, voice and data networks, ERP systems, CRM solutions, document management, and more. All of these depend on the reliability of the electrical supply that powers them. This uninterruptible power supply has electrical protection features that are unmatched for critical servers.

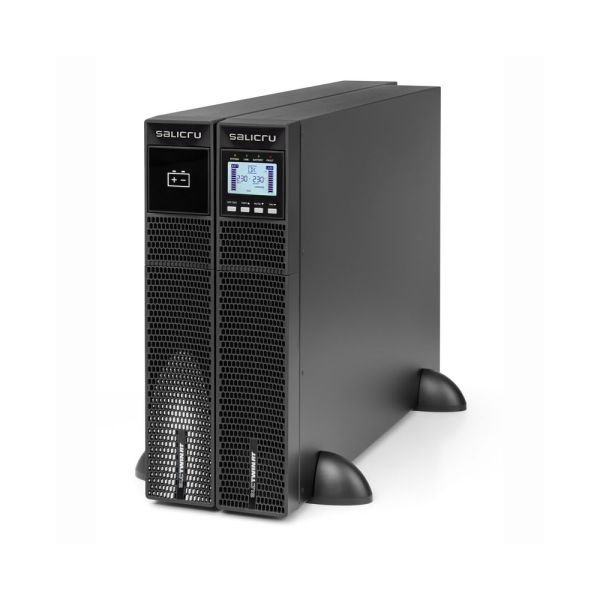

The dual tower/rack format can be used in any location and, with the built-in PDU strip, makes it easy to connect the loads that need to be protected. As a bonus, their output power factor (VA=W) is the same as their input power factor (VA=W), which increases the power density and reduces the space needed for the UPS to be installed.
The LCD screen is swivel-mounted to make it easier to move around. In terms of serial communications, they have USB, RS-232, and relay interfaces, as well as a smart slot that can be used to add an SNMP card, MODBUS, or potential-free contacts. There are also software packages that can be used to monitor and manage the devices that are being protected.
For applications that need a lot of battery power, extra battery modules and solutions with extra chargers can be used. For applications that need extra protection or more power, there is the option to connect up to three devices in parallel.
Features & Benefits:
Please Note: Rack Rail Kit sold separately
| Technical Specifications | |
|---|---|
| Technology | On-line double-conversion |
| Format | Convertible tower/rack |
| Input | |
| Voltage | 220 / 230 / 240 V |
| Voltage range | 110 ÷ 300 V up to 50% load |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±4 Hz |
| Total harmonic distortion (THDi) | ≤4% |
| Output | |
| Power factor | 1 (2) |
| Voltage | 208 / 220 / 230 / 240 V |
| Static accuracy | ±1% |
| Power (VA/W) | 8000 / 8000 |
| Total harmonic distortion (THDv) Linear load | <1% |
| Total harmonic distortion (THDv) Non~linear load | <4% |
| Synchronised frequency | ±4 Hz |
| Frequency accuracy (battery mode) | ±0.1 Hz |
| Eco-mode performance | ≥99% |
| Total performance in Online mode | ≥93 ÷ 94% |
| Admissible overloads | < 110% for 10 min / < 130% for 1 min / > 130 % for 1 s |
| Socket type | Terminals + PDU |
| Parallel | Yes, up to 3 units(3) |
| Static Bypass | |
| Voltage (V) | 208 / 220 / 230 / 240 V (1) |
| Frequency range | 50/60 Hz ±4 Hz |
| Battery | |
| Protection | Against power surges, undervoltages and alternating current components |
| Battery type | Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 7 ÷ 9 hours to 90% |
| Charger | |
| Temperature voltage compensation | Yes |
| Communication | |
| Ports | USB / RS-232 / relay |
| Intelligent slot | Smart slot for SNMP / potential-free contacts / MODBUS |
| Monitoring software | Yes, for Windows, Linux and Mac |
| Other Functions | |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| Operating Modes | |
| Frequency converter (CVCF) | Yes(4) |
| General | |
| Operating temperature | 0° C ÷ 40° C |
| Relative humidity | Up to 95%, non-condensing |
| Maximum operating altitude | 2,400 masl (power degradation up to 5,000 m) |
| Acoustic noise at 1 metre | < 60 dB |
| Standards | |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2(C3) |
| Operation | EN 62040-3 |
| Quality and environmental management | ISO 9001 & ISO 14001 |
| Dimensions | |
| Depth (mm) | 705 |
| Width (mm) | 438 |
| Height (mm) | 176 |
| Weight | |
| Weight (kg) | 74 |
(1) 90% power reduction for 208 V devices
(2) Except for devices with extended backup
(3) 90% power reduction
(4) 60% power reduction
