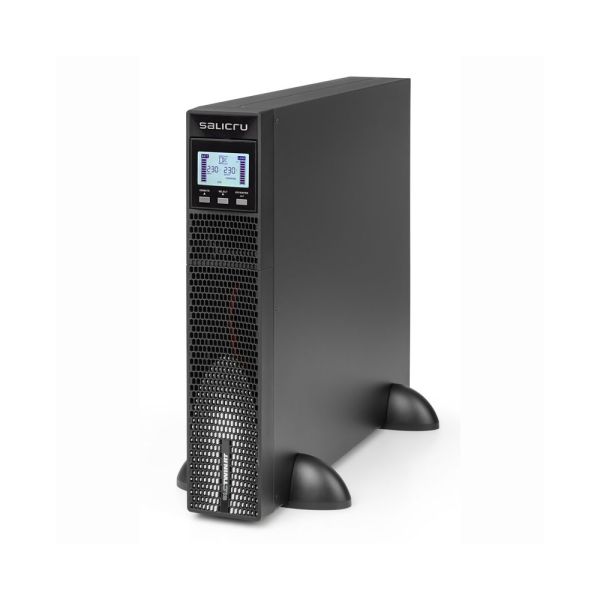

The SLC TWIN RT2 UPS series by Salicru is perfect for the protection of applications that require high-level security in the event of any type of electrical disturbance, such as IT servers, voice and data networks, CAD/CAM, document management, unified communications (UC), and video streaming, all in a compact format.
The SLC TWIN RT2 UPS series by Salicru is perfect for the protection of applications that require high-level security in the event of any type of electrical disturbance, such as IT servers, voice and data networks, CAD/CAM, document management, unified communications (UC), and video streaming, all in a compact format.
This uninterruptible power supply (UPS) is a cutting-edge continuity solution for the power protection of essential systems. It combines the most dependable online double-conversion technology available on the market with a unity output power factor (VA=W) to power systems with a large energy demand while maintaining great operating efficiency. It includes a 2U rack height that converts to a tower format, as well as a swivel-mount LCD display panel that adjusts to the needs of the orientation. Additional extended battery modules are also available for applications that demand more runtime.
In terms of communication, it has an RS-232/USB interface that is compatible with the HID protocol, as well as a smart slot that can be used to store an SNMP card, MODBUS cards, or free contacts. Software for monitoring and managing protected devices is also available. Other features include a frequency converter that can run at 50/60 or 60/50 Hz, an emergency stop (EPO), and outputs that can be set for critical and non-critical loads.
Features & Benefits:
Please Note: Rack Rail Kit sold separately
| Technical Specifications | |
|---|---|
| Technology | On-line double-conversion |
| Format | Convertible tower/rack |
| Input | |
| Rated voltage | 200 / 208 / 220 / 230 / 240 V (1) |
| Voltage range 60% load | 110 ÷ 300 V up to 60% load |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±10 Hz |
| Total harmonic distortion (THDi) | ≤5% |
| Auto~detection of frequency | Yes |
| Output | |
| Power factor | 1 |
| Waveform | Pure sine wave |
| Rated voltage | 200 / 208 / 220 / 230 / 240 V (1) |
| Voltage accuracy | ±1% |
| Power (VA/W) | 2000 / 2000 |
| Total harmonic distortion (THDv) | < 2% linear load / < 4% non-linear load |
| Synchronised frequency | ±3 Hz |
| Free running frequency | ±0.1 Hz |
| Frequency | 50 / 60 Hz |
| On-line performance | ≥89 ÷ 91% |
| Eco-mode performance | ≥95 ÷ 97% |
| Admissible overloads | < 130% for 5 min / < 140% for 30 s / <150 % for 1.5 s / 150 % for 100 ms |
| Socket type | IEC |
| No. Of sockets | 8 |
| Programmable sockets | Yes, for critical / non-critical loads (4/4) |
| Bypass | |
| Rated voltage | 200 / 208 / 220 / 230 / 240 V (1) |
| Frequency range | 50/60Hz ±10 Hz |
| Battery | |
| Battery type | Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 3 hours to 95% |
| Charger | |
| Temperature voltage compensation | Yes |
| Communication | |
| Ports | USB-HID / RS-232 |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |
| Indications | |
| Type | LCD + keypad |
| Other Functions | |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| ADSL/fax/modem transient protector | Yes |
| Operating Modes | |
| Frequency converter (CVCF) | Yes (2) |
| General | |
| Operating temperature | 0° C ÷ 55° C(3) |
| Relative humidity | Up to 95%, non-condensing |
| Maximum operating altitude | 2,400 masl (power degradation up to 5,000 m) |
| Acoustic noise at 1 metre | < 50 dB |
| Standards | |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2(C2) |
| Operation | EN 62040-3 |
| Quality and environmental management | ISO 9001 & ISO 14001 |
| Dimensions | |
| Depth (mm) | 490 |
| Width (mm) | 438 |
| Height (mm) | 88 |
| Weight | |
| Weight (kg) | 19.5 |
(1) 80% power reduction for 200 or 208 V devices
(2) 78% power reduction
(3) 4% power derating per each degree over 40ºC
