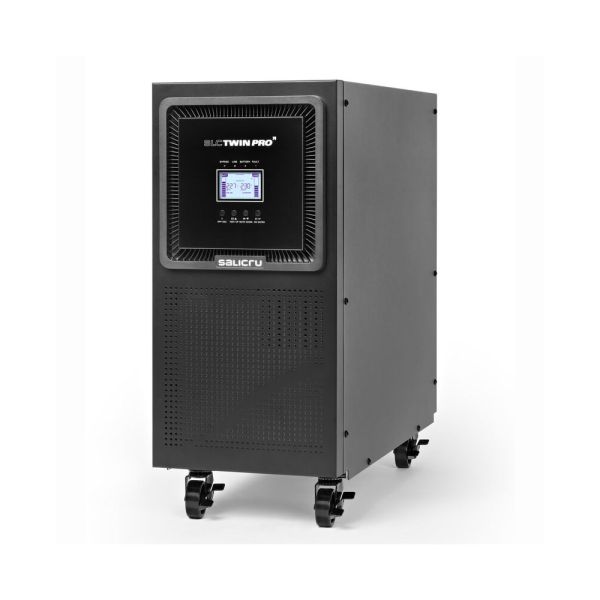

The SLC TWIN PRO2 UPS series by Salicru is the ideal solution for ensuring a safe power supply and protection to ERP systems, CRM solutions, intranets/extranets, and corporate networks in the event of a wide range of potential disruptions, which can cause irreparable damage or incur high costs to all of these critical systems.
The SLC TWIN PRO2 UPS series by Salicru is the ideal solution for ensuring a safe power supply and protection to ERP systems, CRM solutions, intranets/extranets, and corporate networks in the event of a wide range of potential disruptions, which can cause irreparable damage or incur high costs to all of these critical systems. This UPS utilises online double-conversion technology, which is the most up-to-date for protecting critical systems because it provides a fully stabilised and filtered sinusoidal supply voltage.
The solution is available in a tower configuration with a single-phase output voltage. The single-phase input provides a unitary output power factor, the most optimum for systems and environments with high energy needs. Another important feature is that it can be used in a variety of ways, which is made possible by the different operating modes: online, batteries, eco-mode, bypass, frequency converter, and parallel redundancy.
The control and monitoring options are diverse: on the one hand, an LCD display and keypad for local device operation, and on the other, various communication options (USB HID and RS-232 interfaces, as well as a slot for SNMP, RS-485, and AS-400 cards) that allow the UPS to be integrated into standard or virtualised platforms for management, incident notification, and remote maintenance.
Features & Benefits:
| Technical Specifications | |
|---|---|
| Technology | On-line double conversion |
| Format | Tower |
| Input / Output | |
| Input / Output | III / I |
| Input | |
| Voltage | 3 x 400 / 415 V (3F+N) |
| Voltage range | 3 x 190 ÷ 478+N (2) |
| Rated frequency | 50 / 60 Hz |
| Frequency range | ±10% |
| Total harmonic distortion (THDi) | <5% |
| Power factor | ≥0.99 |
| Output | |
| Power factor | 0.9 |
| Voltage | 208 / 220 / 230 / 240 V |
| Static accuracy | ±1% |
| Power (VA/W) | 8000 / 7200 |
| Total harmonic distortion (THDv) Linerar load | ≤2% |
| Total harmonic distortion (THDv) Non~linear load | ≤5% |
| Synchronised frequency | ±4 Hz |
| Frequency accuracy (battery mode) | ±0.05 Hz |
| Total performance in On-line mode | 88% ÷ 90% |
| Admissible overloads | Up to 110% for 10 min; 130% for 1 min |
| Crest factor | 3 a 1 |
| Parallel | Yes, up to 3 units(3) |
| Manual Bypass | |
| Type | No breaks |
| Static Bypass | |
| Type and activation criteria | Hybrid |
| Transfer time | Nil |
| Battery | |
| Protection | Against power surges, undervoltages and alternating current components |
| Battery type | Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 9 hours to 90% |
| Charger | |
| Temperature voltage compensation | Yes |
| Communication | |
| Ports | USB, RS-232 and relay |
| Intelligent slot | Yes, ready for SNMP / AS400 / RS485-Modbus |
| Monitoring software | Downloadable for Windows, Unix, Linux and Mac |
| Other Functions | |
| Cold start (start-up from batteries) | Yes |
| Operating Modes | |
| Eco-mode | Yes |
| Frequency converter (CVCF) | Yes |
| General | |
| Operating temperature | 0° C ÷ 40° C |
| Relative humidity | Up to 95%, non-condensing |
| Maxium operating altitude | 2,400 masl (power degradation up to 5,000 m) |
| Acoustic noise at 1 metre | < 58 dB |
| Standards | |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2 (C3) |
| Operation | VFI (EN-62040-3) |
| Quality and environmental management | ISO-9001 & ISO-14001 |
| Dimensions | |
| Depth (mm) | 592 |
| Width (mm) | 250 |
| Height (mm) | 576 |
| Weight | |
| Weight (kg) | 84 |
(1) Power reduction to 90% for 208 V input
(2) With 50% load
(3) Power reduction to 90%
(4) Power reduction to 60%
(5) Power reduction to 40%
