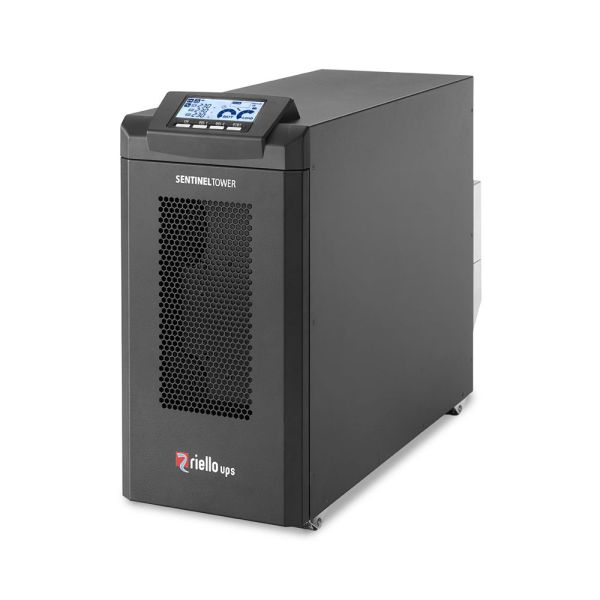

Riello STW 10000 ER Sentinel Tower 10kVA/10kW Online UPS, Extra Charger - No Internal Battery

ETA confirmed on order

ETA confirmed on order

SKU:
STW10000ER
MPN:
STW 10000 ER
£2,300.81 £1,917.34

The Sentinel Tower is the best solution for ensuring maximum power reliability for mission-critical systems such as safety devices, telecommunications equipment, and information technology systems.


Free Express Delivery Over £99*  (1 - 2 Days)

The Sentinel Tower is the best solution for ensuring maximum power reliability for mission-critical systems such as safety devices, telecommunications equipment, and information technology systems. The STW is made with cutting-edge parts and technology to make sure that powered loads are as safe as possible while affecting other systems as little as possible and saving as much energy as possible.

The STW 8000 has single-phase/three-phase input and single-phase output and employs online double-conversion technology, in which the load is continuously powered by the inverter, which produces a filtered and frequency-stabilized sinusoidal voltage. Input and output filters provide additional safeguards against power outages and lightning strikes.

In terms of technology and performance, the STW is one of the leading UPS series on the market today, with a three-level inverter that achieves 95% efficiency and a unity output power factor of 1, which increases system and device efficiency while reducing power system losses. The STW has an Economy Mode and a Smart Active Mode that can be activated and deactivated. It also has a new LCD display for custom diagnostics, RS232 and USB ports with Powershield3 software, an ESD input, and a slot for connecting other boards.

Features & Benefits:

  • Output power capacity: 10000 Watts / 10kVA
  • Extended runtime model - No internal batteries (must be paired with an external battery cabinet)
  • Unity Power factor 1 kW = kVA
  • Compact tower format
  • Parallel up to 3 UPS for redundancy
  • 95% online efficiency decreases energy waste
  • Optional battery extension packs extend runtime
  • Ideal for Blade servers with its ability to handle non-linear loads
  • Easily choose between Online, Eco, & Smart Active modes
  • Intuitive LCD display panel
  • USB / DB9 with RS232 & contacts / Slot for communications interface / REPO & Input contact
  • Input: Terminal block
  • Output: Terminal block, (2) IEC 320 C13
  • 3-year warranty



INPUT

Rated power 10000 VA
Voltage 380 / 400 / 415 V (3W+N+PE) - 220 / 230 / 240 V (1W+N+PE)
Voltage tolerance 400 V ±20% / 230 V ±20%
Frequency 50 / 60 Hz ±5
Power factor >0.98
Current distorsion ≤5% for single-phase input

BY PASS

Voltage tolerance 180 / 264 V (selectable in ECO Mode or SMART ACTIVE Mode)
Frequency tolerance Selected frequency ±5% (selectable by user)
OUTPUT and INVERTER OUTPUT
Rated power 10000 VA
Active power 10000 W
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinusoidal
Frequency 50 / 60 Hz selectable
Voltage distortion with non-linear load <3%
Voltage distortion with linear load <1%

BATTERIES

Type VRLA AGM maintenance-free lead based
Typical recharge time 4-6 h
Maximum recharge current 6 A

ENVIRONMENTAL

Color Black RAL 9005
Communication USB / RS232 / slot for communications interface / REPO + Input contact
Accessories provided USB cable
Surge capability 1 VDR x 300 J
Protections Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery
Noise (at 1 m) <48 [bBA] (ECO Mode)
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Output sockets Terminal block + 2 IEC 320 C13
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111

DATA

Weight 28 kg
Dimensions (h w d) 250x698x500 mm
