Available to Order

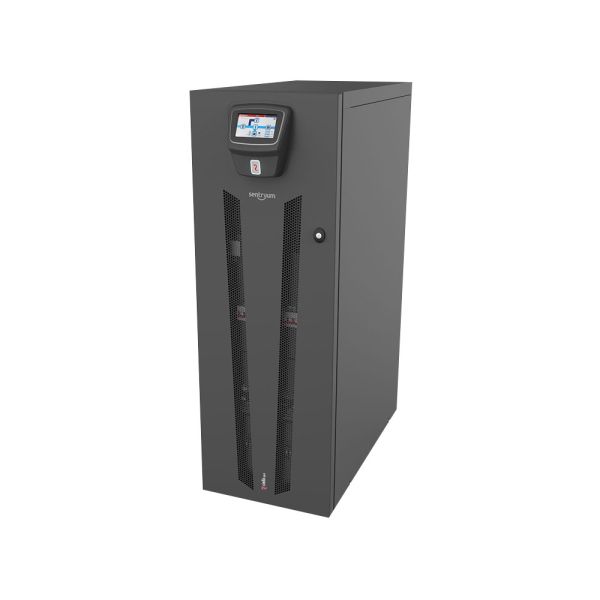

The Sentryum S3T Xtend series in the 10-40 kVA range is the embodiment of versatile power protection, designed to cater to the nuanced needs of businesses that prioritise both efficiency and flexibility. This series is tailor-made for environments where operational continuity is paramount, offering a scalable and adaptable three-phase input and output UPS solution that stands ready to protect medium-sized data centres, sophisticated industrial setups, and critical infrastructures.
The Sentryum S3T Xtend series in the 10-40 kVA range is the embodiment of versatile power protection, designed to cater to the nuanced needs of businesses that prioritise both efficiency and flexibility. This series is tailor-made for environments where operational continuity is paramount, offering a scalable and adaptable three-phase input and output UPS solution that stands ready to protect medium-sized data centres, sophisticated industrial setups, and critical infrastructures.
With efficiency as a hallmark, the Xtend series significantly reduces operating costs and environmental impact, promoting a greener footprint while ensuring your operations remain uninterrupted. The adaptability of the Xtend series is unmatched, allowing for a customisable power protection solution that aligns perfectly with your specific requirements, offering peace of mind that your critical operations are shielded against power anomalies with utmost precision.
The series boasts an intuitive design that simplifies integration, coupled with advanced communication features that enhance monitoring and management capabilities. This ensures that businesses can maintain a proactive stance on power protection, securing their critical operations with a solution that not only meets today's demands but is also prepared for tomorrow's challenges.
| Sentryum S3T XTD 10 Specifications | ||
|---|---|---|
| INPUT | ||
| Rated Power | 10000 VA | |
| Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | 400 ±20% @ full load (for wider tolerance conditions apply) | |
| Frequency Tolerance | 40 - 72 Hz | |
| Power Factor | 0.99 | |
| BY PASS | ||
| Rated Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N) | |
| Rated Frequency | 50 or 60 Hz (selectable) | |
| Frequency Tolerance | ±5% (selectable) | |
| Number Phases | 3 + N | |
| OUTPUT & INVERTER OUTPUT | ||
| Rated Power | 10000 VA / 10000 W | |
| Output Current | 16 (bypass) A - 14.5 (inverter) A | |
| Crest Factor (Ipeak/Irms) | 3 : 1 | |
| Waveform | Sinusoidal | |
| Static Stability | ±0.5% | |
| Dynamic Stability | EN 62040-3 class performance 1 non-linear load | |
| Frequency | 50 or 60 Hz | |
| Voltage Distortion | With Nonlinear Load | ≤1.5% |
| Voltage Distortion | With Linear Load | <1% |
| BATTERIES | ||
| Type | VRLA AGM/GEL/NiCd/Li-ion/Supercaps | |
| Type of Charging | One level, Two level, Cyclic recharge (selectable) | |
| ENVIRONMENTAL | ||
| Color | RAL 7016 | |
| Communication | UPS status led bar - Graphic touch screen display - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays | |
| Protection Rating | IP20 | |
| Efficiency | Up to 99% (Line-Interactive/Smart Active) | |
| Noise (at 1 m) | < 40 [dBA ±2] (SMART ACTIVE) | |
| Operating Temperature | 0 °C - +40 °C | |
| Relative Humidity | 5-95% non-condensing | |
| Standards | European directives: LV 2014/35/EU, EMC 2014/30/EU; Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant. Classified in accordance with IEC EN 62040-3 VFI - SS - 111. | |
| DATA | ||
| Weight (Exc. Batteries) | 103 kg | |
| Dimensions | 1320x440x840 mm | |
Sentryum Brochure & Datasheet
10-120 kVA
