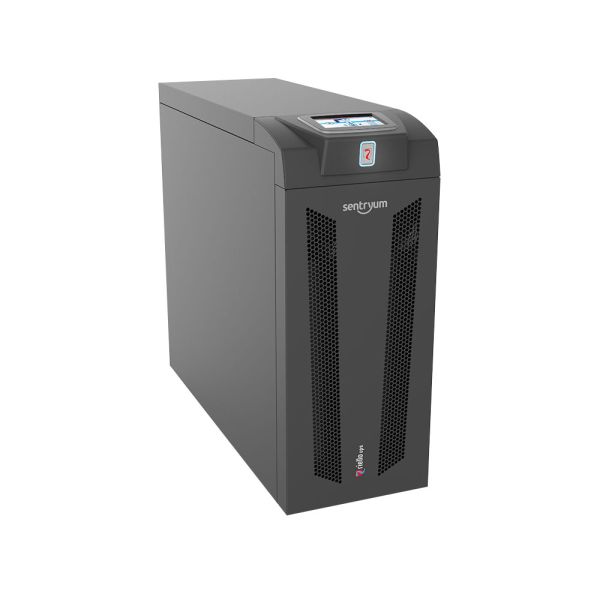

Step into the realm of advanced power protection with the Riello UPS Sentryum S3T Compact series, meticulously designed to offer a robust 10-20 kVA/kW of three-phase input and output UPS technology. This series is the quintessence of innovation, tailored for small to medium data centres and critical applications where space is at a premium yet performance cannot be compromised.
Step into the realm of advanced power protection with the Riello UPS Sentryum S3T Compact series, meticulously designed to offer a robust 10-20 kVA/kW of three-phase input and output UPS technology. This series is the quintessence of innovation, tailored for small to medium data centres and critical applications where space is at a premium, yet performance cannot be compromised.
The Compact series stands as a testament to efficiency, boasting an operational efficiency of up to 96.5%. This not only translates to significant energy savings but also positions the system as a champion of eco-friendly power protection, reducing the carbon footprint of your operations. The design is compact, yet it packs a powerful punch, ensuring your critical systems are safeguarded with precision and reliability.
Integration and adaptability are at the heart of the Sentryum Compact's design. It features advanced connectivity options, making it a breeze to integrate into existing infrastructures. This ensures that you have comprehensive control and monitoring capabilities at your fingertips, allowing for a proactive approach to power protection. The system is built with the future in mind, offering scalability to grow alongside your business needs.
| Sentryum S3T CPT 10 Specifications | ||
|---|---|---|
| INPUT | ||
| Rated Power | 10000 VA | |
| Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | 400 ±20% @ full load (for wider tolerance conditions apply) | |
| Frequency Tolerance | 40 - 72 Hz | |
| Power Factor | 0.99 | |
| BY PASS | ||
| Rated Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N) | |
| Rated Frequency | 50 or 60 Hz (selectable) | |
| Frequency Tolerance | ±5% (selectable) | |
| Number Phases | 3 + N | |
| OUTPUT & INVERTER OUTPUT | ||
| Rated Power | 10000 VA / 10000 W | |
| Output Current | 16 (bypass) A - 14.5 (inverter) A | |
| Crest Factor (Ipeak/Irms) | 3 : 1 | |
| Waveform | Sinusoidal | |
| Static Stability | ±0.5% | |
| Dynamic Stability | EN 62040-3 class performance 1 non-linear load | |
| Frequency | 50 or 60 Hz | |
| Voltage Distortion | With Nonlinear Load | ≤1.5% |
| Voltage Distortion | With Linear Load | <1% |
| BATTERIES | ||
| Type | VRLA AGM/GEL/NiCd/Li-ion/Supercaps | |
| Type of Charging | One level, Two level, Cyclic recharge (selectable) | |
| ENVIRONMENTAL | ||
| Color | RAL 7016 | |
| Communication | UPS status led bar - Graphic touch screen display - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays | |
| Protection Rating | IP20 | |
| Efficiency | Up to 99% (Line-Interactive/Smart Active) | |
| Noise (at 1 m) | < 40 [dBA ±2] (SMART ACTIVE) | |
| Operating Temperature | 0 °C - +40 °C | |
| Relative Humidity | 5-95% non-condensing | |
| Standards | European directives: LV 2014/35/EU, EMC 2014/30/EU; Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant. Classified in accordance with IEC EN 62040-3 VFI - SS - 111. | |
| DATA | ||
| Weight (Exc. Batteries) | 48 kg | |
| Dimensions | 700x280x840 mm | |
Sentryum Brochure & Datasheet
10-120 kVA
