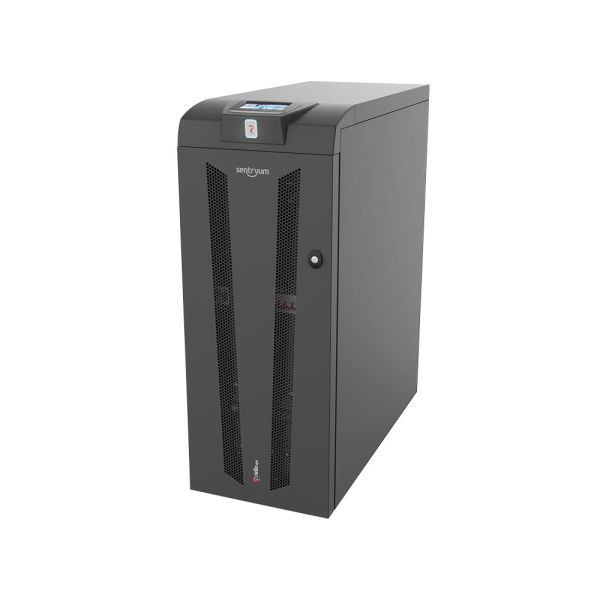

Riello S3M 10 ACT A0 Sentryum Active 10kVA/10kW Online UPS, No Internal Batteries

ETA confirmed after ordering or call: 0800 254 5655

ETA confirmed after ordering or call: 0800 254 5655

SKU:
S3M10ACTA0
MPN:
S3M 10 ACT A0
£3,910.57 £3,258.81

The Sentryum S3M series provides the best combination of power availability, energy efficiency, and overall performance, resulting in lower installation and operating costs.

Free Express Delivery Over £99*  (1 - 2 Days)

The Sentryum S3M series provides the best combination of power availability, energy efficiency, and overall performance, resulting in lower installation and operating costs. It is the most recent Riello UPS development, resulting in a third-generation transformer-free UPS that was first introduced to the market over two decades ago. This ultimate solution has a unity output power factor (1 kVA = 1 kW) and online double conversion technology that meets VFI-SS-111 standards (as set out in standard IEC EN 62040-3). The Sentryum S3M series is a transformer-free uninterruptible power supply (UPS) with single-phase or three-phase input and single-phase output.

Sentryum is designed and built with cutting-edge technology and components. It employs advanced technologies such as DSP (digital signal processor), a dual-core microprocessor, three-level inverter circuits, and resonant control to provide maximum protection to critical loads while maintaining optimised energy savings. It is possible to reduce inverter output harmonic voltage distortion (1% at a resistive linear load and 1.5% at a non-linear load) and provide rapid response to all load variations with a unique control system, ensuring an outstanding sinewave under all conditions. Furthermore, Riello UPS's technological advances in digital control and power components help to reduce the grid's impact. Sentryum solves installation issues in systems where the power supply has limited power, the UPS is supported by a generator, or there are compatibility issues with loads that generate harmonic currents.

The S3M 10 ACT A0 model is part of the Active (ACT) solution, which provides optimised flexibility to meet various power requirements and battery autonomy. The offered solution is extremely compact but extremely powerful, with the ability to deliver up to 20 kVA (at unity power factor) and construct one or two levels of internal battery backup time.

Features & Benefits:

  • Output power capacity: 10000 Watts / 10kVA
  • Active (ACT) cabinet - 102.5 cm x 38 cm x 85 cm (H x W x D)
  • 0.35m² footprint
  • 1-2 internal battery string - space for 2x40 blocks
  • No internal batteries
  • Unity Power factor 1 kW = kVA
  • Parallel up to 8 UPS for redundancy
  • 96.5% online efficiency decreases energy waste
  • Optional battery extension packs extend runtime
  • Ideal for Blade servers with its ability to handle non-linear loads
  • Easily choose between Online, Eco, & Smart Active modes
  • Large 5" graphical touchscreen display & LED indicator
  • USB / RS232 / Contact interface / 2 x slot for communications interface
  • Single or three-phase input, single-phase output
  • 3-year warranty

Sentryum S3M ACT 10 Specifications
INPUT
Rated Power 10000 VA
Voltage 380 / 400 / 415 V three-phase + N - 220 / 230 / 240 V single-phase + N
Voltage Tolerance 230 / 400 V ±20% @ full load (for wider tolerance conditions apply)
Frequency Tolerance 40 - 72 Hz
Power Factor 0.99
BY PASS
Rated Voltage 220 / 230 / 240 V single-phase + N
Voltage Tolerance From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N)
Rated Frequency 50 or 60 Hz (selectable)
Frequency Tolerance ±5% (selectable)
Number Phases 1 + N
OUTPUT & INVERTER OUTPUT
Rated Power 10000 VA / 10000 W
Output Current 48 (bypass) A - 43 (inverter) A
Crest Factor (Ipeak/Irms) 3 : 1
Waveform Sinusoidal
Static Stability ±0.5%
Dynamic Stability EN 62040-3 class performance 1 non-linear load
Frequency 50 or 60 Hz
Voltage Distortion With Nonlinear Load ≤1.5%
Voltage Distortion With Linear Load <1%
BATTERIES
Type VRLA AGM/GEL/NiCd/Li-ion/Supercaps
Type of Charging One level, Two level, Cyclic recharge (selectable)
ENVIRONMENTAL
Color RAL 7016
Communication UPS status led bar - Graphic touch screen display - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays
Protection Rating IP20
Efficiency Up to 99% (Line-Interactive/Smart Active)
Noise (at 1 m) < 40 [dBA ±2] (SMART ACTIVE)
Operating Temperature 0 °C - +40 °C
Relative Humidity 5-95% non-condensing
Standards European directives: LV 2014/35/EU, EMC 2014/30/EU; Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant. Classified in accordance with IEC EN 62040-3 VFI - SS - 111.
DATA
Weight (Exc. Batteries) 72 kg
Dimensions 1025x380x850 mm
