The Sentryum S3M series provides the best combination of power availability, energy efficiency, and overall performance, resulting in lower installation and operating costs.
The Sentryum S3M series provides the best combination of power availability, energy efficiency, and overall performance, resulting in lower installation and operating costs. It is the most recent Riello UPS development, resulting in a third-generation transformer-free UPS that was first introduced to the market over two decades ago. This ultimate solution has a unity output power factor (1 kVA = 1 kW) and online double conversion technology that meets VFI-SS-111 standards (as set out in standard IEC EN 62040-3). The Sentryum S3M series is a transformer-free uninterruptible power supply (UPS) with single-phase or three-phase input and single-phase output.
Sentryum is designed and built with cutting-edge technology and components. It employs advanced technologies such as DSP (digital signal processor), a dual-core microprocessor, three-level inverter circuits, and resonant control to provide maximum protection to critical loads while maintaining optimised energy savings. It is possible to reduce inverter output harmonic voltage distortion (1% at a resistive linear load and 1.5% at a non-linear load) and provide rapid response to all load variations with a unique control system, ensuring an outstanding sinewave under all conditions. Furthermore, Riello UPS's technological advances in digital control and power components help to reduce the grid's impact. Sentryum solves installation issues in systems where the power supply has limited power, the UPS is supported by a generator, or there are compatibility issues with loads that generate harmonic currents.

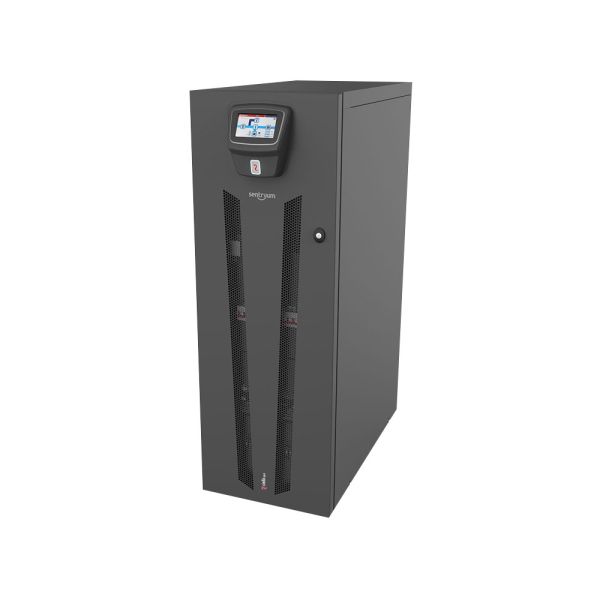

The S3M 10 XTD A0 OT model is an Xtend (XTD) version, which is the most adaptable solution for meeting installation and power demands. It is possible to build up to three levels of battery backup time in a very small footprint. Furthermore, the mechanical design allows for the installation of an isolation transformer or the simple change of the degree of protection from IP20 to IP21 or even IP31.
Features & Benefits:
| Sentryum S3M XTD 10 Specifications | ||
|---|---|---|
| INPUT | ||
| Rated Power | 10000 VA | |
| Voltage | 380 / 400 / 415 V three-phase + N - 220 / 230 / 240 V single-phase + N | |
| Voltage Tolerance | 230 / 400 V ±20% @ full load (for wider tolerance conditions apply) | |
| Frequency Tolerance | 40 - 72 Hz | |
| Power Factor | 0.99 | |
| BY PASS | ||
| Rated Voltage | 220 / 230 / 240 V single-phase + N | |
| Voltage Tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N) | |
| Rated Frequency | 50 or 60 Hz (selectable) | |
| Frequency Tolerance | ±5% (selectable) | |
| Number Phases | 1 + N | |
| OUTPUT & INVERTER OUTPUT | ||
| Rated Power | 10000 VA / 10000 W | |
| Output Current | 48 (bypass) A - 43 (inverter) A | |
| Crest Factor (Ipeak/Irms) | 3 : 1 | |
| Waveform | Sinusoidal | |
| Static Stability | ±0.5% | |
| Dynamic Stability | EN 62040-3 class performance 1 non-linear load | |
| Frequency | 50 or 60 Hz | |
| Voltage Distortion | With Nonlinear Load | ≤1.5% |
| Voltage Distortion | With Linear Load | <1% |
| BATTERIES | ||
| Type | VRLA AGM/GEL/NiCd/Li-ion/Supercaps | |
| Type of Charging | One level, Two level, Cyclic recharge (selectable) | |
| ENVIRONMENTAL | ||
| Color | RAL 7016 | |
| Communication | UPS status led bar - Graphic touch screen display - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays | |
| Protection Rating | IP20 | |
| Efficiency | Up to 99% (Line-Interactive/Smart Active) | |
| Noise (at 1 m) | < 40 [dBA ±2] (SMART ACTIVE) | |
| Operating Temperature | 0 °C - +40 °C | |
| Relative Humidity | 5-95% non-condensing | |
| Standards | European directives: LV 2014/35/EU, EMC 2014/30/EU; Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant. Classified in accordance with IEC EN 62040-3 VFI - SS - 111. | |
| DATA | ||
| Weight (Exc. Batteries) | 103 kg | |
| Dimensions | 1320x440x840 mm | |
Sentryum Brochure & Datasheet
10-120 kVA
