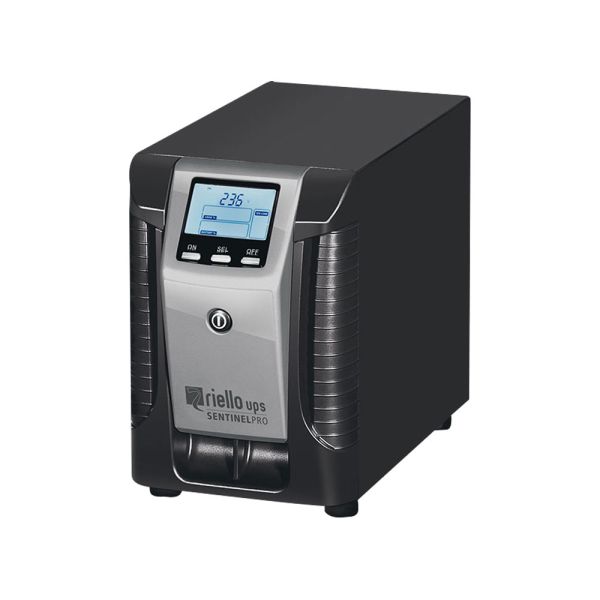

The Sentinel Pro UPS by Riello features a compact tower format and online double-conversion power protection for critical servers, data processing IT systems, and telecom networks. It can withstand a wide range of input voltages from 140 V to 240 V without battery assistance. Cold Start allows UPS to start without a mains supply.
The Sentinel Pro UPS by Riello features a compact tower format and online double-conversion power protection for critical servers, data processing IT systems, and telecom networks. It can withstand a wide range of input voltages from 140 V to 240 V without battery assistance. Cold Start allows UPS to start without a mains supply.
The Sentinel Pro delivers reliable power to edge applications with its high power density, simple plug and play installation, and intuitive LCD display panel and user interface. Modern real-time controls automatically alter fan speed based on load. This keeps the UPS's noise level below 40 dBA, allowing you to operate uninterruptedly.
An emergency function assures the operation of emergency systems such as emergency lighting, fire detection and extinguishing systems, and alarms. When the main power fails, the inverter starts powering the loads gradually (Soft Start) to avoid overload. For medium-voltage coils, Sentinel Pro can be installed in transformer rooms. It can be used to power these coils.
Features & Benefits:
*The warranty period commences on the invoice date and covers any mechanical faults or failures.
Input | |
|---|---|
| Rated power | 700 VA |
| Voltage | 220 / 230 / 240 V |
| Voltage tolerance | 230 V ±20% |
| Frequency | 50 / 60 Hz |
| Frequency tolerance | 50 Hz ±5% / 60 Hz ±5% |
| Power factor | >0.99 |
| Current distorsion | ≤7% |
By Pass | |
| Voltage tolerance | 180 / 264 V |
| Frequency tolerance | Frequency selected (from ±1.5 Hz to ±5 Hz configurable) |
Output And Inverter Output | |
| Rated power | 700 VA |
| Active power | 630 W |
| Number phases | 1 |
| Crest factor (Ipeak/Irms) | 0.125694444444444 |
| Waveform | Sinusoidal |
| Frequency | Selectable: 50 Hz or 60 Hz or self-learning |
| Voltage distortion with non-linear load | <4% |
| Voltage distortion with linear load | <2% |
Overload Times | |
| Load = 150% | 1 sec. |
| Load = 125% | 5 sec. |
Batteries | |
| Type | VRLA AGM maintenance-free lead based; Supercaps |
| Typical recharge time | 2-4 h |
Environmental | |
| Color | Black |
| Communication | USB / DB9 with RS232 and contacts / Slot for communications interface |
| Accessories provided | Power cable, IEC-IEC cable, USB cable, safety manual, quick start guide |
| Surge capability | 300 J |
| Marks | CE, GS/NEMKO |
| Line-Interactive/Smart Active efficiency | 0.98 |
| Noise (at 1 m) | <40 [bBA] (ECO Mode) |
| Operating temperature | 0 °C - +40 °C |
| Relative humidity | 5-95% non-condensing |
| Standards | European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 |
Data | |
| Weight | 10.9 kg |
| Dimensions (h w d) | 235x158x422 mm |
Sentinel Pro Brochure & Data Sheet
Sentinel Pro User Manual
For Serial number MZ01VOD20001 and following
