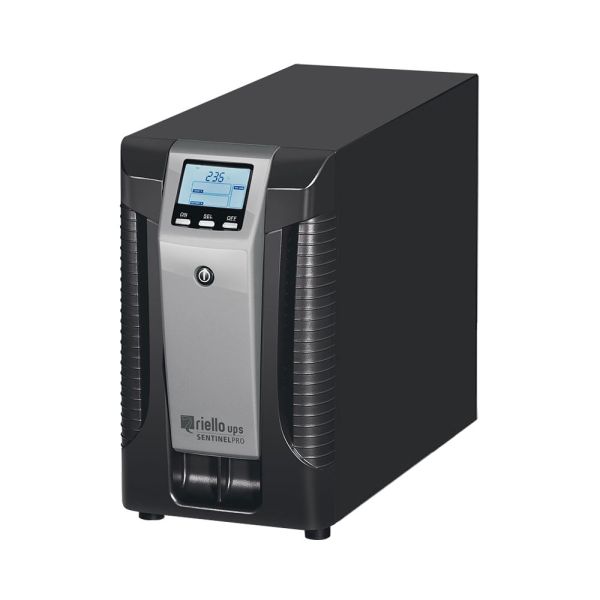

Riello SEP 2200 Sentinel Pro 2200VA 230V Online UPS

Next Day Delivery

Next Day Delivery

SKU:
SEP2200
MPN:
SEP 2200
£609.58 £507.98
The Sentinel Pro UPS by Riello features a compact tower format and online double-conversion power protection for critical servers, data processing IT systems, and telecom networks. It can withstand a wide range of input voltages from 140 V to 240 V without battery assistance. Cold Start allows UPS to start without a mains supply.
Free Express Delivery Over £99*  (1 - 2 Days)
Free Maintenance Plan

24/7 Technical Support Number

Discounted Labour

Discounted Parts

Next Business Day Engineer Response

Click here for more information

The Sentinel Pro UPS by Riello features a compact tower format and online double-conversion power protection for critical servers, data processing IT systems, and telecom networks. It can withstand a wide range of input voltages from 140 V to 240 V without battery assistance. Cold Start allows UPS to start without a mains supply.

The Sentinel Pro delivers reliable power to edge applications with its high power density, simple plug and play installation, and intuitive LCD display panel and user interface. Modern real-time controls automatically alter fan speed based on load. This keeps the UPS's noise level below 40 dBA, allowing you to operate uninterruptedly.

An emergency function assures the operation of emergency systems such as emergency lighting, fire detection and extinguishing systems, and alarms. When the main power fails, the inverter starts powering the loads gradually (Soft Start) to avoid overload. For medium-voltage coils, Sentinel Pro can be installed in transformer rooms. It can be used to power these coils.

Battery Replacement Kit - RBKRUPS20



Extended Runtime Options

Extend the runtime of the SEP 2200
SEP 2200 8 minutes
SEP 2200 with 1 x BB SEP 72V A3 16 minutes
SEP 2200 with 1 x BB SEP 72V M1 27 minutes
SEP 2200 with 2 x BB SEP 72V M1 55 minutes
For a longer runtime, try the SEP 3000



Features & Benefits:

  • 5 YEAR EXTENDED WARRANTY*
  • Output power capacity: 1980 Watts / 2200VA
  • 6-minute backup time at full load
  • Runtime expandability with battery modules
  • Double conversion topology
  • Monitors and controls voltage and frequency
  • With a 0.9 power factor, it protects more devices
  • Simple plug and play installation
  • Compact tower design is ideal for Edge application
  • ECO and Smart Active modes reduce power consumption
  • Emergency function
  • Low noise level
  • Cold Start battery start up
  • Fully configurable using software
  • Emergency Power Off (EPO)
  • 1 optional communication card slot
  • 1 USB port and 1 serial port
  • Output Connections - 8 IEC 320 C13
  • Input Connections - 1 IEC 320 C20

*The warranty period commences on the invoice date and covers any mechanical faults or failures.

Input

Rated power 2200 VA
Voltage 220 / 230 / 240 V
Voltage tolerance 230 V ±20%
Frequency 50 / 60 Hz
Frequency tolerance 50 Hz ±5% / 60 Hz ±5%
Power factor >0.99
Current distorsion =7%

By Pass

Voltage tolerance 180 / 264 V
Frequency tolerance Frequency selected (from ±1.5 Hz to ±5 Hz con?gurable)

Output And Inverter Output

Rated power 2200 VA
Active power 1980 W
Number phases 1
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinusoidal
Frequency Selectable: 50 Hz or 60 Hz or self-learning
Voltage distortion with non-linear load <4%
Voltage distortion with linear load <2%

Overload Times

Load = 150% 1 sec.
Load = 125% 5 sec.

Batteries

Type VRLA AGM maintenance-free lead based; Supercaps
Typical recharge time 2-4 h

Environmental

Color Black
Communication USB / DB9 with RS232 and contacts / Slot for communications interface
Accessories provided Power cable~ IEC-IEC cable~ USB cable~ safety manual~ quick start guide
Surge capability 300 J
Marks CE
