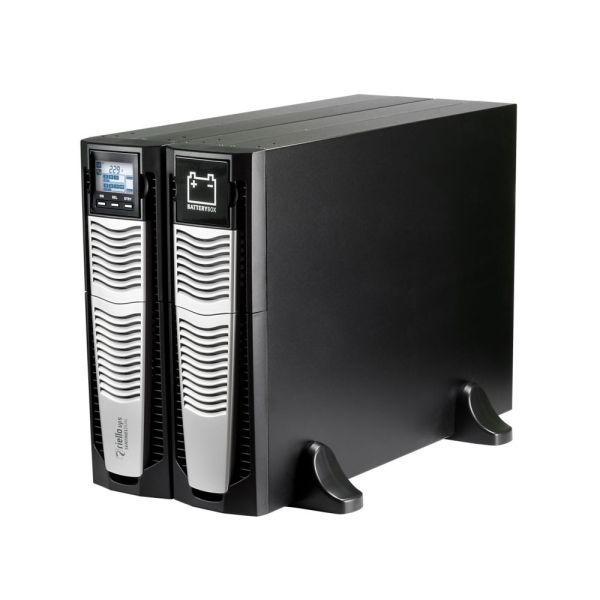

Riello SDU 10000 DI Sentinel Dual 10kVA/10kW 230V Online UPS, 6U Rack/Tower, Dual Input

Contact us for lead-time

Contact us for lead-time

SKU:
SDU10000DI
MPN:
SDU 10000 DI
£2,924.41 £2,437.01
The Sentinel Dual UPS by Riello features a versatile rack/tower format and online double-conversion power protection for critical servers, data storage systems, sensitive medical systems, industrial machinery, and emergency lighting systems. It is also possible to swap out the batteries without having to turn off the UPS or interrupt the load (Hot Swap), which ensures continuity of critical loads.
Free Express Delivery Over £99*  (1 - 2 Days)

The Sentinel Dual UPS by Riello features a versatile rack/tower format and online double-conversion power protection for critical servers, data storage systems, sensitive medical systems, industrial machinery, and emergency lighting systems. It is also possible to swap out the batteries without having to turn off the UPS or interrupt the load (Hot Swap), which ensures continuity of critical loads.

The Sentinel Dual delivers reliable power to edge applications with its high power density, simple plug and play installation, and intuitive LCD display panel and user interface. To fit your preferences, you may effortlessly swivel the backlit LCD display and control panel 90 degrees. Modern real-time controls automatically alter fan speed based on load.

An emergency function assures the operation of emergency systems such as emergency lighting, fire detection and extinguishing systems, and alarms. When the main power fails, the inverter starts powering the loads gradually (Soft Start) to avoid overload. For medium-voltage coils, Sentinel Dual can be installed in transformer rooms. It can be used to power these coils.

Features & Benefits:

  • Output power capacity: 10000 Watts / 10kVA
  • 3U Rack Height
  • 4-minute backup time at full load
  • Dual input supplies configuration
  • Runtime expandability with battery modules
  • Double conversion topology
  • Monitors and controls voltage and frequency
  • With a unity W=VA power factor, it protects more devices
  • Handles non-linear loads, perfect for Blade servers
  • Compact design, perfect for Edge applications
  • Versatile rackmount or freestanding tower format
  • ECO and Smart Active modes reduce power consumption
  • Emergency function
  • Low noise level
  • Fully configurable using software
  • 1 optional communication card slot
  • 1 optional parallel card slot
  • 1 USB port and 1 serial port
  • Three-year warranty
  • Output Connections - Terminal block, 2 IEC 320 C13, 3 IEC 320 C19
  • Input Connections - Terminal block

Please Note: Rack Rail Kit is sold separately. Two kits are required for this product.

Input

Dual Input Yes
Rated power 10000 VA
Voltage 220 / 230 / 240 V
Voltage tolerance 230 V ±20%
Frequency 50 / 60 Hz ±5
Power factor >0.98
Current distorsion =2%

By Pass

Voltage tolerance 180 / 264 V (selectable in ECO Mode or SMART ACTIVE Mode)
Frequency tolerance Selected frequency ±5% (selectable by user)

Output And Inverter Output

Rated power 10000 VA
Active power 10000 W
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinusoidal
Frequency 50 / 60 Hz selectable
Voltage distortion with non-linear load <3%
Voltage distortion with linear load <1%

Batteries

Type VRLA AGM maintenance-free lead based
Typical recharge time 4-6 h

Environmental

Color Black RAL 9005
Communication USB / RS232 / slot for communications interface / REPO + Input contact
Accessories provided USB cable; handles kit
Protections Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery
Noise (at 1 m) <48 [bBA] (ECO Mode)
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Output sockets Terminal block + 2 IEC 320 C13 + 3 IEC 320 C19
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111

Data

Weight 20+62 kg
Dimensions (h w d) 2x (448x131x640) Tower - 2x (3Ux19inx640) Rack mm
Input phases 1
Output phases 1
