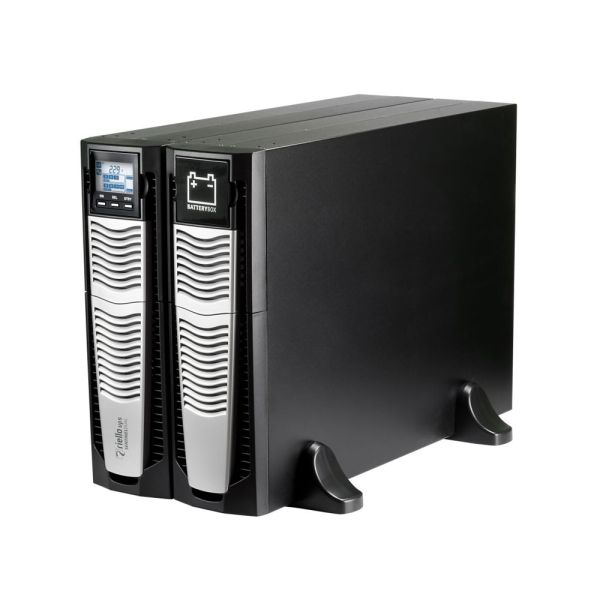

Riello SDU 10000 TM Sentinel Dual 10kVA/10kW 400V Online UPS - 3Ph Input, 1Ph Output

3 in stock for 1-2 Day Delivery

3 in stock for 1-2 Day Delivery

SKU:
SDU10000TM
MPN:
SDU 10000 TM
£3,131.68 £2,609.73

The Sentinel Dual UPS by Riello features a versatile rack/tower format and online double-conversion power protection for critical servers, data storage systems, sensitive medical systems, industrial machinery, and emergency lighting systems. It is also possible to swap out the batteries without having to turn off the UPS or interrupt the load (Hot Swap), which ensures continuity of critical loads.

Free Express Delivery Over £99*  (1 - 2 Days)

The Sentinel Dual UPS by Riello features a versatile rack/tower format and online double-conversion power protection for critical servers, data storage systems, sensitive medical systems, industrial machinery, and emergency lighting systems. It is also possible to swap out the batteries without having to turn off the UPS or interrupt the load (Hot Swap), which ensures continuity of critical loads.

The Sentinel Dual delivers reliable power to edge applications with its high power density, simple plug and play installation, and intuitive LCD display panel and user interface. To fit your preferences, you may effortlessly swivel the backlit LCD display and control panel 90 degrees. Modern real-time controls automatically alter fan speed based on load.

An emergency function assures the operation of emergency systems such as emergency lighting, fire detection and extinguishing systems, and alarms. When the main power fails, the inverter starts powering the loads gradually (Soft Start) to avoid overload. For medium-voltage coils, Sentinel Dual can be installed in transformer rooms. It can be used to power these coils.

Features & Benefits:

  • Output power capacity: 10000 Watts / 10kVA
  • Three-Phase Input, Single-Phase Output
  • 2 x 3U Rack Height
  • 3-minute backup time at full load
  • Runtime expandability with battery modules
  • Double conversion topology
  • Monitors and controls voltage and frequency
  • With a unity W=VA power factor, it protects more devices
  • Handles non-linear loads, perfect for Blade servers
  • Compact design, perfect for Edge applications
  • Versatile rackmount or freestanding tower format
  • ECO and Smart Active modes reduce power consumption
  • Emergency function
  • Low noise level
  • Fully configurable using software
  • 1 optional communication card slot
  • 1 optional parallel card slot
  • 1 USB port and 1 serial port
  • Three-year warranty
  • Output Connections - Terminal block, 2 IEC 320 C13, 3 IEC 320 C19
  • Input Connections - Terminal block

Please Note: Rack Rail Kit is sold separately. Two kits are required for this product.

Sentinel Dual SDU 10000 TM Specifications
INPUT
Dual Input No
Rated Power 10000 VA
Voltage 380 / 400 / 415 V (3W+N+PE) - 220 / 230 / 240 V (1W+N+PE)
Voltage Tolerance 400 ±20% - 230 ±20%
Frequency 50 / 60 Hz ±5%
BY PASS
Voltage Tolerance 180 / 264 V (selectable in ECO Mode or SMART ACTIVE Mode)
Frequency Tolerance Selected frequency ±5% (selectable by user)
OUTPUT & INVERTER OUTPUT
Rated Power 10000 VA / 10000 W
Crest Factor (Ipeak/Irms) 3 : 1
Waveform Sinusoidal
Frequency 50 / 60 Hz selectable
BATTERIES
Type VRLA AGM maintenance-free lead based
Typical Recharge Time 4-6 h
ENVIRONMENTAL
Operating Temperature 0 °C - +40 °C
Relative Humidity 5-95% non-condensing
Noise (at 1 m) <48 [dBA] (ECO Mode)
STANDARDS
Compliance European directives: LV 2014/35/EU, EMC 2014/30/EU; Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant. Classified in accordance with IEC 62040-3 VFI - SS - 111.
DATA
Weight 20+62 kg
Dimensions 2x (448x131x640) Tower - 2x (3Ux19”x640) Rack mm
Input phases 3/1
Output phases 1
