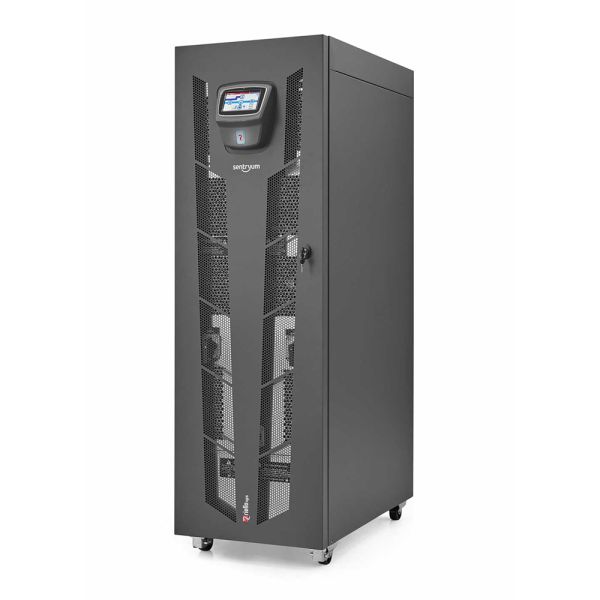

Introducing the Sentryum S3T series in the 80-120 kVA range, the ultimate solution for enterprises seeking unparalleled power protection for their expansive data centres and mission-critical systems. This series is the epitome of high-capacity UPS technology, delivering three-phase input and output solutions that provide a steadfast shield against power disturbances, ensuring your operations are uninterrupted and resilient.
Introducing the Sentryum S3T series in the 80-120 kVA range, the ultimate solution for enterprises seeking unparalleled power protection for their expansive data centres and mission-critical systems. This series is the epitome of high-capacity UPS technology, delivering three-phase input and output solutions that provide a steadfast shield against power disturbances, ensuring your operations are uninterrupted and resilient.
Crafted for efficiency and reliability, the 80-120 kVA range stands as a beacon of sustainable power protection, markedly reducing energy consumption and supporting your environmental goals. Its scalable architecture ensures that your power protection system can evolve in tandem with your business, offering a robust, future-proof solution that addresses both current and emerging power challenges.
The series is equipped with advanced connectivity and comprehensive communication capabilities, enabling seamless integration into existing networks and providing detailed insights into power status and system health. This ensures that businesses can act swiftly to maintain operational continuity, making the Sentryum S3T 80-120 kVA series an indispensable ally in safeguarding your critical assets against any power-related disruptions.
| Sentryum S3T 80 Specifications | ||
|---|---|---|
| INPUT | ||
| Rated Power | 80000 VA | |
| Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | 400 ±20% @ full load (for wider tolerance conditions apply) | |
| Frequency Tolerance | 40 - 72 Hz | |
| Power Factor | 0.99 | |
| BY PASS | ||
| Rated Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N) | |
| Rated Frequency | 50 or 60 Hz (selectable) | |
| Frequency Tolerance | ±5% (selectable) | |
| Number Phases | 3 + N | |
| OUTPUT & INVERTER OUTPUT | ||
| Rated Power | 80000 VA / 80000 W | |
| Output Current | 128 (bypass) A - 116 (inverter) A | |
| Crest Factor (Ipeak/Irms) | 3 : 1 | |
| Waveform | Sinusoidal | |
| Static Stability | ±0.5% | |
| Dynamic Stability | IEC EN 62040-3 class performance 1 non-linear load | |
| Frequency | 50 or 60 Hz | |
| Voltage Distortion | With Nonlinear Load | ≤1.5% |
| Voltage Distortion | With Linear Load | <1% |
| BATTERIES | ||
| Type | VRLA AGM/GEL/NiCd/Li-ion/Supercaps | |
| Type of Charging | One level, Two level, Cyclic recharge (selectable) | |
| ENVIRONMENTAL | ||
| Color | RAL 7016 | |
| Communication | UPS status led bar - Graphic touch screen display - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays | |
| Protection Rating | IP20 | |
| Efficiency | Up to 99% (Line-Interactive/Smart Active) | |
| Noise (at 1 m) | < 55 [dBA ±2] (SMART ACTIVE) | |
| Operating Temperature | 0 °C - +40 °C | |
| Relative Humidity | 5-95% non-condensing | |
| Standards | European directives: LV 2014/35/EU, EMC 2014/30/EU; Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant. Classified in accordance with IEC 62040-3 VFI - SS - 111. | |
| DATA | ||
| Weight (Exc. Batteries) | 172 kg | |
| Dimensions | 1600x500x830 mm | |
Sentryum Brochure & Datasheet
10-120 kVA
Estimated delivery cost for Riello S3T 80 Sentryum 80kVA 400V Online UPS, No Internal Batteries is £0.
