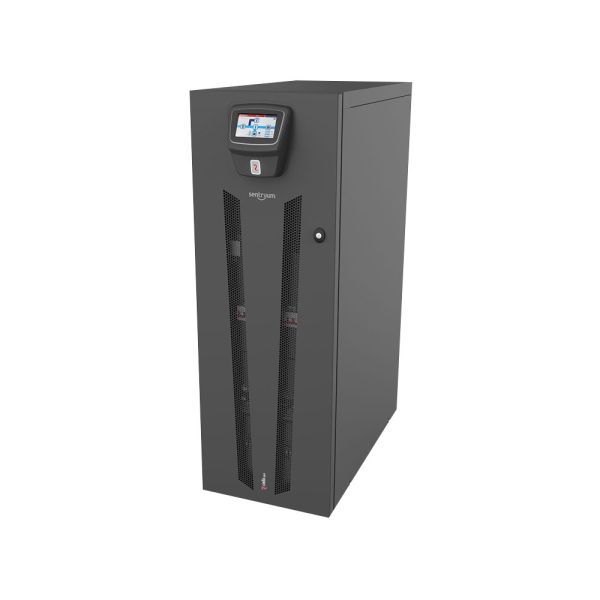

Delve into the Sentryum S3T Xtend 60 kVA series, where power protection meets scalability and efficiency, catering to the sophisticated demands of large-scale operations. This series is a testament to Riello UPS's commitment to advanced UPS solutions, providing robust three-phase input and output technology that ensures your large data centres, industrial processes, and mission-critical applications are safeguarded from power interruptions.
Delve into the Sentryum S3T Xtend 60 kVA series, where power protection meets scalability and efficiency, catering to the sophisticated demands of large-scale operations. This series is a testament to Riello UPS's commitment to advanced UPS solutions, providing robust three-phase input and output technology that ensures your large data centres, industrial processes, and mission-critical applications are safeguarded from power interruptions.
The Xtend 60 kVA stands out for its exceptional efficiency, significantly minimising energy consumption and promoting sustainability within your operations. This model is designed with scalability in mind, offering a solution that adapts to your growing power protection needs, ensuring a seamless expansion path without compromising on reliability or performance.
Featuring state-of-the-art connectivity and communication options, the Xtend 60 kVA series empowers businesses with comprehensive control over their power infrastructure, facilitating easy integration and offering real-time insights into system performance. It's a strategic choice for those seeking to future-proof their operations with a power protection solution that embodies efficiency, scalability, and environmental stewardship.
| Sentryum S3T XTD 60 Specifications | ||
|---|---|---|
| INPUT | ||
| Rated Power | 60000 VA | |
| Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | 400 ±20% @ full load (for wider tolerance conditions apply) | |
| Frequency Tolerance | 40 - 72 Hz | |
| Power Factor | 0.99 | |
| BY PASS | ||
| Rated Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N) | |
| Rated Frequency | 50 or 60 Hz (selectable) | |
| Frequency Tolerance | ±5% (selectable) | |
| Number Phases | 3 + N | |
| OUTPUT & INVERTER OUTPUT | ||
| Rated Power | 60000 VA / 60000 W | |
| Output Current | 95 (bypass) A - 86.6 (inverter) A | |
| Crest Factor (Ipeak/Irms) | 3 : 1 | |
| Waveform | Sinusoidal | |
| Static Stability | ±0.5% | |
| Dynamic Stability | EN 62040-3 class performance 1 non-linear load | |
| Frequency | 50 or 60 Hz | |
| Voltage Distortion | With Nonlinear Load | ≤1.5% |
| Voltage Distortion | With Linear Load | <1% |
| BATTERIES | ||
| Type | VRLA AGM/GEL/NiCd/Li-ion/Supercaps | |
| Type of Charging | One level, Two level, Cyclic recharge (selectable) | |
| ENVIRONMENTAL | ||
| Color | RAL 7016 | |
| Communication | UPS status led bar - Graphic touch screen display - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays | |
| Protection Rating | IP20 | |
| Efficiency | Up to 99% (Line-Interactive/Smart Active) | |
| Noise (at 1 m) | < 50 [dBA ±2] (SMART ACTIVE) | |
| Operating Temperature | 0 °C - +40 °C | |
| Relative Humidity | 5-95% non-condensing | |
| Standards | European directives: LV 2014/35/EU, EMC 2014/30/EU; Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant. Classified in accordance with IEC EN 62040-3 VFI - SS - 111. | |
| DATA | ||
| Weight (Exc. Batteries) | 130 kg | |
| Dimensions | 1320x440x840 mm | |
Sentryum Brochure & Datasheet
10-120 kVA
