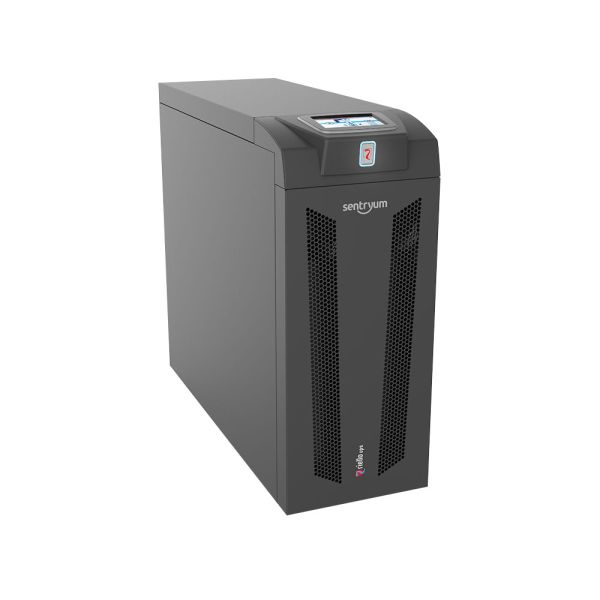

Riello S3M 10 CPT A0 Sentryum Compact 10kVA/10kW Online UPS, No Internal Batteries

ETA confirmed on order

ETA confirmed on order

SKU:
S3M10CPTA0
MPN:
S3M 10 CPT A0
£3,658.93 £3,049.11

The Sentryum S3M series provides the best combination of power availability, energy efficiency, and overall performance, resulting in lower installation and operating costs.

Standard Delivery  (1 - 7 Days)

The Sentryum S3M series provides the best combination of power availability, energy efficiency, and overall performance, resulting in lower installation and operating costs. It is the most recent Riello UPS development, resulting in a third-generation transformer-free UPS that was first introduced to the market over two decades ago. This ultimate solution has a unity output power factor (1 kVA = 1 kW) and online double conversion technology that meets VFI-SS-111 standards (as set out in standard IEC EN 62040-3). The Sentryum S3M series is a transformer-free uninterruptible power supply (UPS) with single-phase or three-phase input and single-phase output.

Sentryum is designed and built with cutting-edge technology and components. It employs advanced technologies such as DSP (digital signal processor), a dual-core microprocessor, three-level inverter circuits, and resonant control to provide maximum protection to critical loads while maintaining optimised energy savings. It is possible to reduce inverter output harmonic voltage distortion (1% at a resistive linear load and 1.5% at a non-linear load) and provide rapid response to all load variations with a unique control system, ensuring an outstanding sinewave under all conditions. Furthermore, Riello UPS's technological advances in digital control and power components help to reduce the grid's impact. Sentryum solves installation issues in systems where the power supply has limited power, the UPS is supported by a generator, or there are compatibility issues with loads that generate harmonic currents.

The Compact (CPT) cabinet frame is featured on the S3M 10 CPT A0 model, which is specifically designed to offer a compact but efficient solution for tailored applications. Thanks to the ultimate technologies used, this solution offers unrivalled power and autonomy in an extremely small space.

Features & Benefits:

  • Output power capacity: 10000 Watts / 10kVA
  • Compact (CPT) cabinet - 70 cm x 28 cm x 84 cm (H x W x D)
  • 0.25m² footprint
  • 1 internal battery string - space for 40 blocks
  • No internal batteries
  • Unity Power factor 1 kW = kVA
  • Parallel up to 8 UPS for redundancy
  • 96.5% online efficiency decreases energy waste
  • Optional battery extension packs extend runtime
  • Ideal for Blade servers with its ability to handle non-linear loads
  • Easily choose between Online, Eco, & Smart Active modes
  • Large 5" graphical touchscreen display & LED indicator
  • USB / RS232 / Contact interface / 2 x slot for communications interface
  • Single or three-phase input, single-phase output
  • 3-year warranty

INPUT

Rated power 10000 VA
Voltage 380 / 400 / 415 V three-phase + N - 220 / 230 / 240 V single-phase + N
Voltage tolerance 230 / 400 V ±20% @ full load (for wider tolerance conditions apply)
Frequency tolerance 40 - 72 Hz
Power factor 0.99
BY PASS
Rated voltage 220 / 230 / 240 V single-phase + N
Voltage tolerance From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N)
Rated frequency 50 or 60 Hz (selectable)
Frequency tolerance ±5% (selectable)
Number phases 1 + N

OUTPUT and INVERTER OUTPUT

Rated power 10000 VA
Active power 10000 W
Output current 48 (bypass) A - 43 (inverter) A
Number phases 1 + N
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinusoidal
Static stability ±0.5%
Dynamic stability EN 62040-3 class performance 1 non-linear load
Frequency 50 or 60 Hz
Voltage distortion with non-linear load ≤1.5%
Voltage distortion with linear load <1%

BATTERIES

Type VRLA AGM/GEL/NiCd/Li-ion/Supercaps
Type of charging One level, Two level, Cyclic recharge (selectable)

ENVIRONMENTAL

Color RAL 7016 Anthracite grey
Communication UPS status led bar - Graphic touch screen diplay - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays
Protection rating IP20
Line-Interactive/Smart Active efficiency Up to 99%
Noise (at 1 m) <40 [dBA ±2] (SMART ACTIVE)
Remote signals voltage free contacts
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111

DATA

Weight 48 kg (Excluding Batteries)
Dimensions (h w d) 700x280x840 mm
