Available to Order

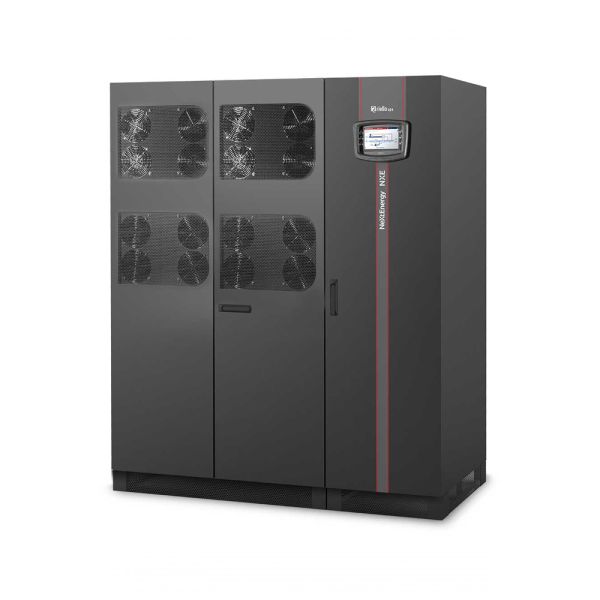

Embrace the future of power continuity with Riello's NextEnergy series. This cutting-edge UPS solution, available from UPSBuyer, is tailored for the demanding needs of Data Centres, communication networks, and sensitive industrial applications. Featuring transformer-free double conversion technology VFI SS 111, it assures maximal efficiency and a unity power factor.
NextEnergy stands ready to scale with your enterprise, offering peak demand management, hot scalability, and smart energy consumption to drive down total cost of ownership while maintaining environmental responsibility. It's the ideal power safeguard for any IT application where continuity and protection are paramount.
Embrace the future of power continuity with Riello's NextEnergy series. This cutting-edge UPS solution, available from UPSBuyer, is tailored for the demanding needs of Data Centres, communication networks, and sensitive industrial applications. Featuring transformer-free double conversion technology VFI SS 111, it assures maximal efficiency and a unity power factor.
NextEnergy stands ready to scale with your enterprise, offering peak demand management, hot scalability, and smart energy consumption to drive down total cost of ownership while maintaining environmental responsibility. It's the ideal power safeguard for any IT application where continuity and protection are paramount.
| NXE 400 Specifications | ||
|---|---|---|
| Rated power | 500000 VA | |
| Voltage | 380 / 400 / 415 V three-phase | |
| Voltage tolerance | 400 V ±20% @ full load | |
| Frequency | 40 - 70 Hz | |
| Power factor | 0.99 | |
| Current distorsion | <3% | |
| Soft start | 0 - 100% in 120 sec. (selectable) | |
| BY PASS | ||
| Rated voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage tolerance | ±20% (selectable from ±5% to ±25%) | |
| Rated frequency | 50 or 60 Hz (selectable) | |
| Frequency tolerance | ±2% (selectable from ±1% to ±5%) | |
| Rated current | 722 A | |
| Back-feed protection | yes | |
| Overload capacity Inx10ms | 13 | |
| OUTPUT and INVERTER OUTPUT | ||
| Rated power | 500000 VA | |
| Active power | 500000 W | |
| Output Voltage | 380 / 400 / 415 V three-phase + N (selectable) | |
| Waveform | Sinewave | |
| Static stability | ±1% | |
| Dynamic stability | ±5% in 10 msec. | |
| Frequency | 50 or 60 Hz (selectable) | |
| Voltage distortion with non-linear load | <3% | |
| Voltage distortion with linear load | <1% | |
| Overload | 110% for 60 minutes, 125% for 2 minutes, 150% for 20 seconds | |
| Short-circuit current | 2.5 In for 100 msec, + 2.0 In for 900 msec. | |
| AC Voltage Regulation: Battery Mode | ±1% | |
| Frequency Range: Synchronized | ±2% selectable | |
| RECTIFIER OUTPUT | ||
| Ripple | 0 | |
| BATTERIES | ||
| Type | VRLA AGM / GEL, NiCd, Supercaps, Li-ion, Flywheels | |
| Maximum recharge current | -0.11% x V x °C | |
| ENVIRONMENTAL | ||
| Color | Dark grey RAL 7016 | |
| Remote controls | EPO, bypass battery charge block (configurable) | |
| Communication | USB + Dry contacts + 2 slots for communications interface | |
| Safety compliance | EN 62040-1:2019; EN 62040-1/AC:2009; | |
| EMC compliance | EN 62040-2:2018 | |
| Protection rating | IP20 (other on request) | |
| Cooling (type) | Forced air via speed controlled internal fans | |
| AC/AC efficiency | up to 97% (ON LINE Mode) | |
| Line-Interactive/Smart Active efficiency | up to 99% | |
| Noise (at 1 m) | 65 [dBA] (50% load), 73 [dBA] (100% load) | |
| Operating temperature | 0 °C - +40 °C | |
| Relative humidity | 5-95% non-condensing | |
| DATA | ||
| Weight | 1300 kg | |
| Dimensions (h w d) | 1900x1600x850 mm | |
NextEnergy
250-800 kVA
