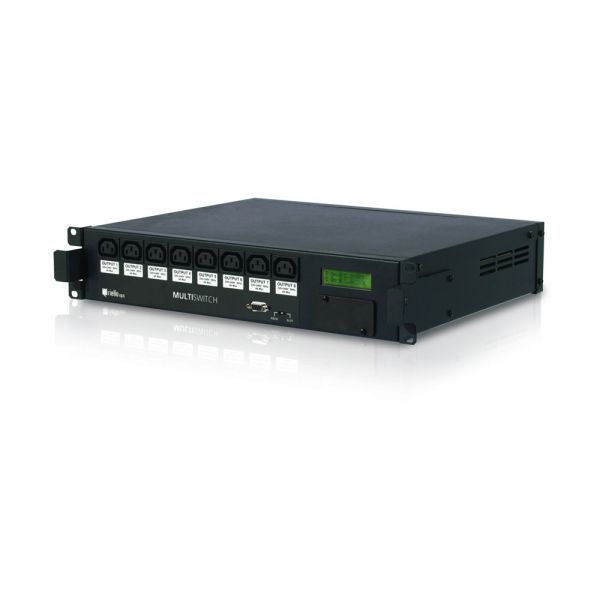

Riello Multi Switch ATS 16 Amp - Dual Inputs & 8 Way Remote Distribution

The Multi Switch (MSW) is a 16A automated transfer switch that provides redundant power to equipment connected to two alternating currents (AC) input sources. If the primary input is interrupted, the load immediately switches to the secondary.

The MSW distributes power from two separate inputs. These power sources can be two distinct main supplies, two separate uninterruptible power supplies (UPSs of varying size or kind), or a combination of the two.

In the event of a load failure, MSW automatically disconnects the sockets attached to the load. If either of the two input sources exceeds tolerance criteria, it immediately switches to the second power source. When the sources are in phase, switching occurs almost instantly (8 msec). Even if they are not in phase, the transfer is quick (21 msec).

Features & Benefits:

• 16 A automatic transfer switch
• 2U rack height
• For installations with 2 separate AC input sources (2 mains, 2 UPS, or a combination)
• Protects multiple devices thanks to 8 IEC connector sockets
• Automatically transfers from primary to secondary source
• Designed for installation in 19-inch cabinets
• RS232 communication port
• Slot for optional communication card enables LAN connection and remote management
• Output Connections - 8 IEC 320 10 A
• Input Connection - 2 IEC 320 (16 A)
