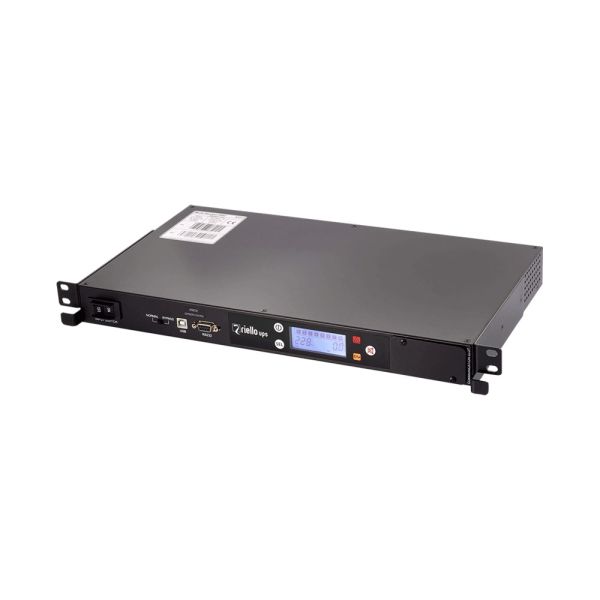

Riello Multi Socket PDU (MDU) Automatic Transfer Switch

The Riello UPS Multi Socket PDU is designed to distribute alternating current power from a single source to eight outputs while providing comprehensive load monitoring and local or remote ON/OFF switching control of individual outlets. It has the best power distribution in its class, which makes it easier for data centre and IT managers to monitor and control their rack settings.

The LCD display shows the state of each output (ON/OFF), the input voltage and current, the current on each output, and any alarm codes that are present.

The state of the eight outputs is shown by eight icons at the top of the display: if the icon is on, the relative output is powered; if the icon is off, the related output is not powered; and if the icon is flashing, the relative output is overloaded.

Features & Benefits:

• Input current up to 16 A
• Maximum output current for a single socket: 4 A
• Versatile to use
• 8 programmable outputs
• LCD display
• The current threshold for outputs settable by the user
• Voltage and current threshold for input settable by the user
• USB & RS232 communication ports
• Slot for optional communication card
• Output Connections - 8 IEC-320 C13
• Input Connection - 1 IEC 320 (16 A)
