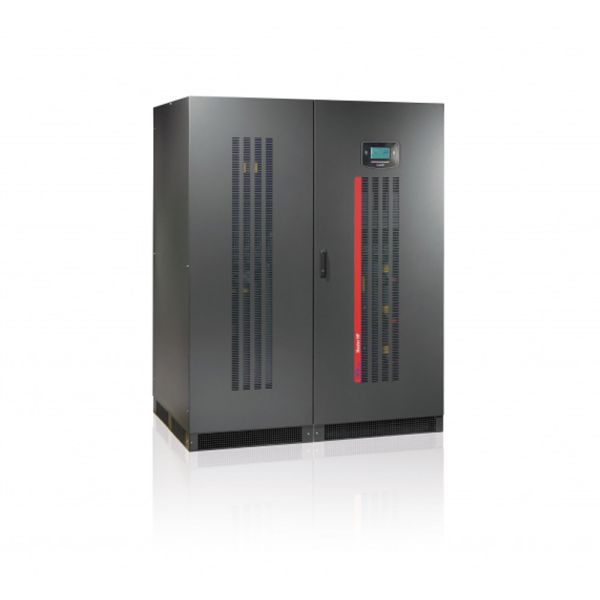

Riello MHT 300 NBP Master HP 300kVA 400V Online UPS with No Static Bypass

Available to Order

SKU:
MHT300NBP
MPN:
MHT 300 NBP
Request Quote & Leadtime
The Master HP UPS series with three-phase input/output and capacities from 200 to 600 kVA offer robust power management without a static bypass. Designed for seamless integration, they maintain high-efficiency operation with a 0.9 power factor, ensuring consistent power handling. The range supports parallel capacity expansion, making it ideal for data centres, IT infrastructures, and industrial applications. With eco-mode and zero-impact technology, these units minimise environmental impact while ensuring power continuity. Available through UPSBuyer, they combine resilience with sustainability for demanding setups.
Standard Delivery  (1 - 7 Days)

The Master HP UPS series with three-phase input/output and capacities from 200 to 600 kVA offer robust power management without a static bypass. Designed for seamless integration, they maintain high-efficiency operation with a 0.9 power factor, ensuring consistent power handling. The range supports parallel capacity expansion, making it ideal for data centres, IT infrastructures, and industrial applications. With eco-mode and zero-impact technology, these units minimise environmental impact while ensuring power continuity. Available through UPSBuyer, they combine resilience with sustainability for demanding setups.

Features & Benefits

  • Formidable Capacity: Provides 300kVA / 270kW at a 0.9 power factor, designed to handle significant energy requirements.
  • Parallel Configurations: Supports distributed and centralised parallel configurations for up to 7 units, offering redundancy and system expansion options.
  • Zero Impact Source: IGBT rectifier minimises input current distortion, ensuring seamless integration into the power supply system.
  • Battery Management: Includes features like various recharging methods, deep discharge protection, and temperature-based voltage compensation.
  • Comprehensive Protection: Galvanic isolation provides electronic and physical protection for the battery and critical loads.
  • Smart Grid Ready: Can integrate into energy management systems, optimising operations and ensuring effective power management.

MHT 300 Specifications
INPUT
Rated power 300000 VA
Voltage 380 / 400 / 415 V three-phase
Voltage tolerance 400 V ±20% @ full load (for wider tolerance conditions apply)
Frequency 45 - 65 Hz
Frequency tolerance ±2% (selectable from ±1% to ±5% from front panel)
Power factor >0.99
Current distorsion <3%
Soft start 0 - 100% in 120 sec. (selectable)
BY PASS
Rated voltage 380 / 400 / 415 V three-phase + N
Rated frequency 50 or 60 Hz (selectable)
OUTPUT and INVERTER OUTPUT
Rated power 300000 VA
Active power 270000 W
Crest factor (Ipeak/Irms) 3 : 1
Dynamic stability ±5% in 10 ms
Frequency 50 or 60 Hz (selectable)
Voltage distortion with non-linear load <3%
Voltage distortion with linear load <1%
Frequency stability 0.05%
Overload 110% for 60 min.; 125% for 10 min.; 150% for 1 min.
BATTERIES
Type VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels
ENVIRONMENTAL
Color Dark grey RAL 7035
Remote controls ESD and bypass (configurable)
Protection rating IP20 (others on request)
Noise (at 1 m) 70 - 72 [dBA]
Remote signals Dry contacts (configurable)
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111
DATA
Weight 1500 kg
Dimensions (h w d) 1500x1000x1900 mm

Master MP
100-600 kVA
