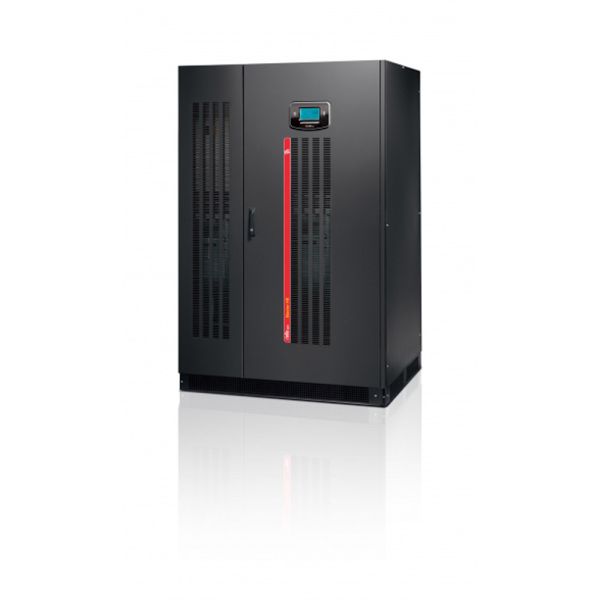

The Master HP Power Absorber three-phase input/output UPS series (100-400kVA) offers robust power management solutions designed for high-efficiency operation and power absorption capabilities. The series includes zero-impact technology, ensuring minimal environmental impact, and supports parallel capacity expansion, making it ideal for data centres, IT infrastructures, and industrial applications. Available through UPSBuyer, these units provide reliability and sustainability for demanding setups, with advanced energy management features, including eco-mode and DC filters. This comprehensive solution ensures consistent power continuity and efficient load handling across a variety of applications.
| MHT 200 Specifications | ||
|---|---|---|
| INPUT | ||
| Rated power | 200000 VA | |
| Voltage | 380 / 400 / 415 V three-phase | |
| Voltage tolerance | 400 V ±20% @ full load (for wider tolerance conditions apply) | |
| Frequency | 45 - 65 Hz | |
| Frequency tolerance | ±2% (selectable from ±1% to ±5% from front panel) | |
| Power factor | >0.99 | |
| Current distorsion | <3% | |
| Soft start | 0 - 100% in 120 sec. (selectable) | |
| BY PASS | ||
| Rated voltage | 380 / 400 / 415 V three-phase + N | |
| Rated frequency | 50 or 60 Hz (selectable) | |
| OUTPUT and INVERTER OUTPUT | ||
| Rated power | 200000 VA | |
| Active power | 180000 W | |
| Crest factor (Ipeak/Irms) | 3 : 1 | |
| Dynamic stability | ±5% in 10 ms | |
| Frequency | 50 or 60 Hz (selectable) | |
| Voltage distortion with non-linear load | <3% | |
| Voltage distortion with linear load | <1% | |
| Frequency stability | 0.05% | |
| Overload | 110% for 60 min.; 125% for 10 min.; 150% for 1 min. | |
| BATTERIES | ||
| Type | VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels | |
| ENVIRONMENTAL | ||
| Color | Dark grey RAL 7035 | |
| Remote controls | ESD and bypass (configurable) | |
| Protection rating | IP20 (others on request) | |
| Noise (at 1 m) | 63 - 68 [dBA] | |
| Remote signals | Dry contacts (configurable) | |
| Operating temperature | 0 °C - +40 °C | |
| Relative humidity | 5-95% non-condensing | |
| Standards | European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 | |
| DATA | ||
| Weight | 970 kg | |
| Dimensions (h w d) | 1900x1000x850 mm | |
