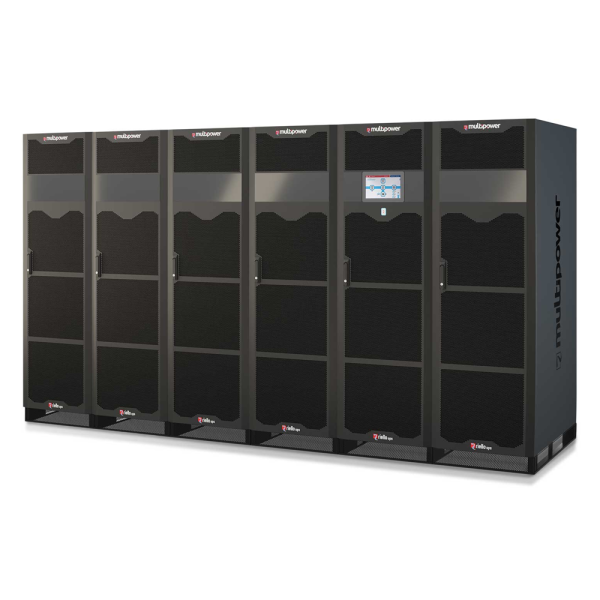

Discover the Riello M2S 1600 PCS, a state-of-the-art power cabinet from the MultiPower 2 series, offered by UPSBuyer. This cabinet is meticulously designed to accommodate the most sophisticated power demands with in-built switchgear for optimal control and redundancy.
The M2S 1600 PCS stands out with its full suite of switches, including main input, bypass, manual bypass, and output switches. These additions ensure that you have full control over power management and distribution, crucial for complex, high-demand environments.
Discover the Riello M2S 1600 PCS, a state-of-the-art power cabinet from the MultiPower 2 series, offered by UPSBuyer. This cabinet is meticulously designed to accommodate the most sophisticated power demands with in-built switchgear for optimal control and redundancy.
The M2S 1600 PCS stands out with its full suite of switches, including main input, bypass, manual bypass, and output switches. These additions ensure that you have full control over power management and distribution, crucial for complex, high-demand environments.
| M2S 1600 PCS Specifications | ||
|---|---|---|
| OVERALL SPECIFICATION | ||
| Cabinet type | M2S 1600 PCS Power Cabinet | |
| Power Module nominal power (Named PM) | 67 kW | |
| Solution nominal Power | 1600 kW | |
| Output power factor [pf] | 1 | |
| Parallelable (up to) | 4 | |
| Cabinet layout description | 24 x MP2 67 PM BLUE or 24 x MP2 67 PM | |
| INPUT | ||
| Rated power | 1600000 VA | |
| Voltage | 380 / 400 / 415 V three-phase + N | |
| Frequency tolerance | 40 - 72 Hz | |
| Power factor | 0.99 | |
| BY PASS | ||
| Rated voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250 – 264) referring to neutral (Ph-N) | |
| Rated frequency | 50 or 60 Hz (selectable) | |
| Frequency tolerance | ± 5% (selectable) | |
| Number phases | 3 + N | |
| OUTPUT and INVERTER OUTPUT | ||
| Rated power | 1600000 VA | |
| Active power | 1600000 W | |
| Number phases | 3 + N | |
| Output Voltage | 380 / 400 / 415 V three-phase + N | |
| Waveform | Sinewave | |
| Dynamic stability | EN62040-3 class performance 1 non linear load | |
| Frequency | 50 or 60 Hz | |
| Overload | 125% for 10 min.; 150% for 1 min. | |
| BATTERIES | ||
| Type | VRLA AGM / GEL; NiCd; Li-Ion; Supercaps | |
| Type of charging | One level, Two level, Cyclic recharge (selectable) | |
| ENVIRONMENTAL | ||
| Color | RAL 9005 | |
| Communication | 10” Graphic touch screen display – UPS Status led bar – 3 slots for communication interface, 10 input and 8 output signals | |
| Protection rating | IP20 finger proof (either with cabinet doors open or close) | |
| AC/AC efficiency | Up to 98.1% with MP2 67 PM BLUE (ON LINE mode) | |
| Operating temperature | 0 °C - +40 °C | |
| Relative humidity | 5-95% non condensing | |
| Standards | European directives: LV 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive & Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 | |
| DATA | ||
| Weight including PMs to reach nominal power | 2791 kg | |
| Dimensions (h w d) | 2000 x 3600 x 1025 mm | |
| Input phases | 3 | |
| Output phases | 3 | |
