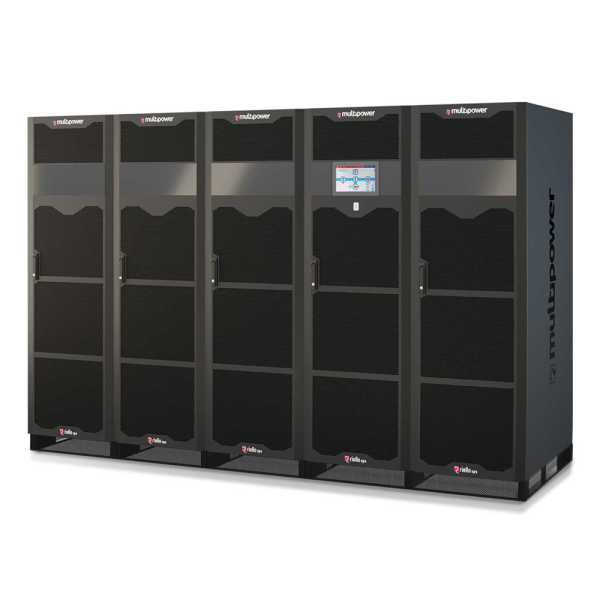

Presenting the Riello M2S 1250 PCS, a sophisticated and fully equipped component of the MultiPower 2 series, proudly supplied by UPSBuyer. This powerful cabinet is tailor made for intricate systems demanding high capacity and comprehensive control features.
The M2S 1250 PCS enriches the MultiPower 2 family with its integrated switchgear, offering a ready-to-deploy solution that includes main input, bypass, manual bypass, and output switches, complementing its massive 1250 kW capacity.
Presenting the Riello M2S 1250 PCS, a sophisticated and fully equipped component of the MultiPower 2 series, proudly supplied by UPSBuyer. This powerful cabinet is tailor made for intricate systems demanding high capacity and comprehensive control features.
The M2S 1250 PCS enriches the MultiPower 2 family with its integrated switchgear, offering a ready-to-deploy solution that includes main input, bypass, manual bypass, and output switches, complementing its massive 1250 kW capacity.
| M2S 1250 PCS Specifications | ||
|---|---|---|
| OVERALL SPECIFICATION | ||
| Cabinet type | M2S 1250 PCS Power Cabinet | |
| Power Module nominal power (Named PM) | 67 kW | |
| Solution nominal Power | 1250 kW | |
| Output power factor [pf] | 1 | |
| Parallelable (up to) | 4 | |
| Cabinet layout description | 19 x MP2 67 PM BLUE or 19 x MP2 67 PM | |
| INPUT | ||
| Rated power | 1250000 VA | |
| Voltage | 380 / 400 / 415 V three-phase + N | |
| Frequency tolerance | 40 - 72 Hz | |
| Power factor | 0.99 | |
| BY PASS | ||
| Rated voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250 – 264) referring to neutral (Ph-N) | |
| Rated frequency | 50 or 60 Hz (selectable) | |
| Frequency tolerance | ± 5% (selectable) | |
| Number phases | 3 + N | |
| OUTPUT and INVERTER OUTPUT | ||
| Rated power | 1250000 VA | |
| Active power | 1250000 W | |
| Number phases | 3 + N | |
| Output Voltage | 380 / 400 / 415 V three-phase + N | |
| Waveform | Sinewave | |
| Dynamic stability | EN62040-3 class performance 1 non linear load | |
| Frequency | 50 or 60 Hz | |
| Overload | 125% for 10 min.; 150% for 1 min. | |
| BATTERIES | ||
| Type | VRLA AGM / GEL; NiCd; Li-Ion; Supercaps | |
| Type of charging | One level, Two level, Cyclic recharge (selectable) | |
| ENVIRONMENTAL | ||
| Color | RAL 9005 | |
| Communication | 10” Graphic touch screen display – UPS Status led bar – 3 slots for communication interface, 10 input and 8 output signals | |
| Protection rating | IP20 finger proof (either with cabinet doors open or close) | |
| AC/AC efficiency | Up to 98.1% with MP2 67 PM BLUE (ON LINE mode) | |
| Operating temperature | 0 °C - +40 °C | |
| Relative humidity | 5-95% non condensing | |
| Standards | European directives: LV 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive & Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 | |
| DATA | ||
| Weight including PMs to reach nominal power | 2301 kg | |
| Dimensions (h w d) | 2000 x 3000 x 1025 mm | |
| Input phases | 3 | |
| Output phases | 3 | |
