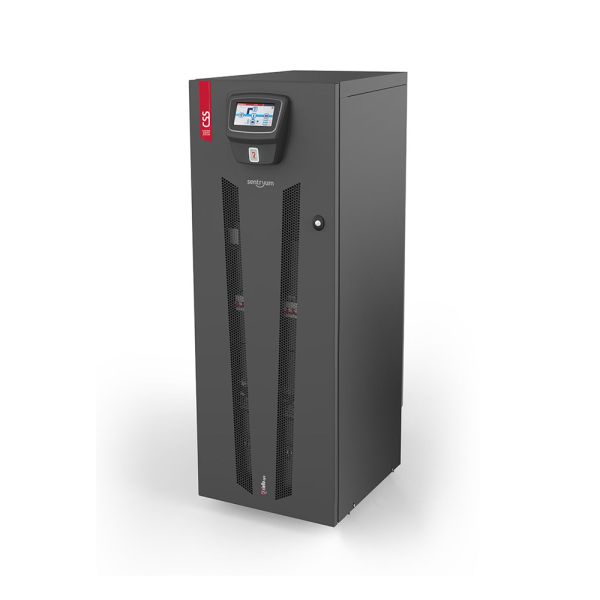

Presenting the CSS Sentryum CBT from UPSBuyer, a premier Riello product tailored for sophisticated emergency power requirements. Ideal for UK organisations that demand reliability in critical environments, this system offers robust backup for emergency lighting and safety mechanisms. The Sentryum CBT stands out with its advanced battery technology and modular design, providing flexible scalability and exceptional performance. Its compact build ensures it fits effortlessly in restricted spaces, making it perfect for maintaining essential operations without spatial compromise. Secure, efficient, and compliant, the Sentryum CBT is an essential upgrade for any safety-focused facility.
Presenting the CSS Sentryum CBT from UPSBuyer, a premier Riello product tailored for sophisticated emergency power requirements. Ideal for UK organisations that demand reliability in critical environments, this system offers robust backup for emergency lighting and safety mechanisms. The Sentryum CBT stands out with its advanced battery technology and modular design, providing flexible scalability and exceptional performance. Its compact build ensures it fits effortlessly in restricted spaces, making it perfect for maintaining essential operations without spatial compromise. Secure, efficient, and compliant, the Sentryum CBT is an essential upgrade for any safety-focused facility.
| CSS Sentryum CSS CBT 15 Specifications | ||
|---|---|---|
| INPUT | ||
| Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | 400 ±20% @ full load (for wider tolerance conditions apply) | |
| Frequency Tolerance | 40 - 72 Hz | |
| Power Factor | ≥0.99 | |
| BY PASS | ||
| Rated Voltage | 380 / 400 / 415 V three-phase + N | |
| Voltage Tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N) | |
| Rated Frequency | 50 or 60 Hz | |
| Frequency Tolerance | ±5% (selectable) | |
| Number Phases | 3 + N | |
| OUTPUT & INVERTER OUTPUT | ||
| Rated Power | 15000 VA / 15000 W | |
| Power according with EN 50171 | 12000 VA / W | |
| Rated Voltage | 380 / 400 / 415 V three-phase + N | |
| Number Phases | 3 + N | |
| Crest Factor (Ipeak/Irms) | 3 : 1 | |
| Waveform | Sinusoidal | |
| Static Stability | ±0.5% | |
| Dynamic Stability | EN 62040-3 class performance 1 distorting load | |
| Frequency | 50 or 60 Hz (selectable) | |
| Voltage Distortion with Nonlinear Load | ≤1.5% | |
| Voltage Distortion with Linear Load | <1% | |
| BATTERIES | ||
| Type | VRLA - 10 YEARS expected lifespan | |
| Type of Charging | One-level, Two-level, Cyclical recharge (adjustable) | |
| ENVIRONMENTAL | ||
| Color | RAL 7016 Anthracite grey | |
| Communication | Status led – Color graphic touch screen display - 2 communication interface slots – USB - RS232 - 4 relay outputs - 5 opto-isolated input | |
| Protection Rating | IP20 | |
| Efficiency | Up to 99% (Line-Interactive/Smart Active) | |
| Noise (at 1 m) | <40 [dBA ±2] (SMART ACTIVE) | |
| Operating Temperature | 0 °C - +40 °C | |
| Relative Humidity | 5-95% non-condensing | |
| Standards | EN 50171 - European directives: LV 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 | |
| DATA | ||
| Weight | 105 kg | |
| Dimensions (h w d) | 1320x440x840 mm | |
Estimated delivery cost for Riello CSS CBT 15 A0 12kVA 400V Central Power Supply compliant with EN 50171 (1hr Runtime) is £0.
