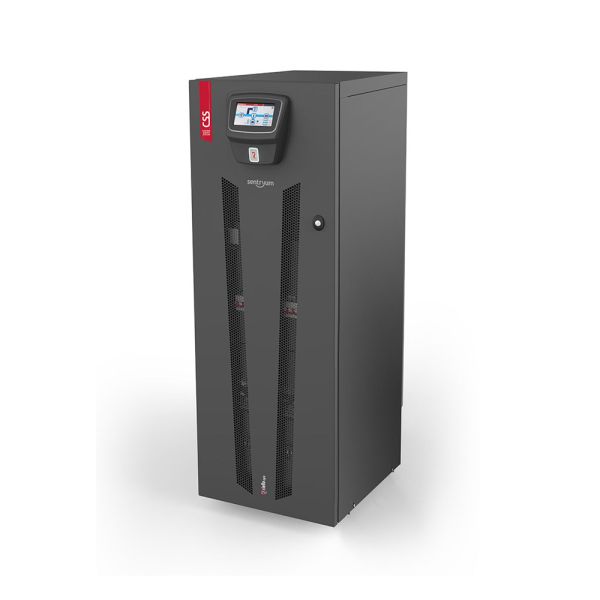

Explore the CSS Sentryum CBM at UPSBuyer, Riello's bespoke solution for crucial power backup in compact spaces. Designed for UK businesses seeking a reliable emergency power source, this system excels in both versatility and efficiency, providing seamless integration with emergency lighting and safety systems. The Sentryum CBM model is renowned for its high energy density and minimal footprint, making it ideal for environments where space is at a premium, but safety cannot be compromised. With advanced battery care technology and a flexible configuration, it ensures that your critical systems are protected against power interruptions with utmost reliability.
Explore the CSS Sentryum CBM at UPSBuyer, Riello's bespoke solution for crucial power backup in compact spaces. Designed for UK businesses seeking a reliable emergency power source, this system excels in both versatility and efficiency, providing seamless integration with emergency lighting and safety systems. The Sentryum CBM model is renowned for its high energy density and minimal footprint, making it ideal for environments where space is at a premium, but safety cannot be compromised. With advanced battery care technology and a flexible configuration, it ensures that your critical systems are protected against power interruptions with utmost reliability.
| CSS CBM 10 Specifications | ||
|---|---|---|
| INPUT | ||
| Voltage | 380 / 400 / 415 V three-phase + N or 220 / 230 / 240 V single-phase + N | |
| Voltage Tolerance | 230 / 400 V ±20% @ full load (for wider tolerance conditions apply) | |
| Frequency Tolerance | 40 - 72 Hz | |
| Power Factor | ≥0.99 | |
| BY PASS | ||
| Rated Voltage | 220 / 230 / 240 V single-phase + N | |
| Voltage Tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) | |
| Rated Frequency | 50 or 60 Hz | |
| Frequency Tolerance | ±5% (selectable) | |
| Number Phases | 1 + N | |
| OUTPUT & INVERTER OUTPUT | ||
| Rated Power | 10000 VA / 10000 W | |
| Power according with EN 50171 | 8000 VA / W | |
| Rated Voltage | 220 / 230 / 240 V single-phase + N | |
| Number Phases | 1 + N | |
| Crest Factor (Ipeak/Irms) | 3 : 1 | |
| Waveform | Sinusoidal | |
| Static Stability | ±0.5% | |
| Dynamic Stability | EN 62040-3 class performance 1 non-linear load | |
| Frequency | 50 or 60 Hz (selectable) | |
| Voltage Distortion | With Nonlinear Load | ≤1.5% |
| Voltage Distortion | With Linear Load | <1% |
| BATTERIES | ||
| Type | VRLA - 10 YEARS expected lifespan | |
| Type of Charging | One level, Two level, Cyclic recharge (selectable) | |
| ENVIRONMENTAL | ||
| Color | RAL 7016 Anthracite grey | |
| Communication | Status led – Color graphic touch screen display - 2 communication interface slots – USB -RS232 - 4 relay outputs - 5 opto-isolated input | |
| Protection Rating | IP20 | |
| Efficiency | Up to 99% (Line-Interactive/Smart Active) | |
| Noise (at 1 m) | <40 [dBA ±2] (SMART ACTIVE) | |
| Operating Temperature | 0 °C - +40 °C | |
| Relative Humidity | 5-95% non-condensing | |
| Standards | EN 50171 - European directives: LV 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 | |
| DATA | ||
| Weight | 103 kg | |
| Dimensions (h w d) | 1320x440x840 mm | |
Estimated delivery cost for Riello CSS CBM 10 A0 8kVA 230V Central Power Supply compliant with EN 50171 (1-3hr Runtime) is £0.
