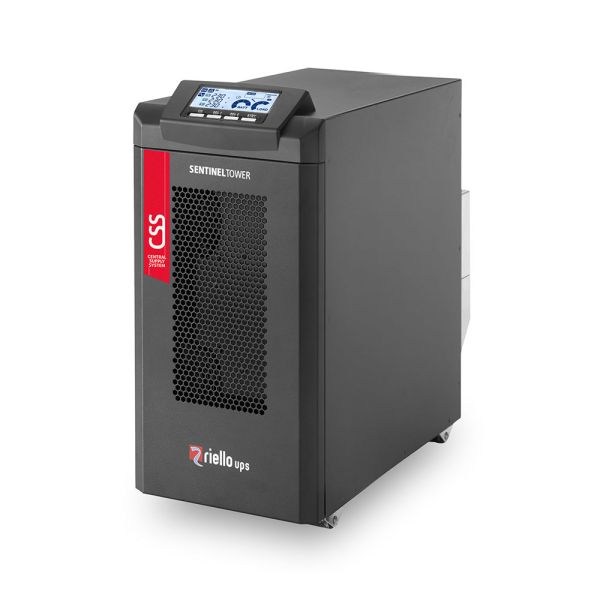

The CSS Sentinel Tower, available at UPSBuyer, epitomises resilience and compliance for UK businesses requiring dependable emergency power solutions. Meticulously crafted to support emergency lighting, security, and fire systems, it meets the rigorous EN 50171 standards for Central Power Supply Systems. Offering a streamlined tower design, the Sentinel Tower integrates seamlessly with your existing infrastructure, while its state-of-the-art battery management system ensures durable and long-lasting performance. Prioritise safety with the Sentinel Tower's advanced technology, promising unwavering operation and peace of mind during any power outage.
The CSS Sentinel Tower, available at UPSBuyer, epitomises resilience and compliance for UK businesses requiring dependable emergency power solutions. Meticulously crafted to support emergency lighting, security, and fire systems, it meets the rigorous EN 50171 standards for Central Power Supply Systems. Offering a streamlined tower design, the Sentinel Tower integrates seamlessly with your existing infrastructure, while its state-of-the-art battery management system ensures durable and long-lasting performance. Prioritise safety with the Sentinel Tower's advanced technology, promising unwavering operation and peace of mind during any power outage.
| CSS CAM 3 Specifications | ||
|---|---|---|
| INPUT | ||
| Voltage | 220 / 230 / 240 V single-phase + N | |
| Voltage Tolerance | 230 V ±20% at full load (for wider tolerances additional conditions apply) | |
| Frequency Tolerance | 40 - 72 Hz | |
| Power Factor | ≥0.99 | |
| BY PASS | ||
| Rated Voltage | 220 / 230 / 240 V single-phase + N | |
| Voltage Tolerance | 180 - 264 V (selectable) | |
| Rated Frequency | 50 / 60 Hz | |
| Frequency Tolerance | ±5% (selectable) | |
| Number Phases | 1 + N | |
| OUTPUT & INVERTER OUTPUT | ||
| Rated Power | 3000 VA / W | |
| Power according with EN 50171 | 2500 VA / W | |
| Output Voltage | 220 / 230 / 240 V single-phase + N | |
| Crest Factor (Ipeak/Irms) | 3 : 1 | |
| Waveform | Sinusoidal | |
| Frequency | 50 / 60 Hz (selectable) | |
| Voltage Distortion with Nonlinear Load | ≤3% | |
| Voltage Distortion with Linear Load | ≤1% | |
| BATTERIES | ||
| Type | VRLA - 10 YEARS expected lifespan | |
| Built-in Batteries | No | |
| Maximum Recharge Current | 6 A | |
| ENVIRONMENTAL | ||
| Color | Black RAL 9005 | |
| Communication | LCD display / slot for communication interface / USB / REPO / 1 programmable input / 4 output relays | |
| Accessories Provided | USB cable | |
| Surge Capability | 1 VDR x 300 J | |
| Protections | Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery | |
| Noise (at 1 m) | <48 dBA | |
| Operating Temperature | 0 °C - +40 °C | |
| Relative Humidity | 5-95% non-condensing | |
| Output Sockets | Terminal block + 2 IEC 320 C13 | |
| Standards | EN50171 - European directives: LV 2014/35/EU, EMC 2014/30/EU; Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant. Classified in accordance with IEC 62040-3 VFI - SS - 111. | |
| DATA | ||
| Weight | 25 kg | |
| Dimensions (h w d) | 500x250x698 mm | |
